Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
When performing this procedure the latch and handle bracket assembly Must be removed from the vehicle to replace the door lock cylinder.

Front Side Door Latch (2) - Remove - Front Side Door Latch Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cylinder Rod (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

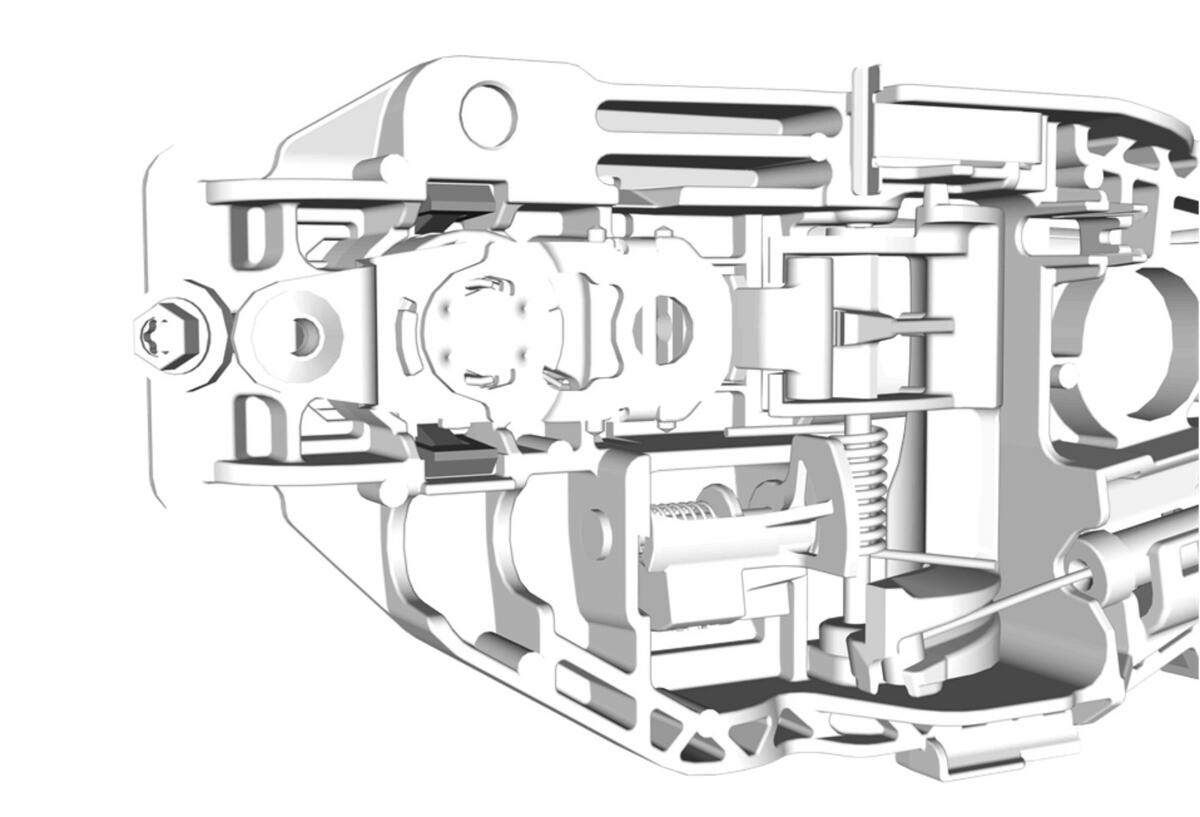

From the back side of the outside handle bracket, use a suitable tool, push up and down on the lock cylinder retainers (1) releasing the retainer from the cylinder (2).
Courtesy of GENERAL MOTORS COMPANY

With the lock cylinder retainer (1) removed, pull the lock cylinder (2) rearward releasing it from the handle bracket (3).
