Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Pull the rear side door outside handle bracket (3) down to the inside door opening.

Courtesy of GENERAL MOTORS COMPANY

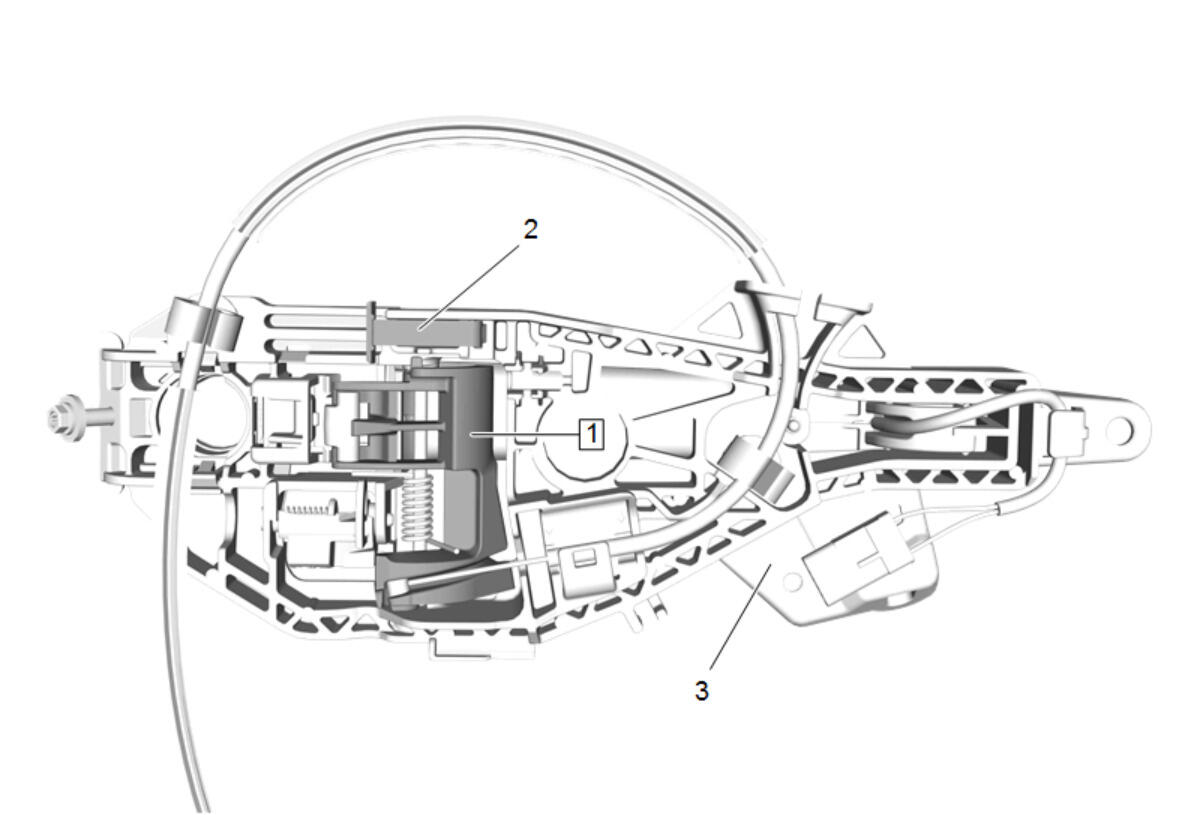

Set the rear side door outside handle bracket counter balance (1) as follows:

1. The outside door handle Can Not be installed until the counter balance (1) is reset.
2. Grasp the front side door outside handle bracket (3) with one hand.
3. From the back side of the counter balance (1) push forward on the counter balance until it can be held in place using the bracket clip (2).

Courtesy of GENERAL MOTORS COMPANY

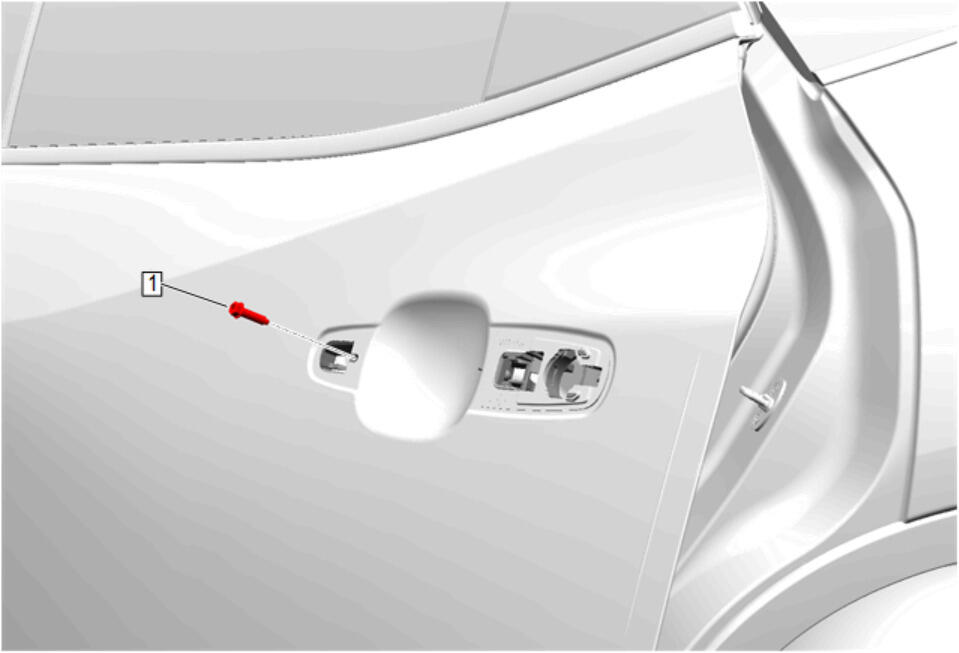

Rear Side Door Outside Handle Bracket Screw (1) - Install and tighten 4.7 N.m (42 lb in)

Courtesy of GENERAL MOTORS COMPANY

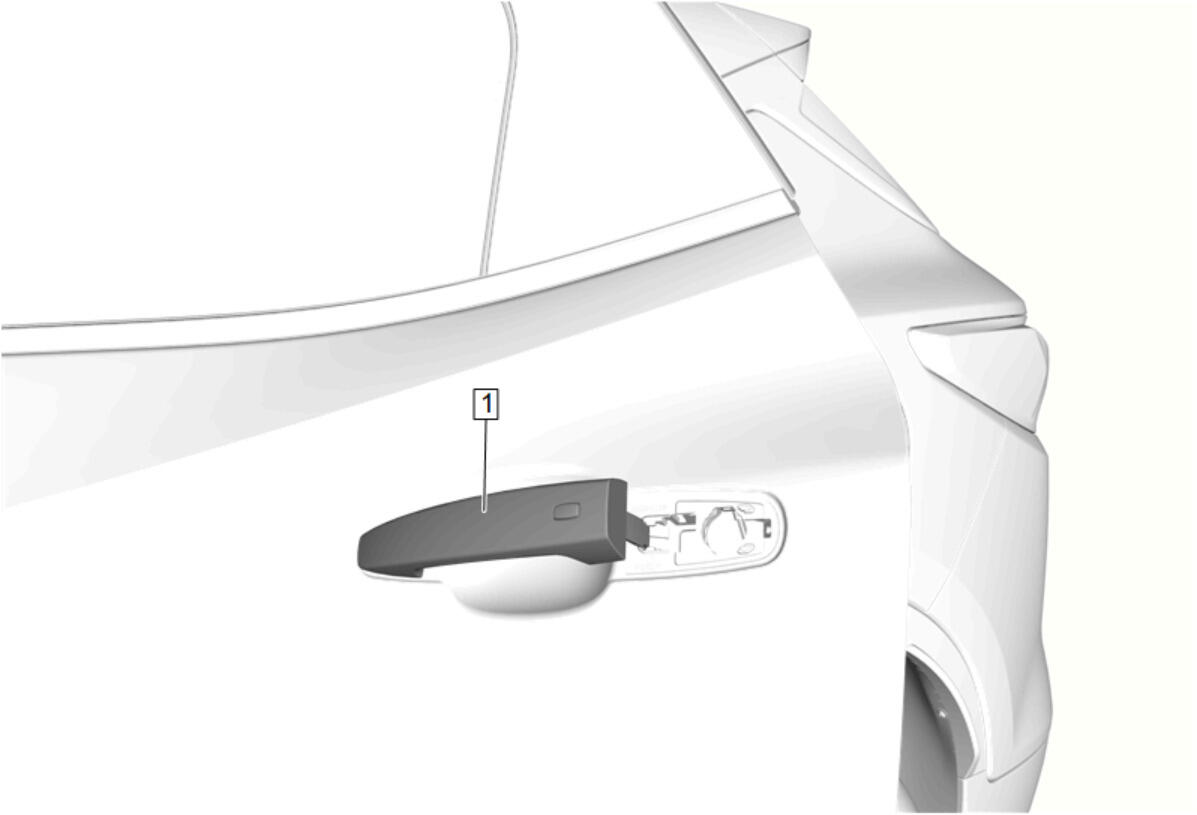

Install the front part of the rear side door outside handle (1) into the rear side door outside handle bracket.

Courtesy of GENERAL MOTORS COMPANY

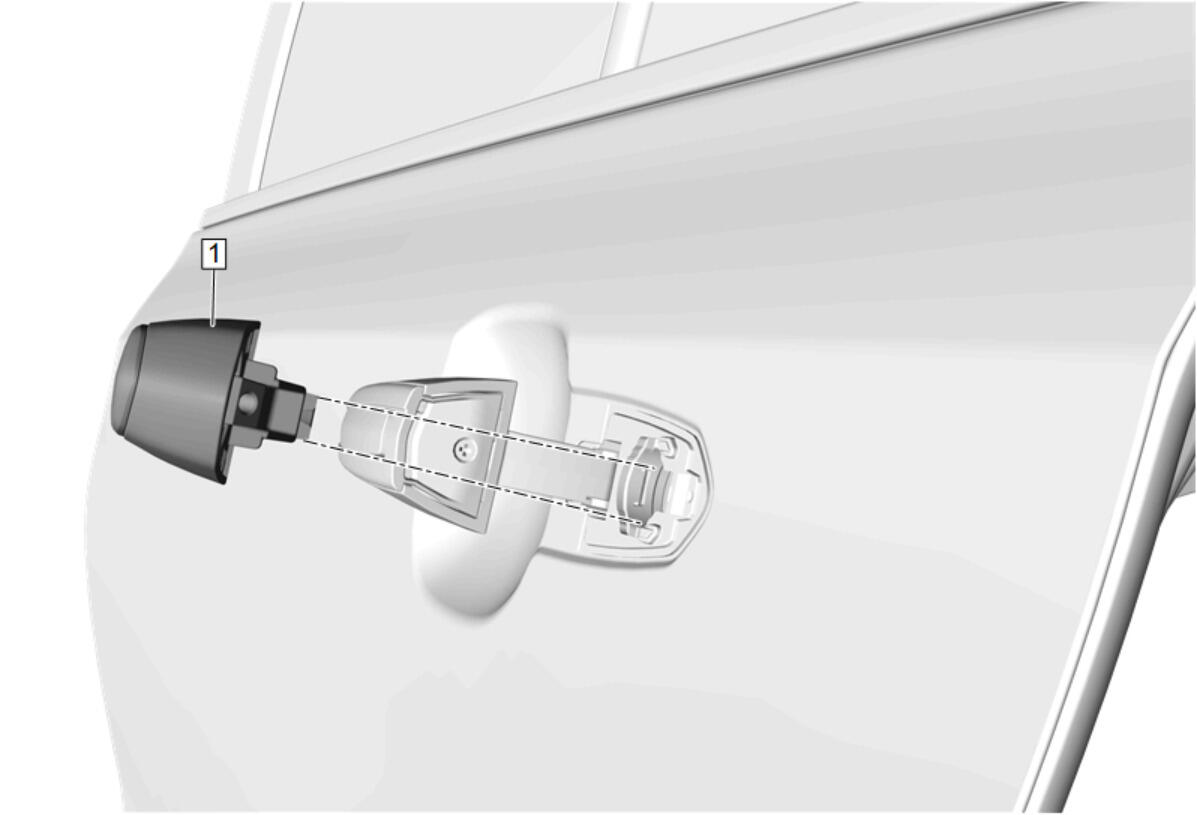

Install the rear part of the rear side door outside handle (1) into the rear side door outside handle bracket and slide the rear side door outside handle forward.

Courtesy of GENERAL MOTORS COMPANY

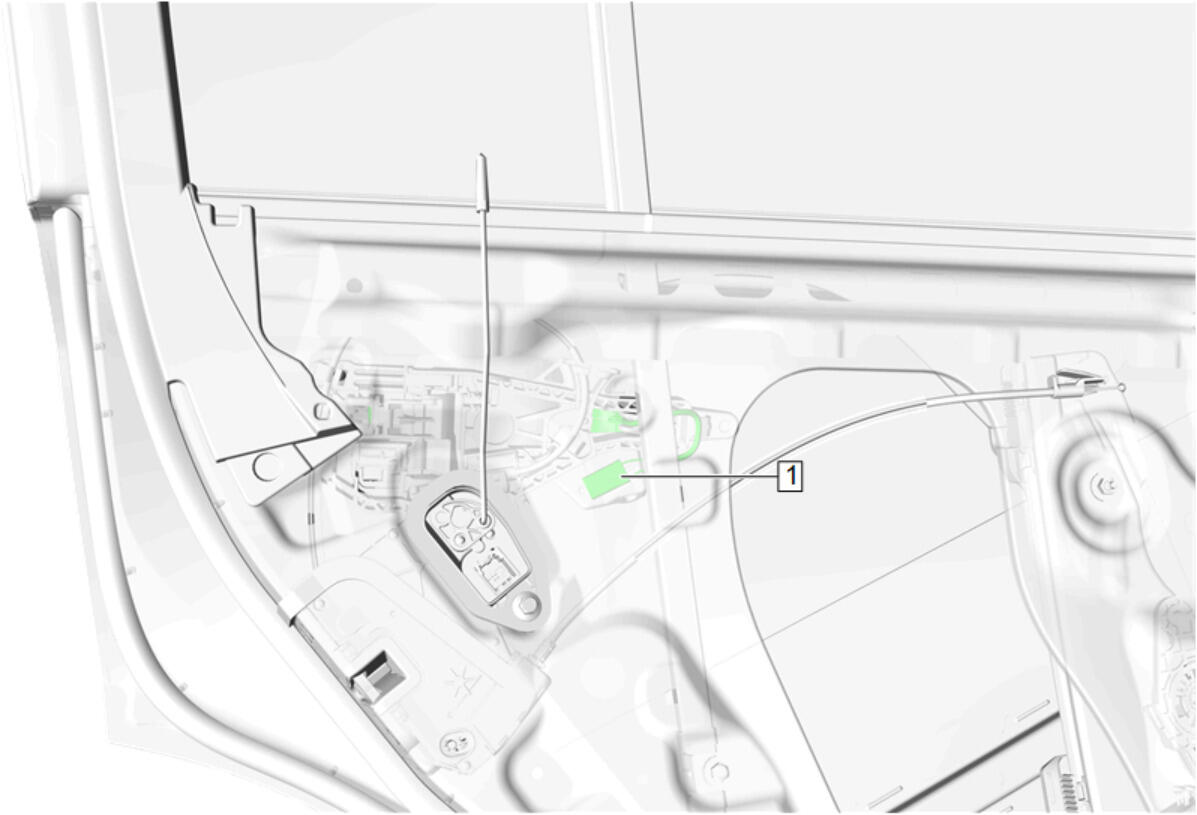

Connect the electrical connector. (1)

Courtesy of GENERAL MOTORS COMPANY

Pull the rear side door outside handle (1) to the open position.

Courtesy of GENERAL MOTORS COMPANY

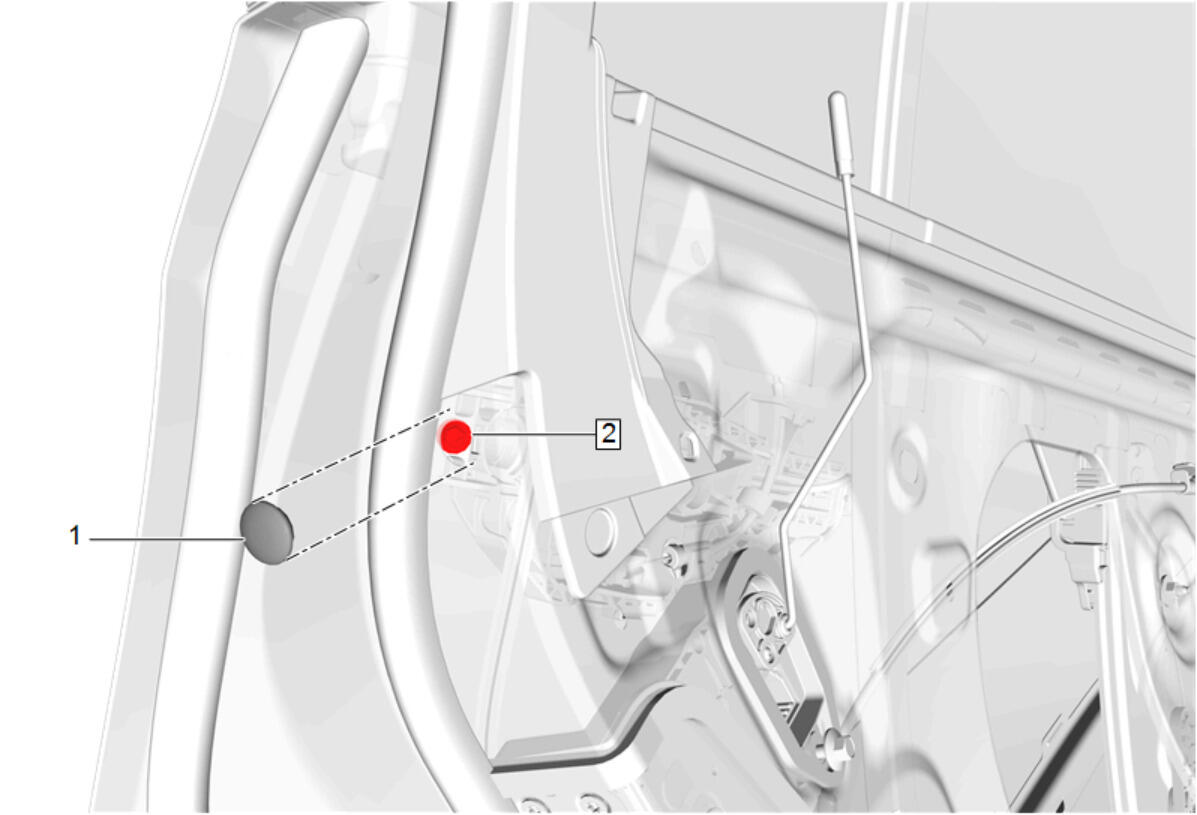

Rear Side Door Lock Cylinder Opening Cover (1) - Install - Rear Side Door Lock Cylinder Opening Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Lock Cylinder Opening Cover Screw (2) - Tighten 4.7 N.m (42 lb in)
