Installation Procedure

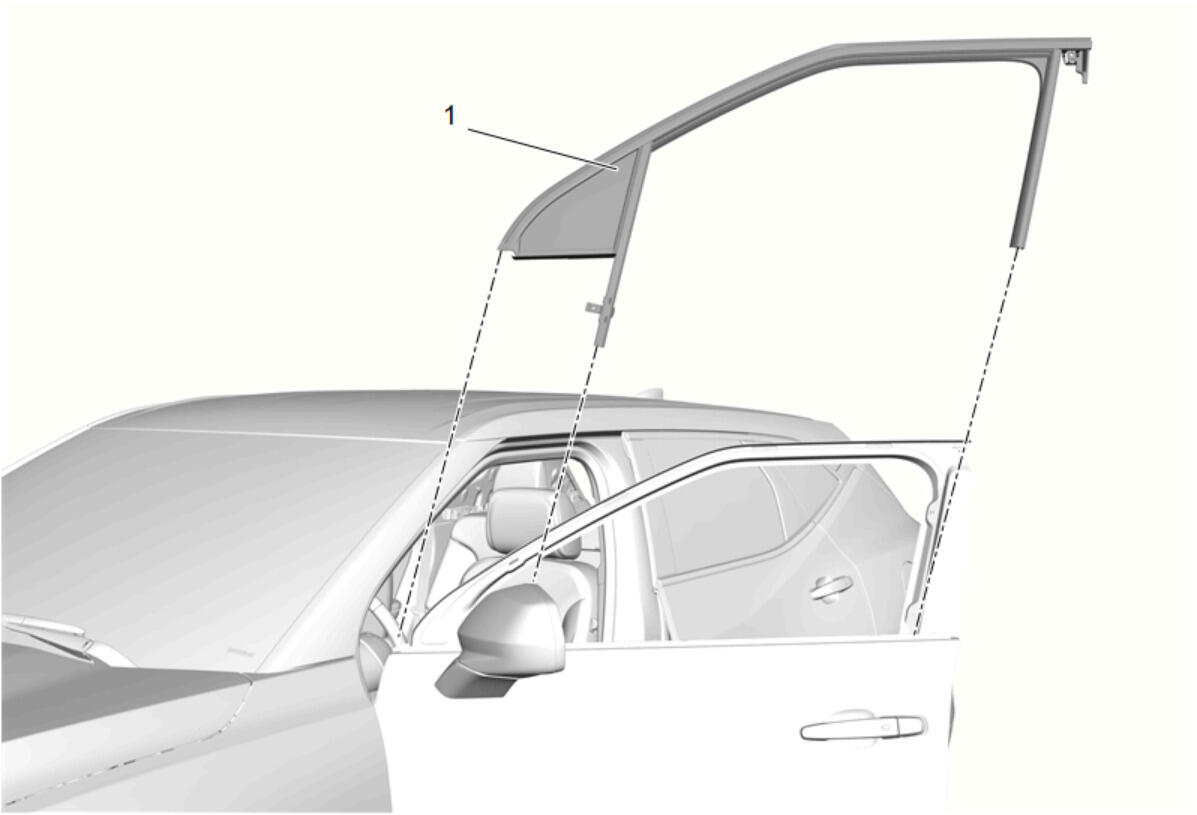

  1. GM5137883Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Weatherstrip (1) - Install

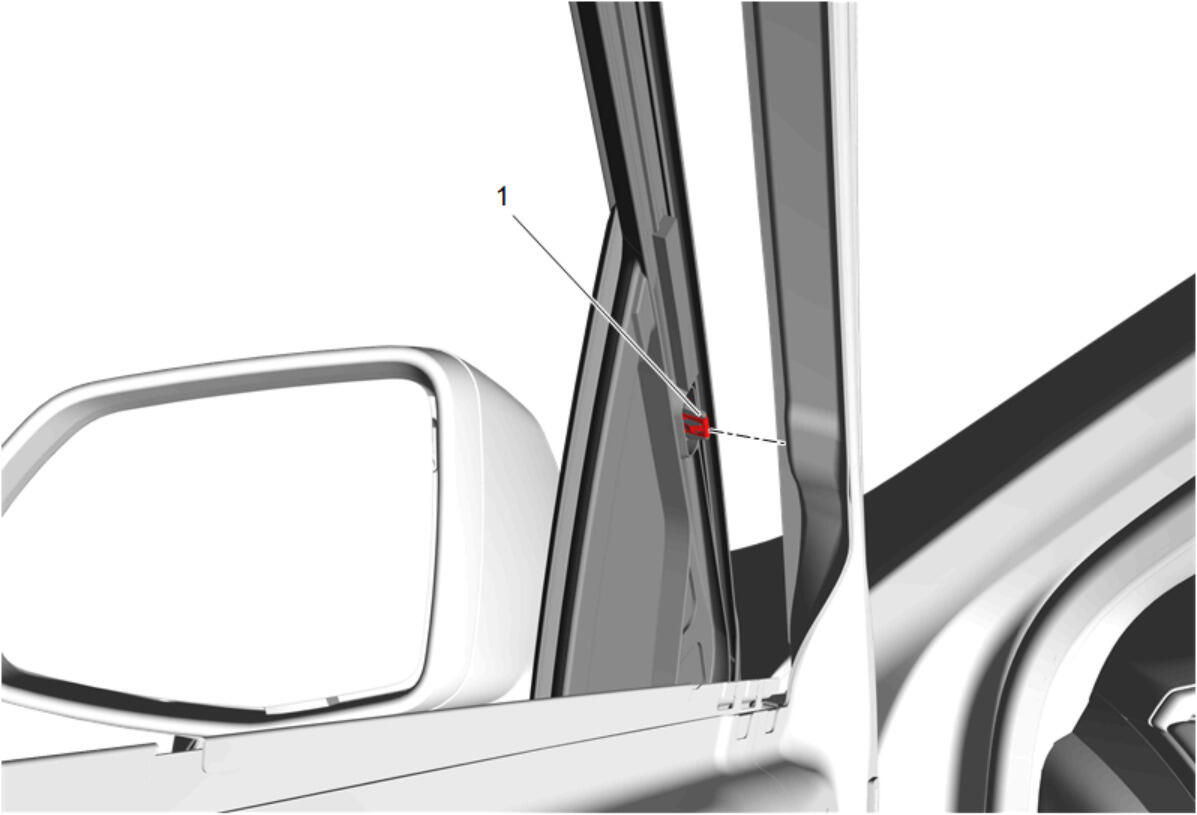

  2. GM5081482Courtesy of GENERAL MOTORS COMPANY

    Push the front side door window weatherstrip front retaining clip (1) into the front door panel until seated.

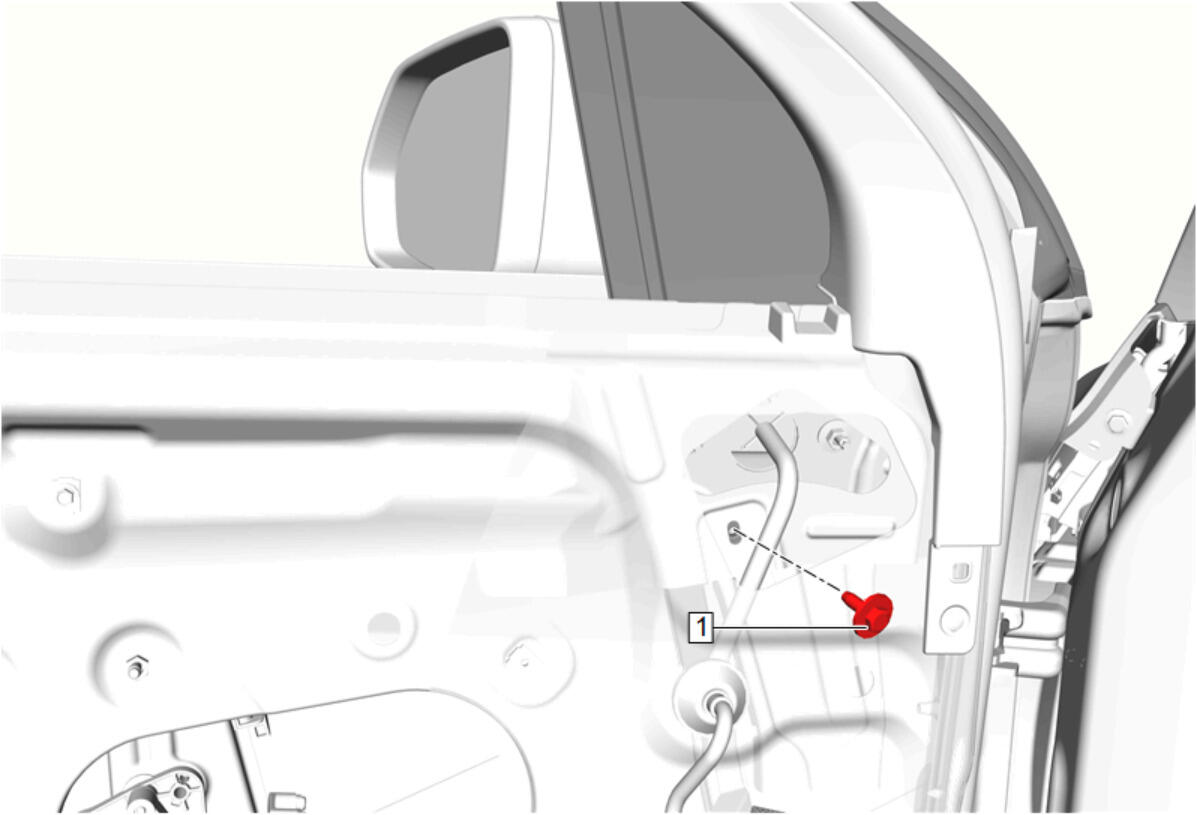

  3. GM5137880Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Side Door Window Channel Retainer Bolt (1) - Install and tighten 11 N.m (97 lb in)

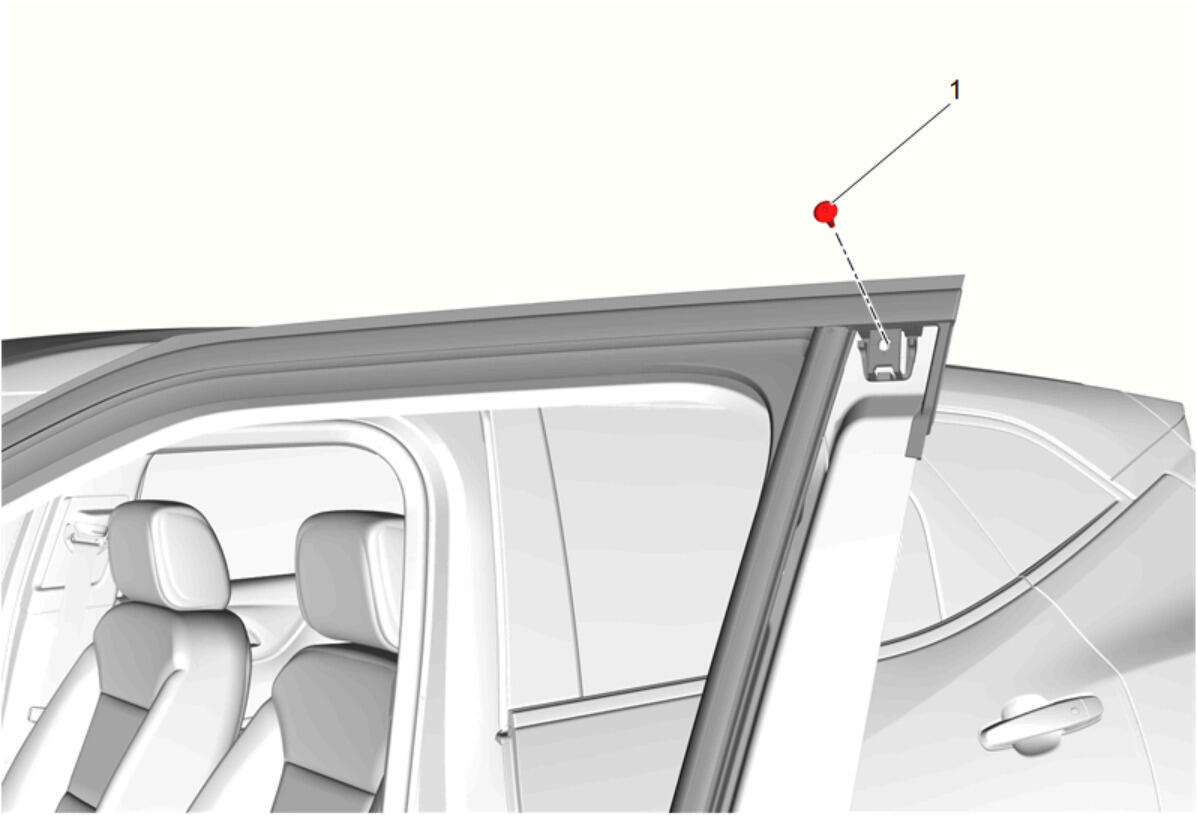

  4. GM5138253Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Weatherstrip Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

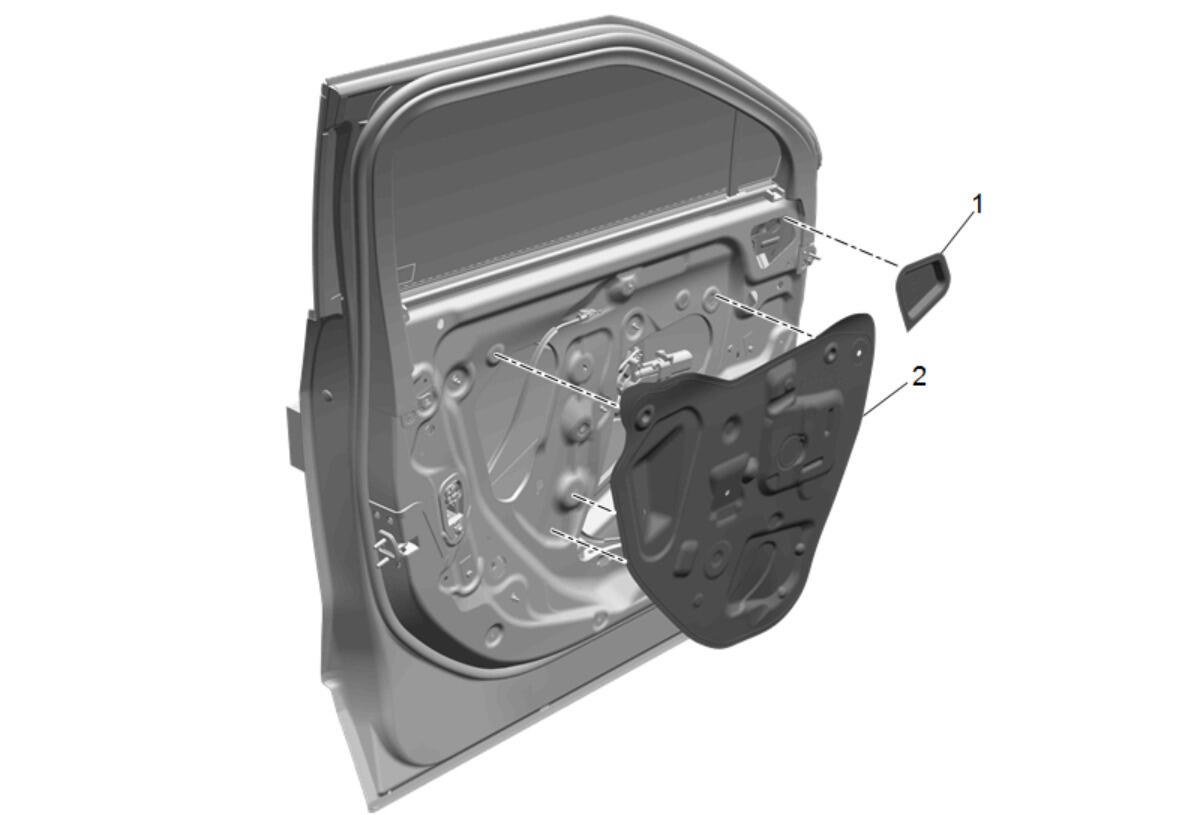

  5. GM5131625Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Water Deflector - Upper (1) - Install - Front Side Door Water Deflector Replacement

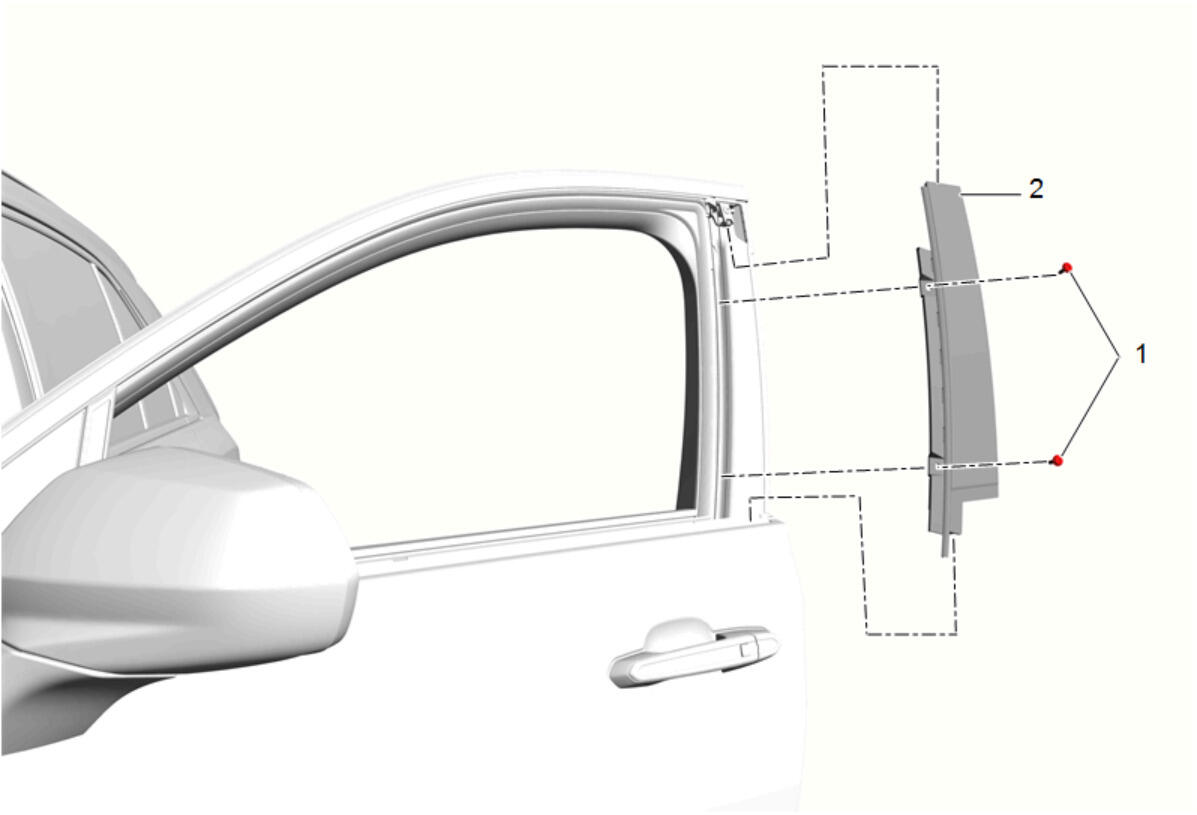

  6. GM5075445Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Frame Rear Applique (2) - Install - Front Side Door Window Frame Rear Applique Replacement

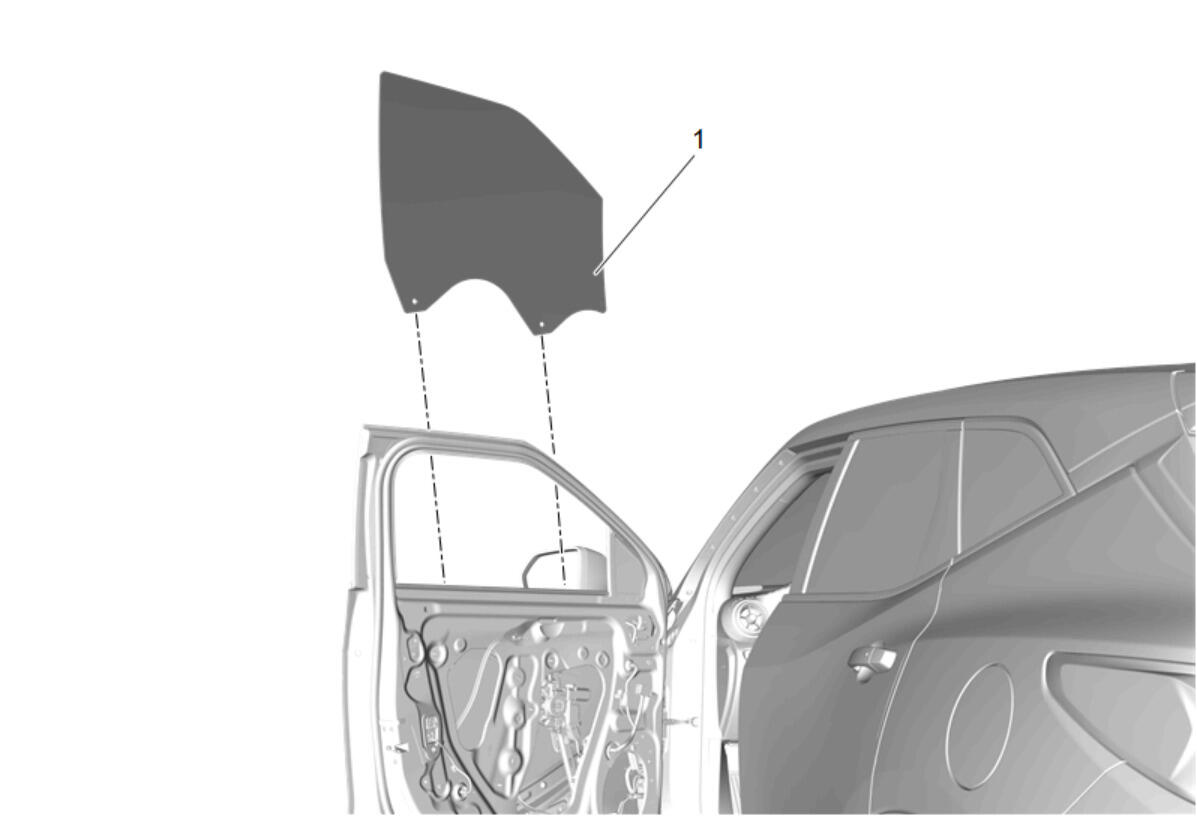

  7. GM5138249Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window (1) - Install - Front Side Door Window Replacement
