Home › Chevrolet › 2021 › Blazer L › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

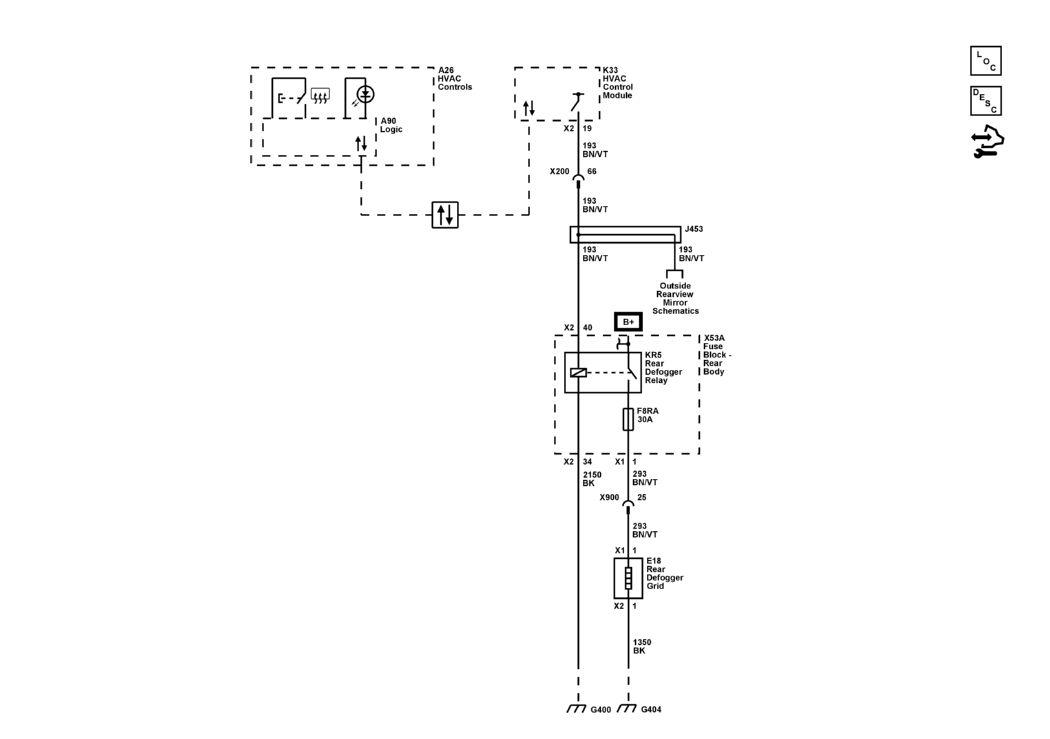

Defogger Wiring Schematics: Defogger

GM5440055Courtesy of GENERAL MOTORS COMPANY
