Theft Deterrent Module Replacement

Courtesy of GENERAL MOTORS COMPANY

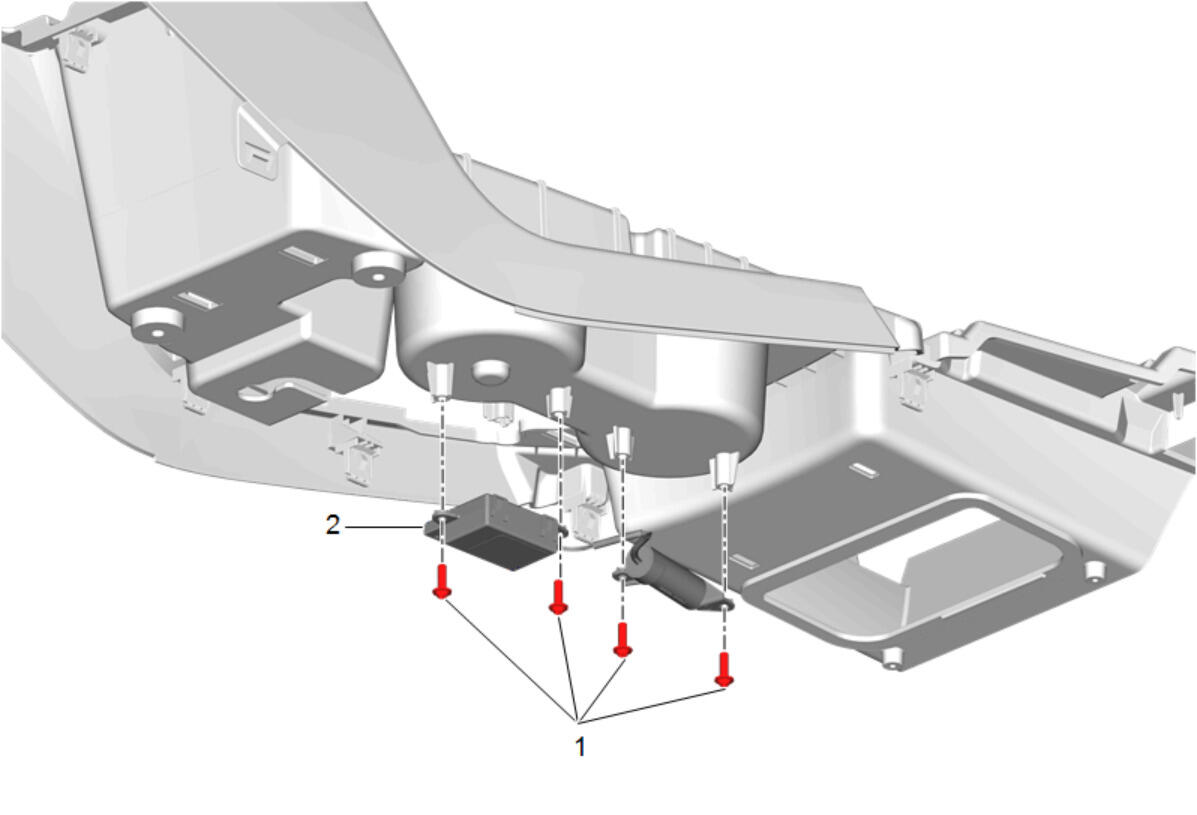

Callout	Component Name
Preliminary Procedure  Front Floor Console Upper Panel Replacement
1	Theft Deterrent Module Bolt [4x] CAUTION: Fastener Caution Tighten  0.75 N.m (7 lb in)
2	Theft Deterrent Module
