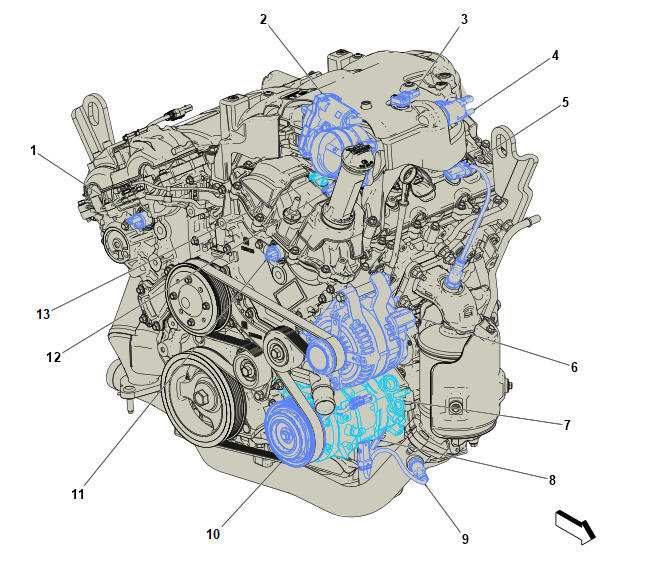

Right Front of Engine Components (LGX)
Right Front of Engine Components (LGX)
| Component Name | Callout |
|---|---|
| Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGX) Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGX) | 1 |
| Q38 Throttle Body Q38 Throttle Body | 2 |
| B74 Manifold Absolute Pressure Sensor (LCV/LGX) B74 Manifold Absolute Pressure Sensor (LGX) | 3 |
| Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LCV/LGX) | 4 |
| B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LGX) B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LGX) | 5 |
| G13 Generator G13 Generator X1 , or G13 Generator X2 (LCV/LGX) | 6 |
| G1 A/C Compressor | 7 |
| Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve | 8 |
| B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LGX) B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LGX) | 9 |
| Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch | 10 |
| Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake (LGX) Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake (LGX) | 11 |
| Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGX) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGX) | 12 |
| Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGX) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGX) | 13 |
