Removal Procedure
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Steering Linkage Outer Tie Rod - Remove - Steering Linkage Outer Tie Rod Replacement

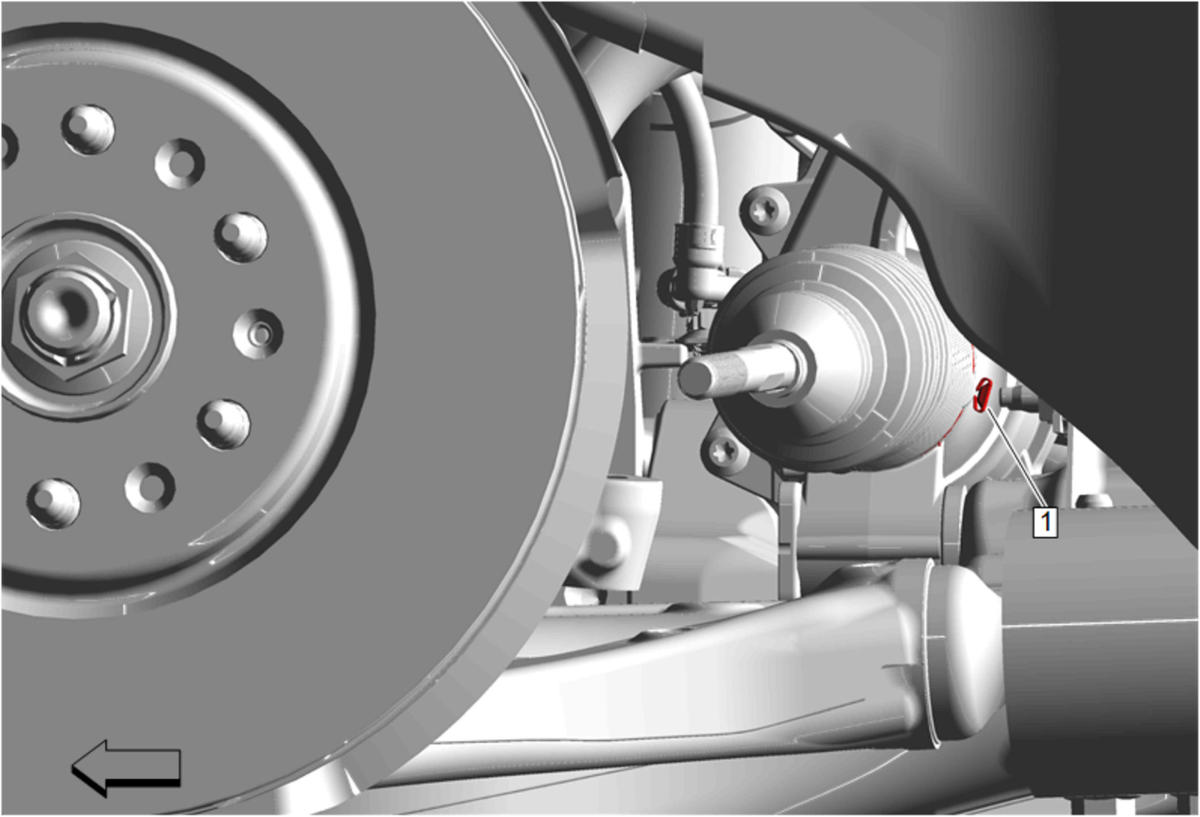

Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod. (1)
- Steering Linkage Inner Tie Rod Nut (1) - Remove
Steering Gear Boot Outer Clamp (1) - Remove
Steering Gear Boot Inner Clamp (1) - Remove and DISCARD
Steering Gear Boot (1) - Remove
