Driver Door Trim Components

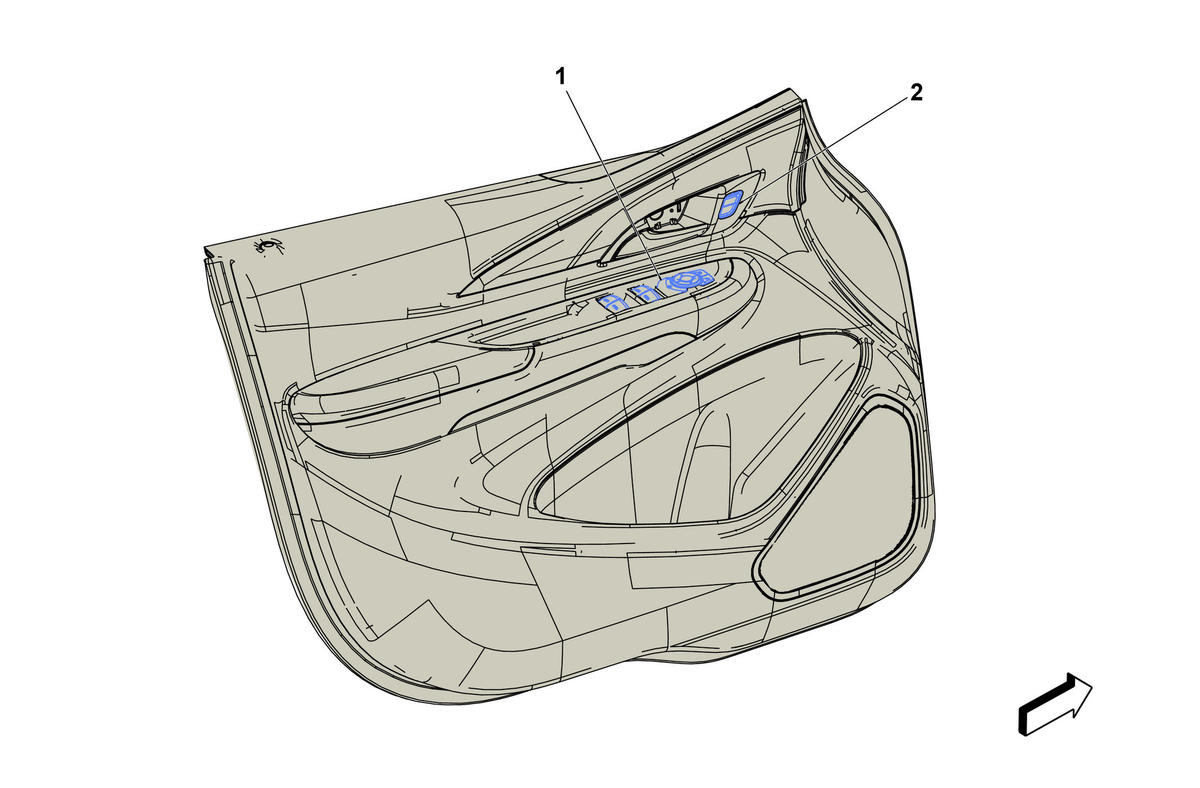

GM4535149Courtesy of GENERAL MOTORS COMPANY
Driver Door Trim Components

Component Name Callout
S146 Window/Outside Rearview Mirror Switch - Driver S146 Window/Outside Rearview Mirror Switch - Driver 1
S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver 2
