Front Side Door Lock Cylinder Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Side Door Lock Cylinder Rod Replacement |
|

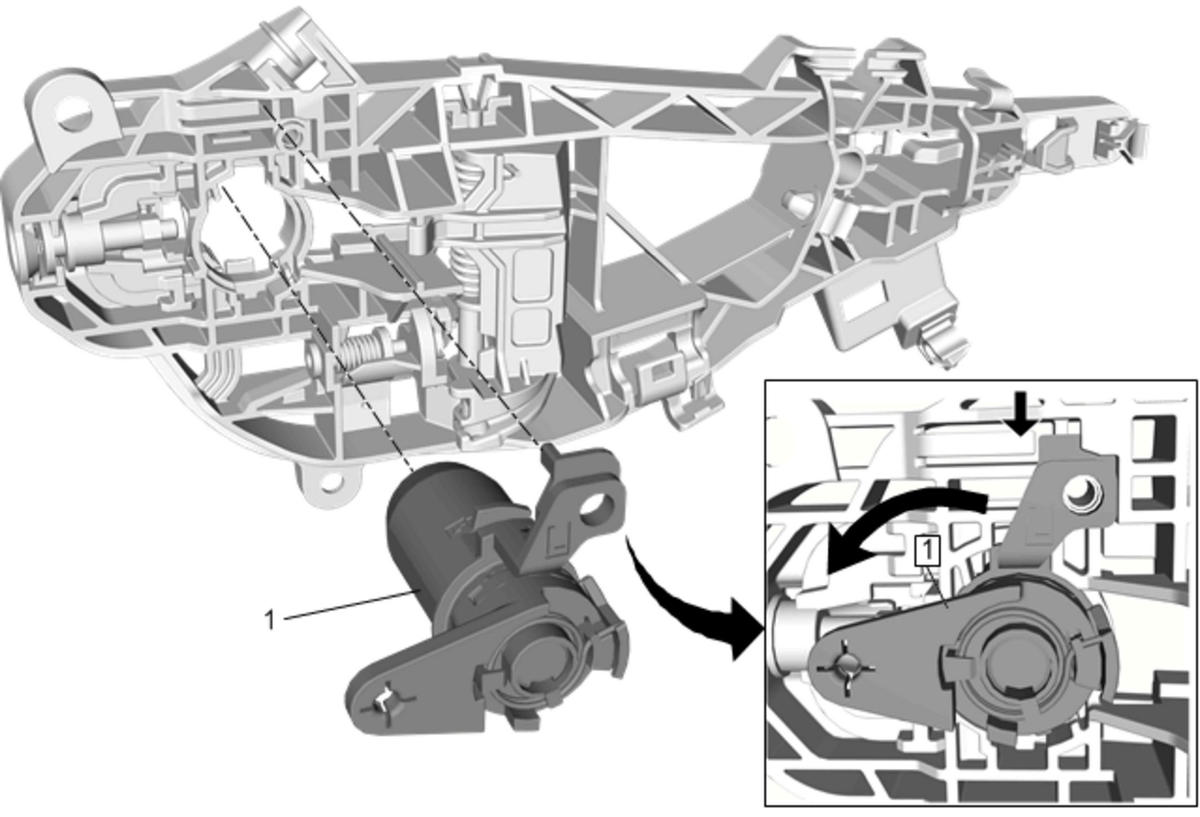

| 1 | Front Side Door Lock Cylinder Procedure Release the integral retainer, rotate the cylinder counter-clockwise to unlock and remove the cylinder.
NOTE:
Ensure that the door lock system operates properly before installing the trim. |
