Front Side Door Outside Handle Cable Replacement

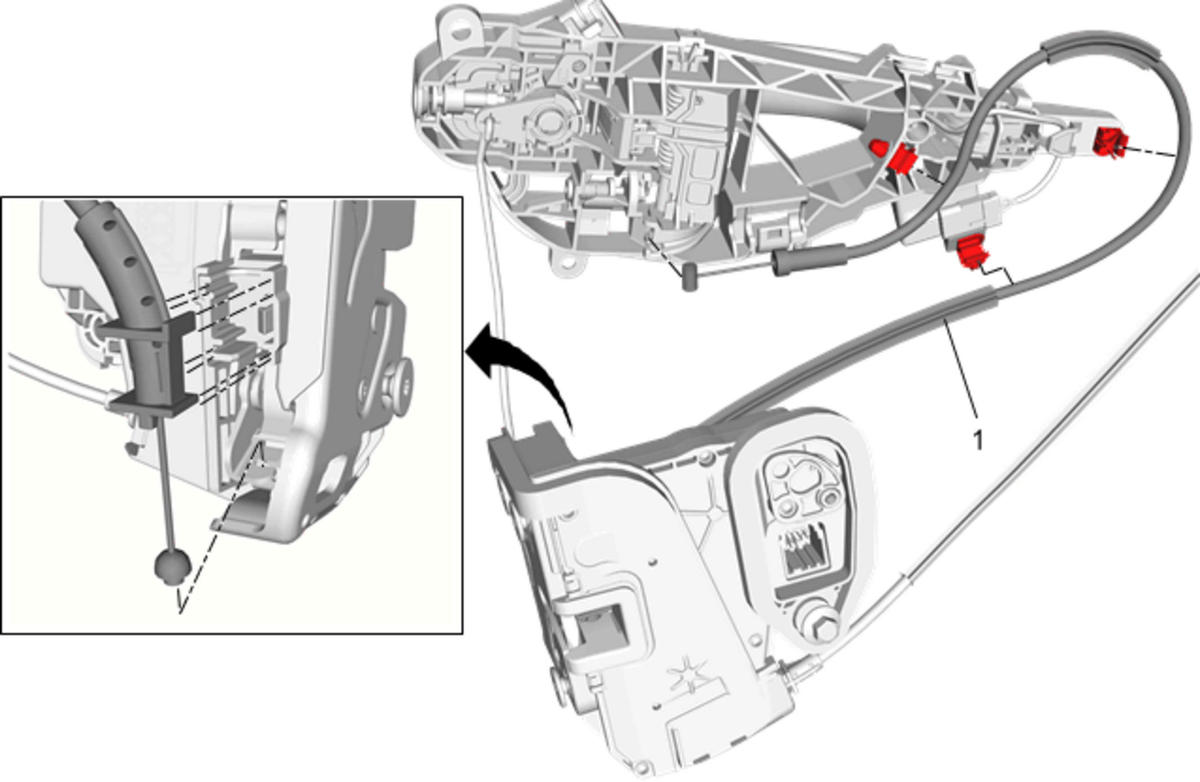

GM4534733

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Front Side Door Latch Replacement

1

Front Side Door Outside Handle Cable

Procedure

Front Side Door Outside Handle Cable @ Retainer - Remove
Release the cable from the back of the latch assembly
Front Side Door Outside Handle Cable @ Front Side Door Outside Handle Bracket - Remove

NOTE:

Ensure that the door lock system operates properly before installing the trim.
