Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

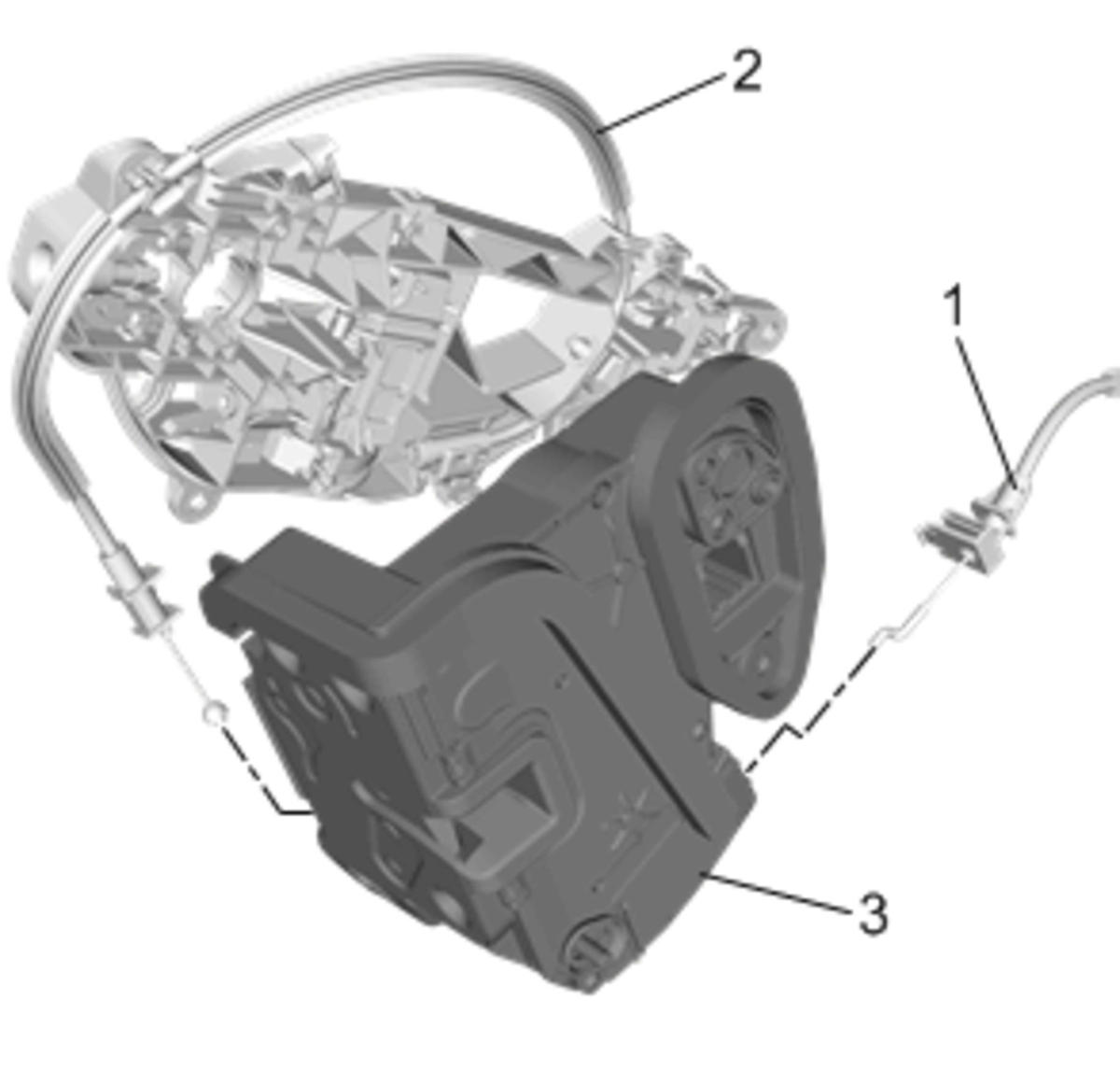

Rear Side Door Outside Handle Cable (1) @ Rear Side Door Latch (3) - Install - Rear Side Door Outside Handle Cable Replacement
Rear Side Door Inside Handle Cable (2) @ Rear Side Door Latch (3) - Install - Rear Side Door Inside Handle Cable Replacement
Connect and clip the electrical connector in place.
Courtesy of GENERAL MOTORS COMPANY

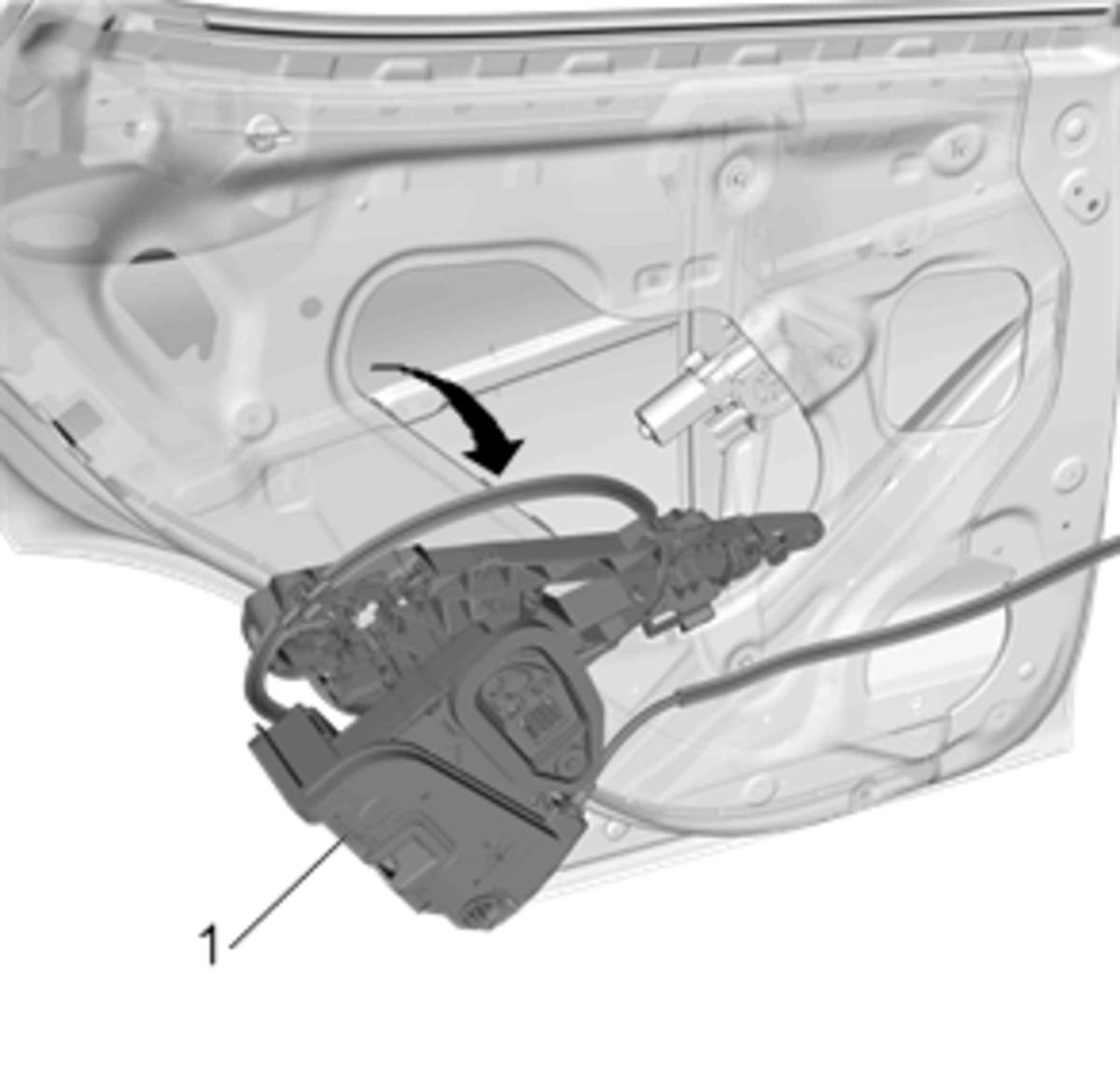

Install the rear side door latch with rear side door outside handle bracket to the rear side door.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

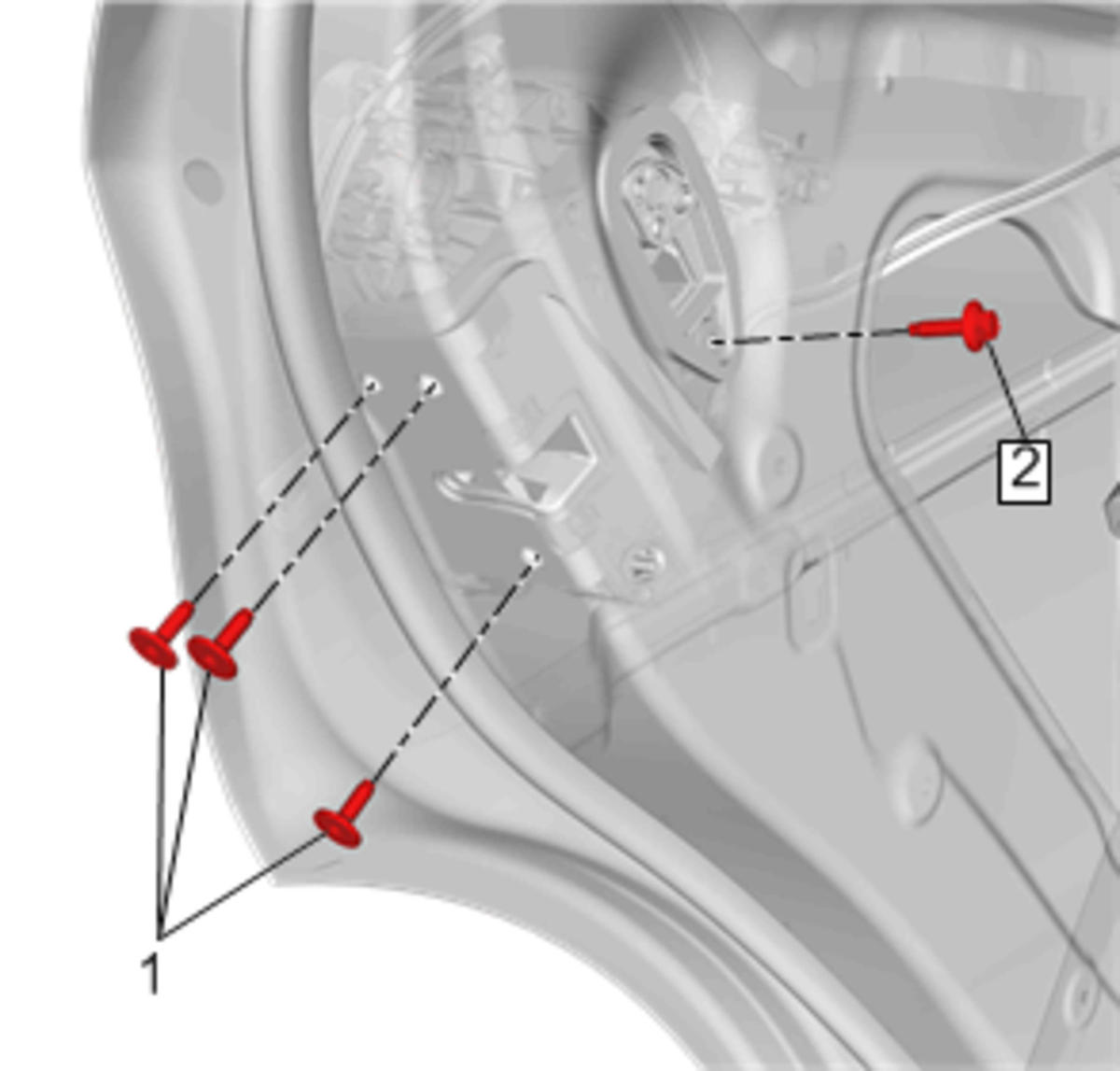

Rear Side Door Latch Fastener (1) - Install and tighten [ 3x ] 9 N.m (80 lb/in)
Rear Side Door Latch Fastener (2) - Install and tighten 9 N.m (80 lb/in)
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Outside Handle Bracket Fastener (1) - Install and tighten 5 N.m (44 lb/in)
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Outside Handle (1) - Install - Rear Side Door Outside Handle Replacement
Courtesy of GENERAL MOTORS COMPANY

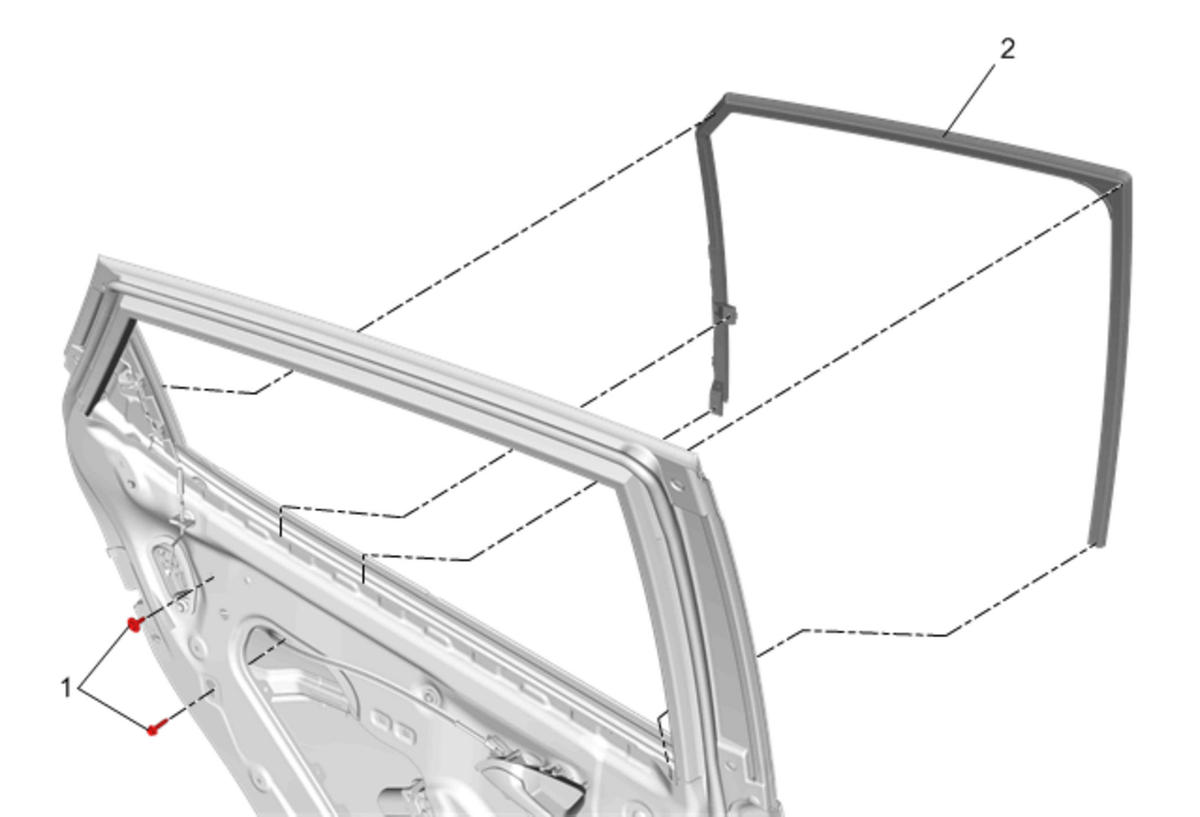

Position channel and install the rear side door window channel rear retainer bolts (1). Rear Side Door Window Weatherstrip Replacement
Courtesy of GENERAL MOTORS COMPANY

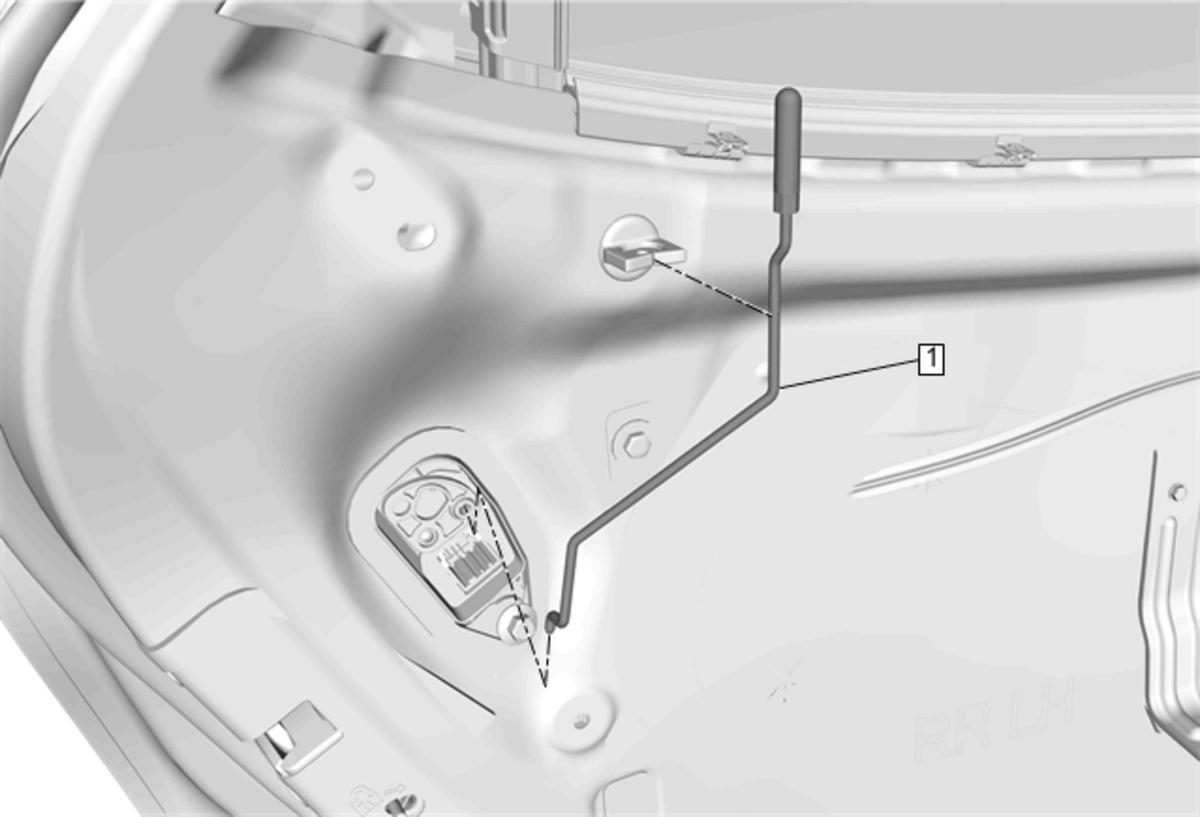

Rear Side Door Locking Rod Knob - (1) Install - Rear Side Door Locking Rod Knob Replacement
Courtesy of GENERAL MOTORS COMPANY

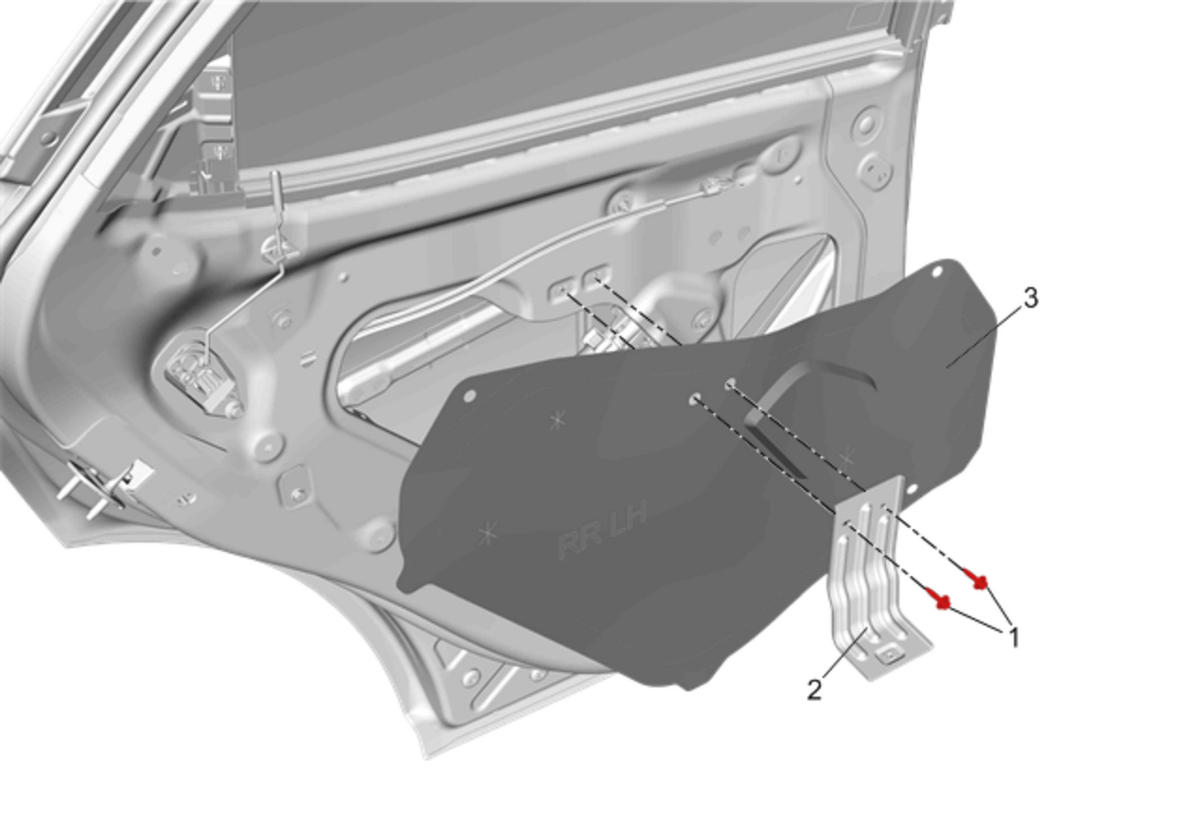

Rear Side Door Water Deflector (3) - Install - Rear Side Door Water Deflector Replacement

NOTE:

Ensure that the door lock system operates properly before installing the trim.
