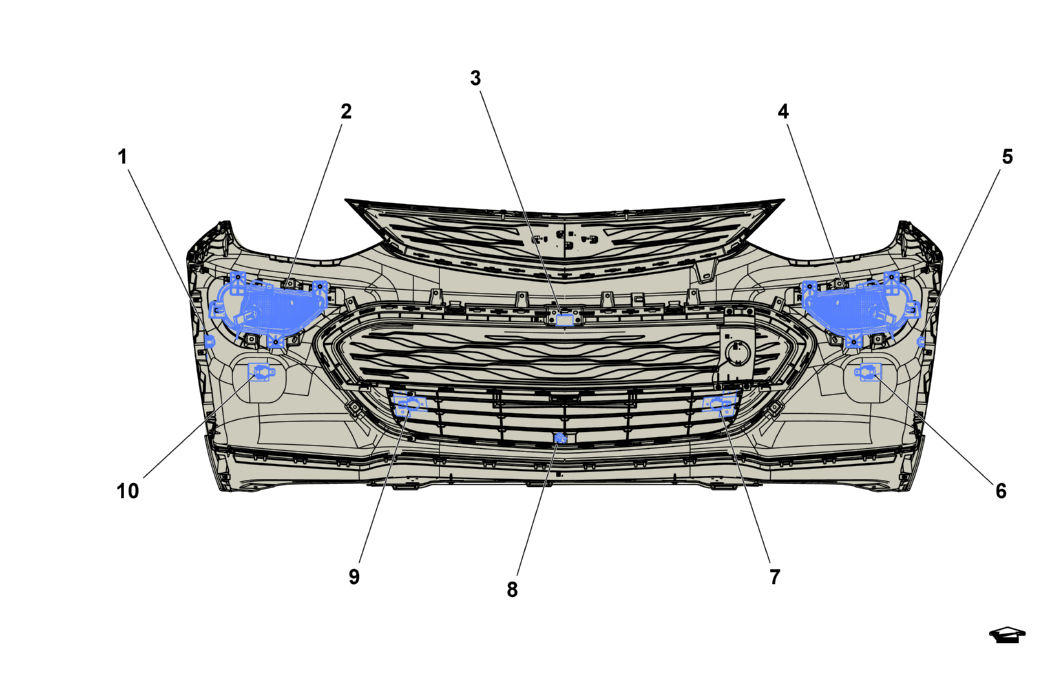

Front Fascia Components
Front Fascia Components
| Component Name | Callout |
|---|---|
| B306A Parking Assist Sensor - Front Left Outer (UD5/UFQ) B306A Parking Assist Sensor - Front Left Outer (UD5/UFQ) | 1 |
| E4LF Turn Signal Lamp - Left Front E4LF Turn Signal Lamp - Left Front | 2 |
| B174G Frontview Camera - Grille (UVH) B174G Frontview Camera - Grille (UV2) | 3 |
| E4RF Turn Signal Lamp - Right Front E4RF Turn Signal Lamp - Right Front | 4 |
| B306D Parking Assist Sensor - Front Right Outer (UD5/UFQ) B306D Parking Assist Sensor - Front Right Outer (UD5/UFQ) | 5 |
| B306L Parking Assist Sensor - Side Right Front (UFQ) B306L Parking Assist Sensor - Side Right Front (UFQ) | 6 |
| B306C Parking Assist Sensor - Front Right Middle (UD5/UFQ) B306C Parking Assist Sensor - Front Right Middle (UD5/UFQ) | 7 |
| B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor | 8 |
| B306A Parking Assist Sensor - Front Left Outer (UD5/UFQ) B306A Parking Assist Sensor - Front Left Outer (UD5/UFQ) | 9 |
| B306K Parking Assist Sensor - Side Left Front (UFQ) B306K Parking Assist Sensor - Side Left Front (UFQ) | 10 |
