Installation Procedure

  1. GM4542638Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, position the instrument carrier (1) in the vehicle.

  2. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument carrier.

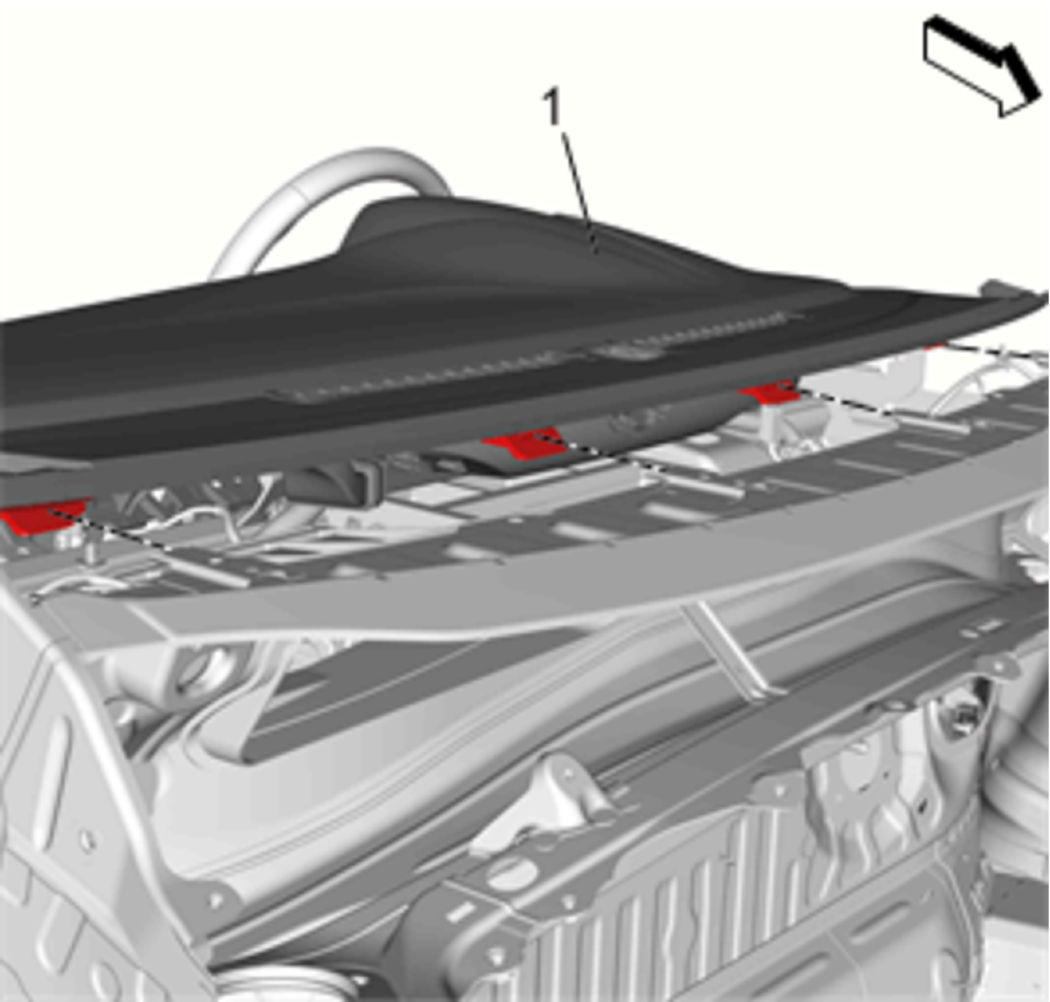

  3. GM4542637Courtesy of GENERAL MOTORS COMPANY

    Slide the instrument panel assembly (1) forward.

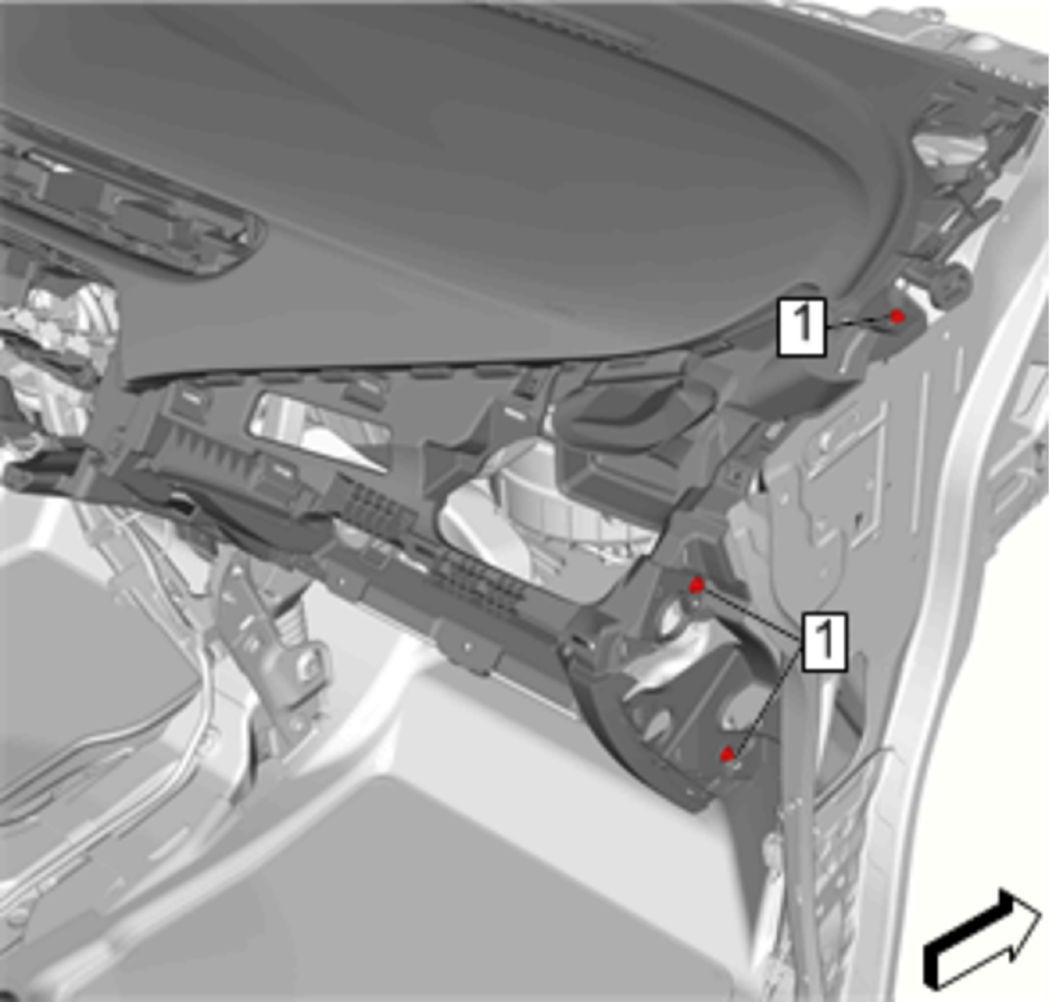

  4. GM4542636Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

    Instrument Panel Bolt (1) - Install and tighten [ 3x ] 2.5 N.m(22 lb/in)

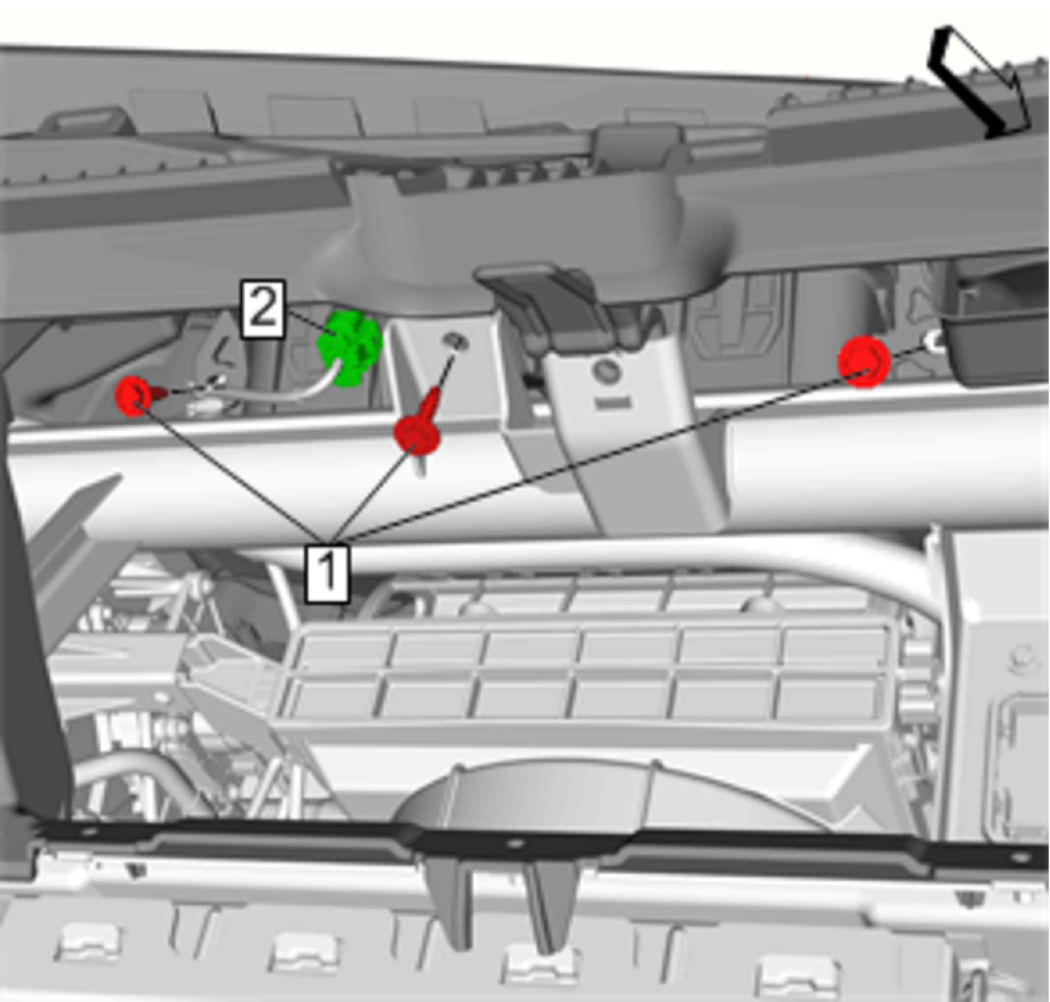

  5. GM4542635Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag Bolt (1) - Install and tighten [ 3x ] 10 N.m(89 lb/in)

  6. Connect the instrument panel airbag electrical connector (2).

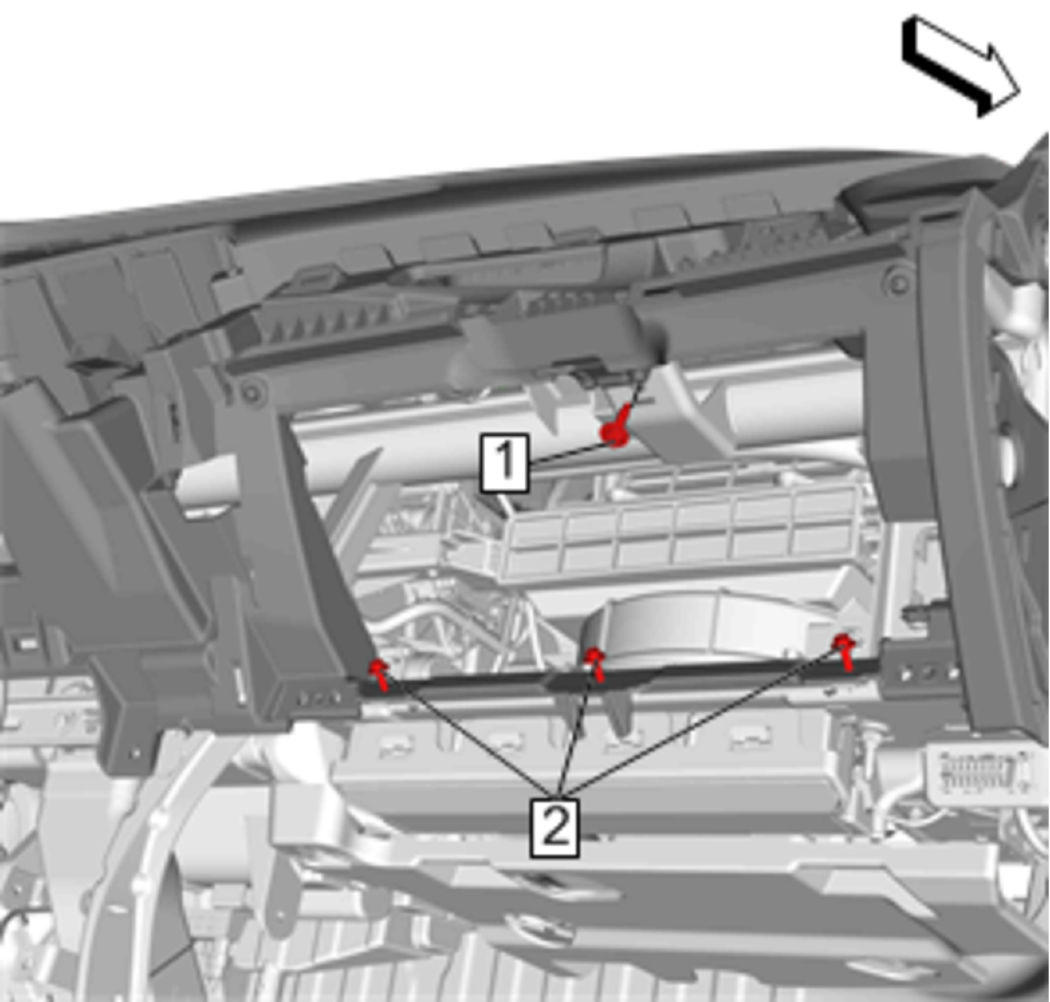

  7. GM4542634Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (2) - Install and tighten [ 3x ] 2.5 N.m(22 lb/in)

  8. Instrument Panel Compartment Center Upper Bracket Bolt (1) - Install and tighten [ 1x ] 10 N.m(89 lb/in)

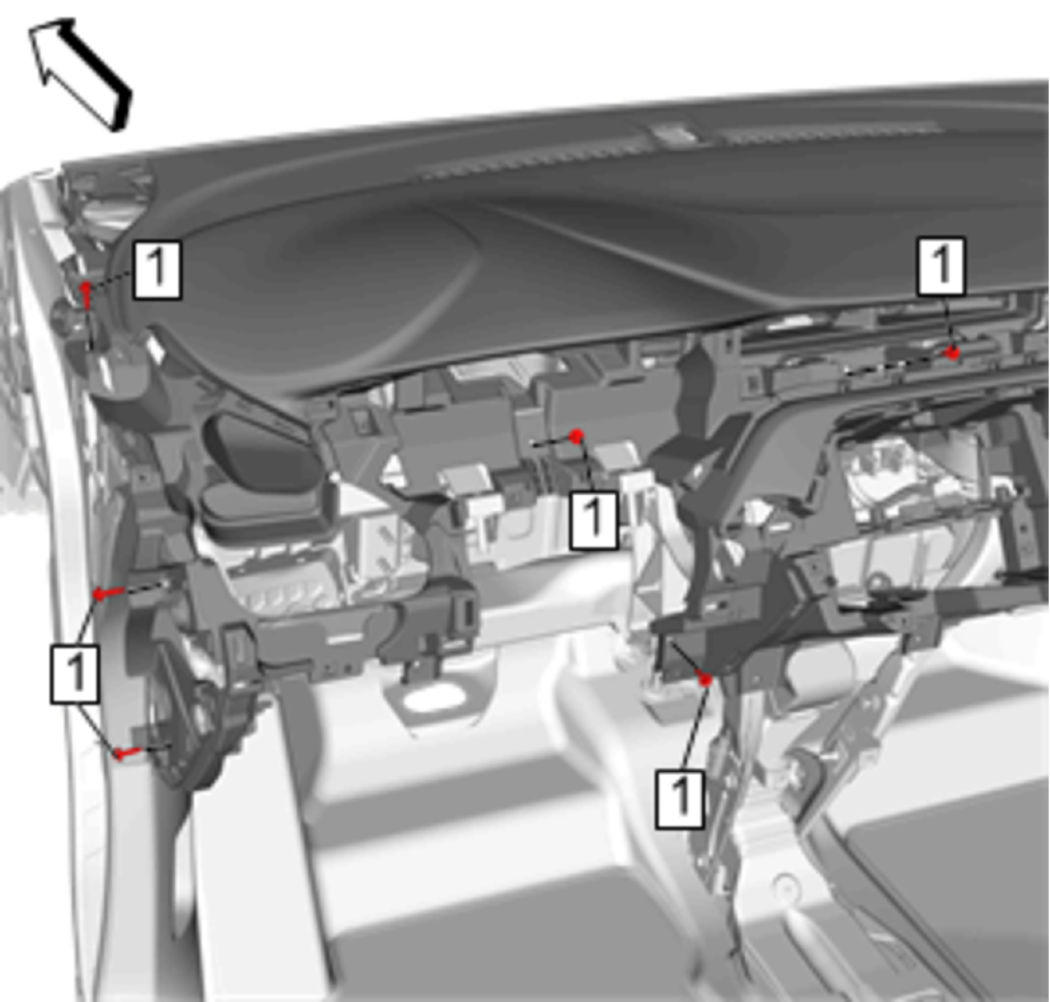

  9. GM4542633Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [ 6x ] 2.5 N.m(22 lb/in)

  10. GM4534931Courtesy of GENERAL MOTORS COMPANY

    Keyless Entry Control Module Bracket (2) - Install - Keyless Entry Control Module Bracket Replacement

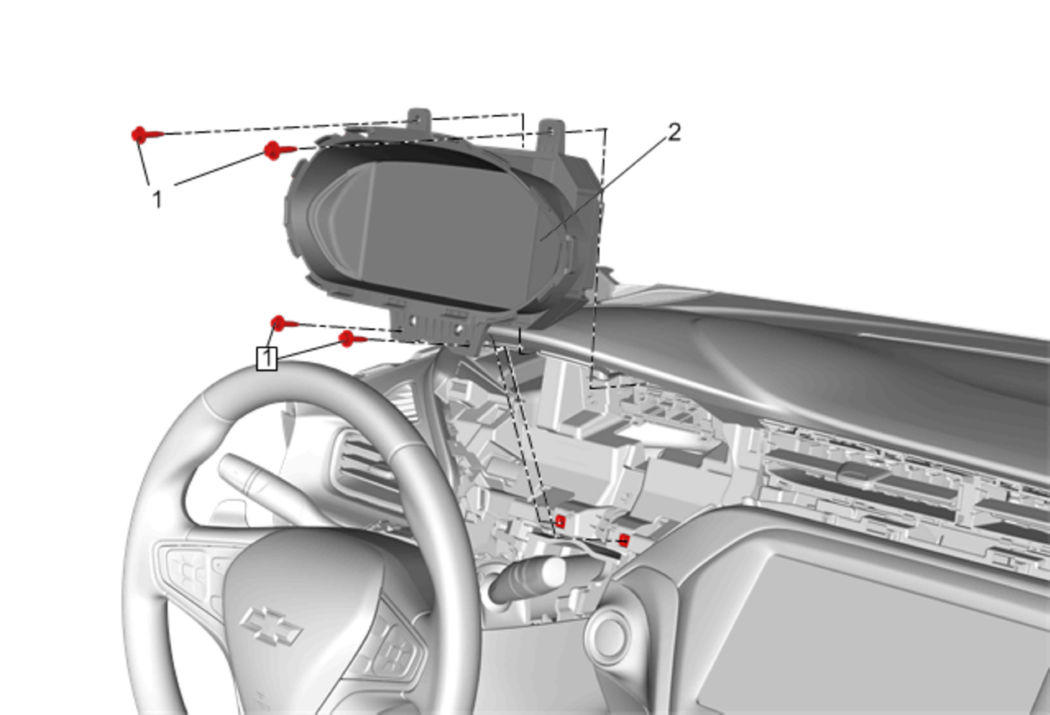

  11. GM4535558Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement

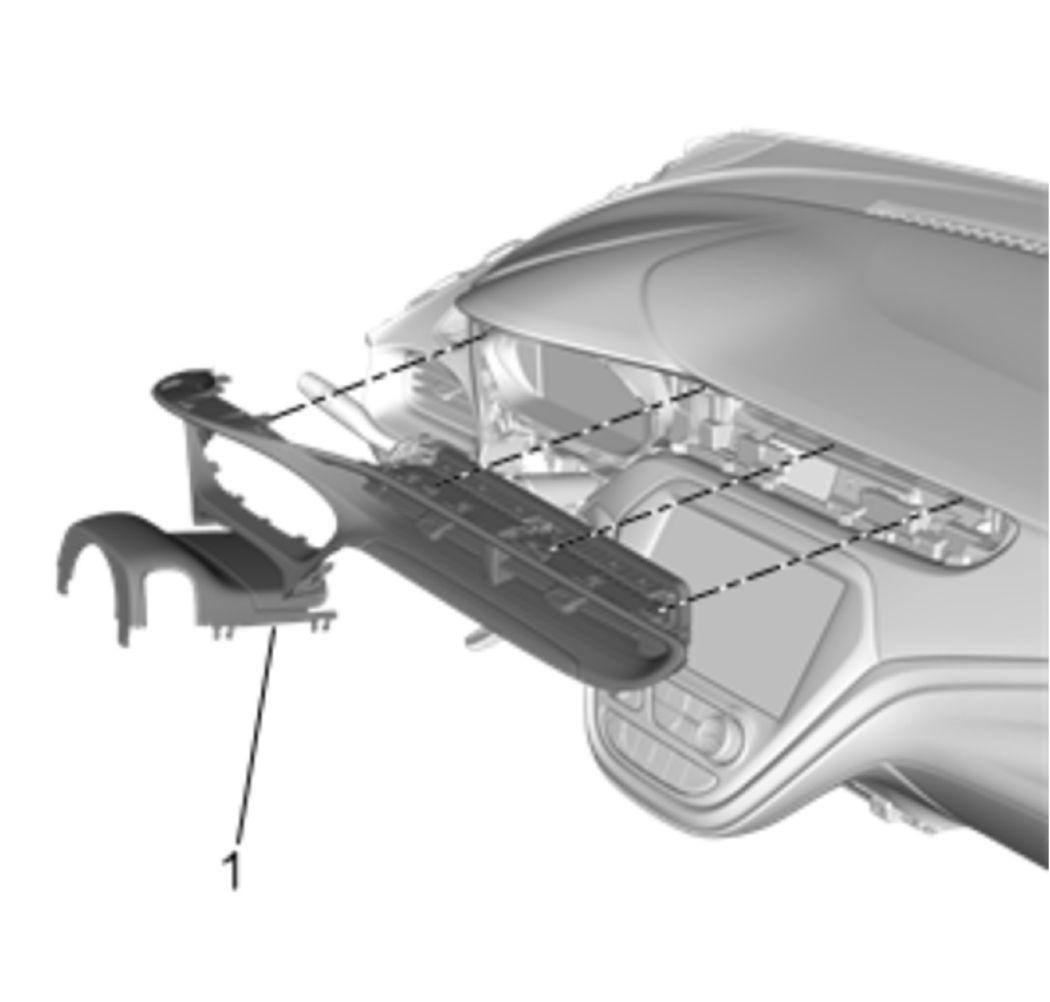

  12. GM4539370Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Upper Trim Cover (1) - Install - Steering Column Upper Trim Cover Replacement

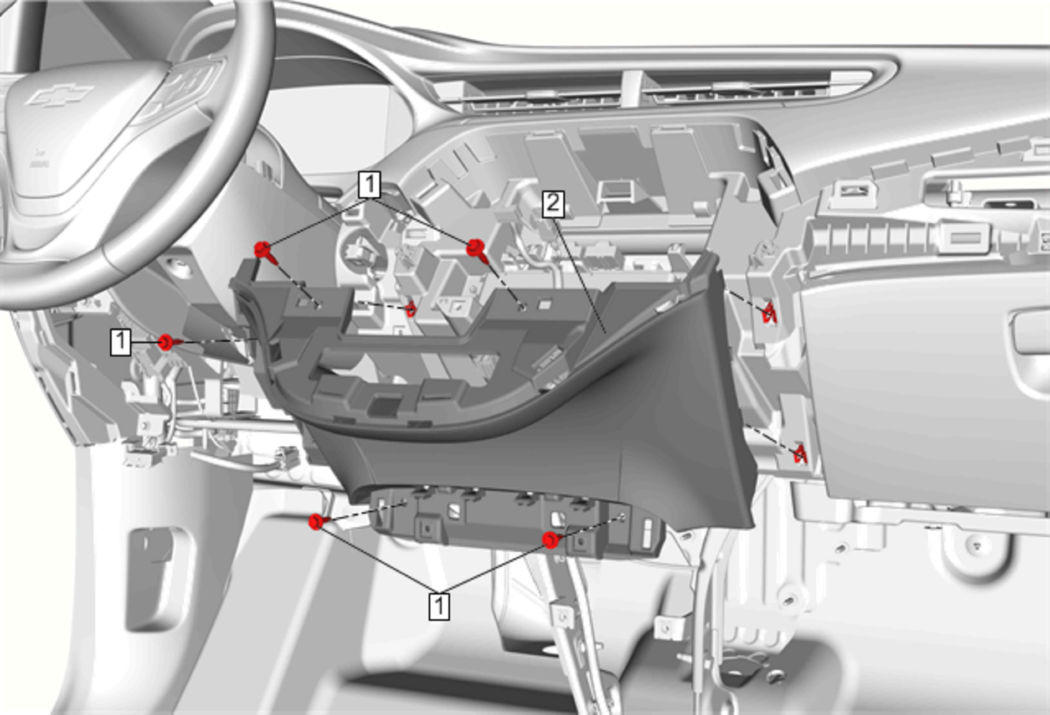

  13. GM4540258Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel (2) - Install - Instrument Panel Lower Trim Panel Replacement

  14. GM4541209Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Bracket (2) - Install - Communication Interface Module Bracket Replacement

  15. GM4541206Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Remote Control (1) - Install - Heater and Air Conditioning Remote Control Replacement

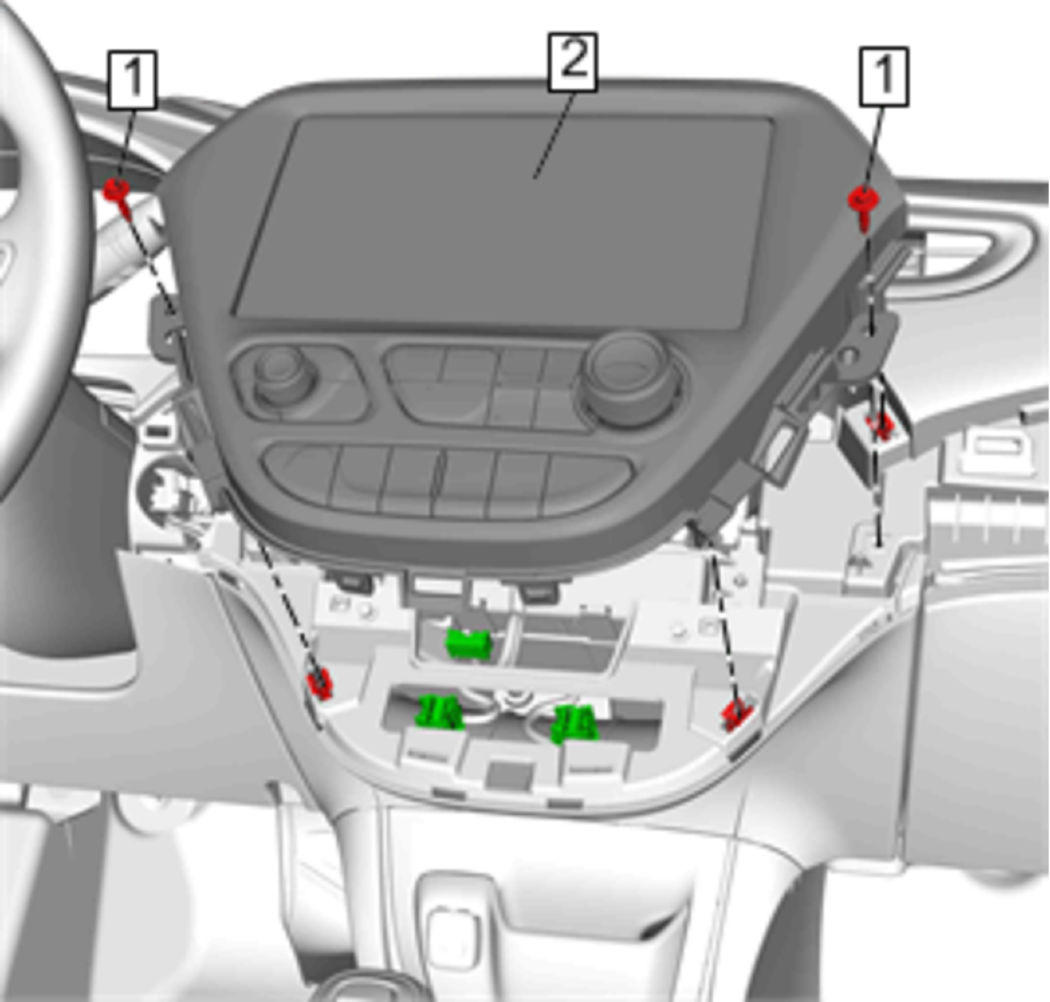

  16. GM4540183Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate (2) - Install - Instrument Panel Trim Plate Replacement

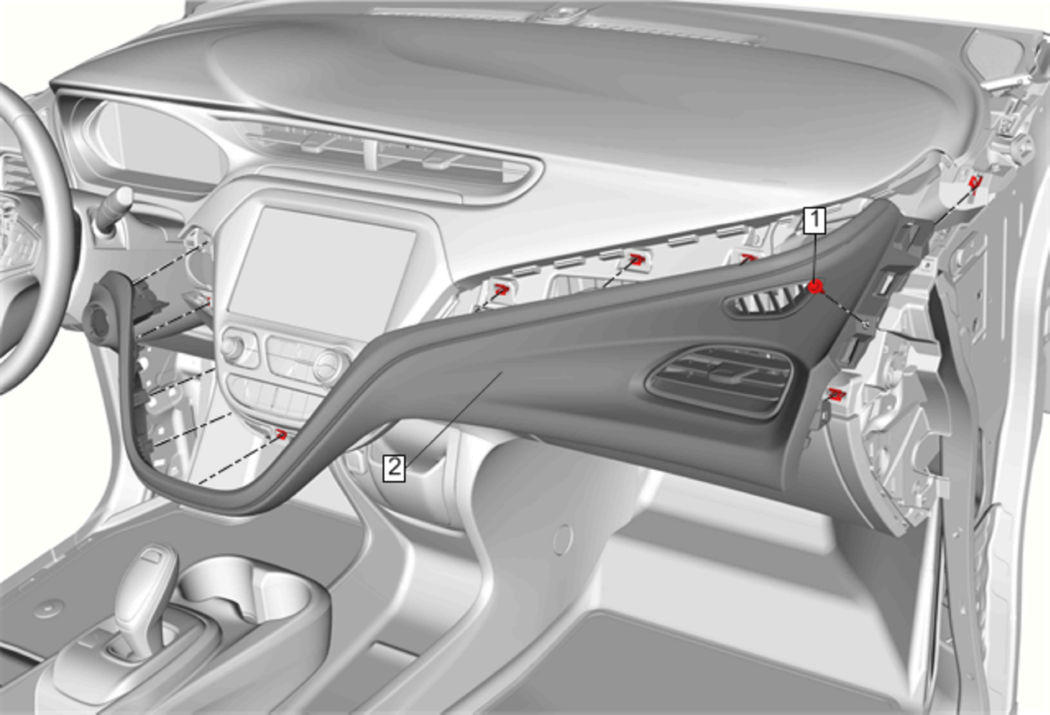

  17. GM4540178Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (2) - Install - Instrument Panel Trim Pad Replacement - Right Side

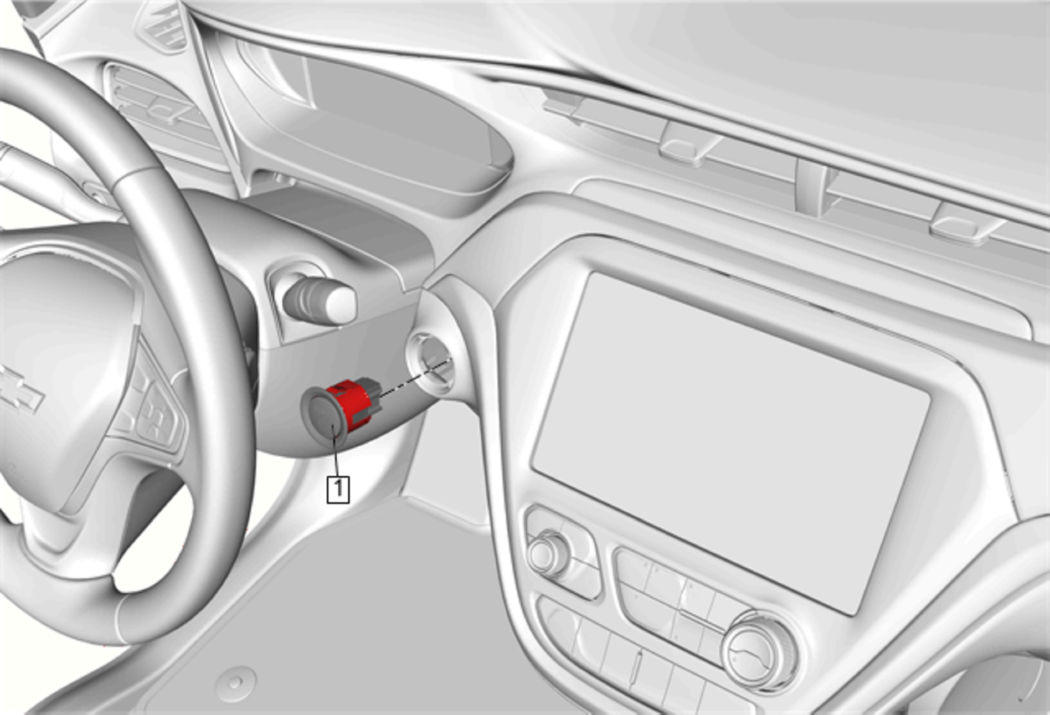

  18. GM4522537Courtesy of GENERAL MOTORS COMPANY

    On/Off Vehicle Switch (1) - Install - On/Off Vehicle Switch Replacement

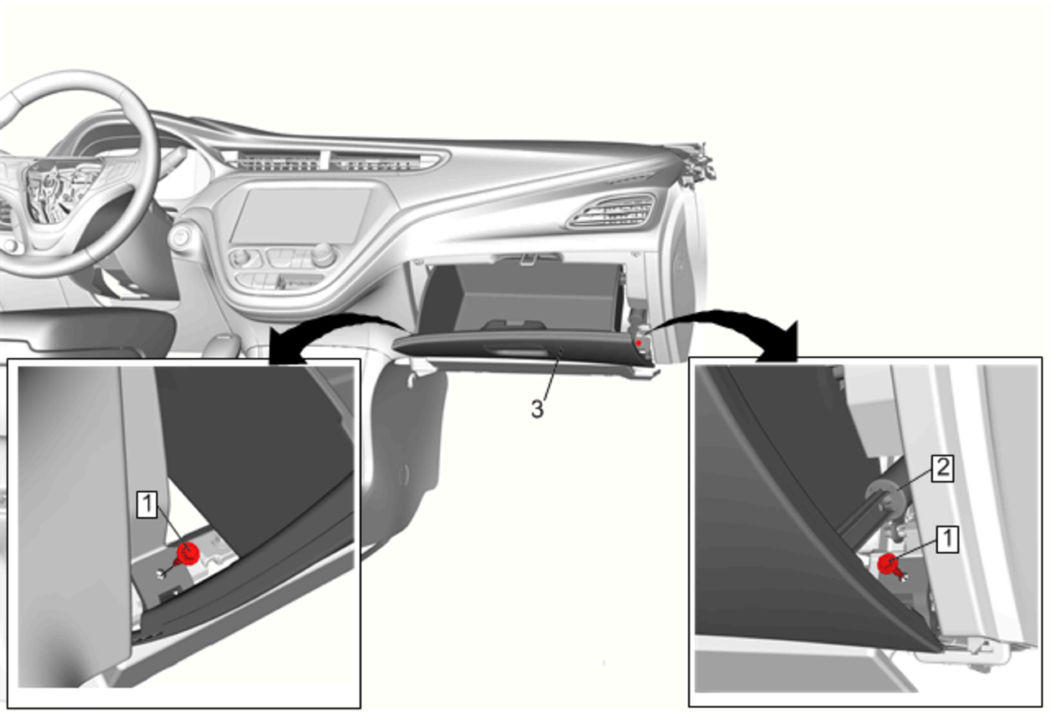

  19. GM4535525Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (3) - Install - Instrument Panel Compartment Replacement

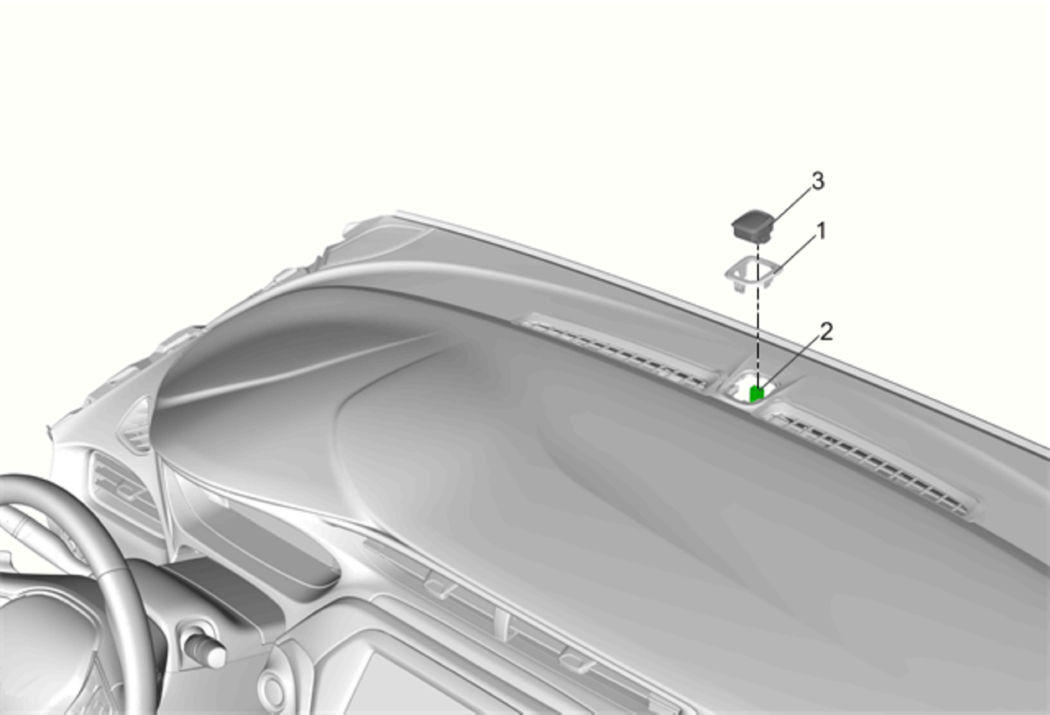

  20. GM4522533Courtesy of GENERAL MOTORS COMPANY

    Sun Load, Ambient Light, and Charge Indicator Sensor (3) - Install - Sun Load, Ambient Light, and Charge Indicator Sensor Replacement

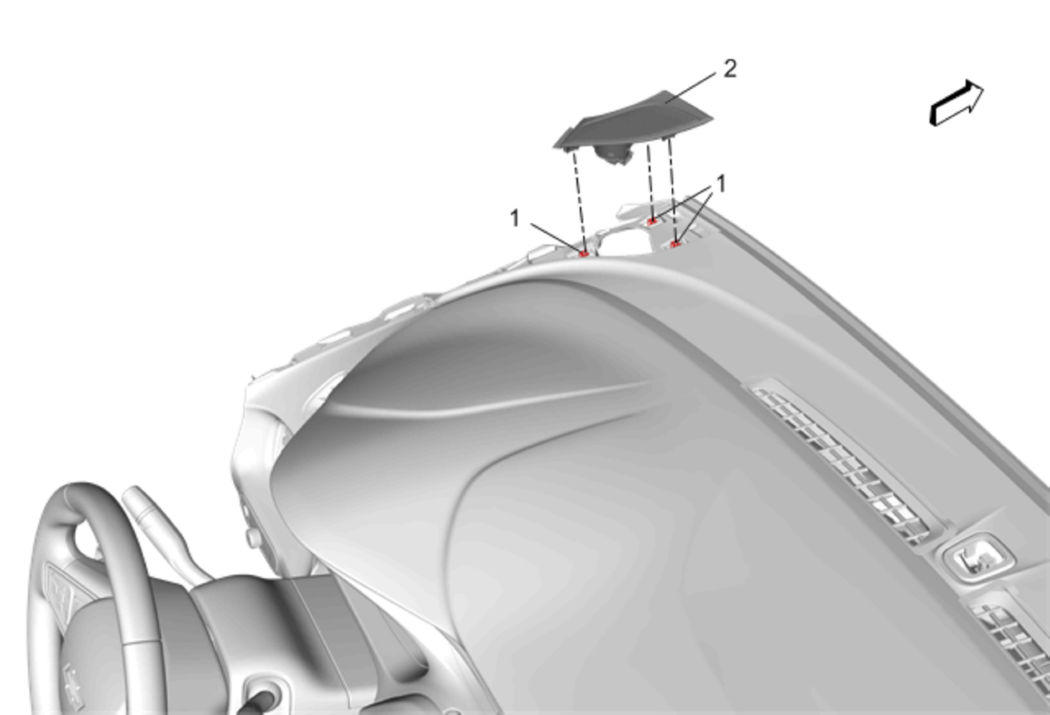

  21. GM4522529Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker Grille (2) - Install [ 2x ] - Radio Front Speaker Grille Replacement

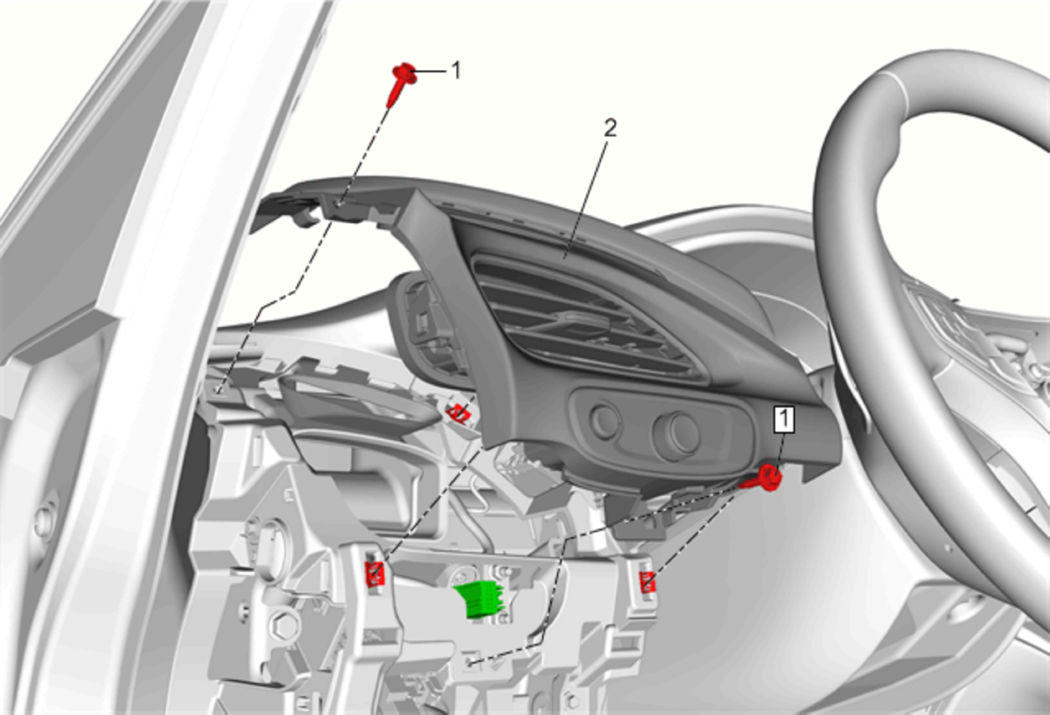

  22. GM4540211Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (2) - Install - Instrument Panel Trim Pad Replacement - Left Side

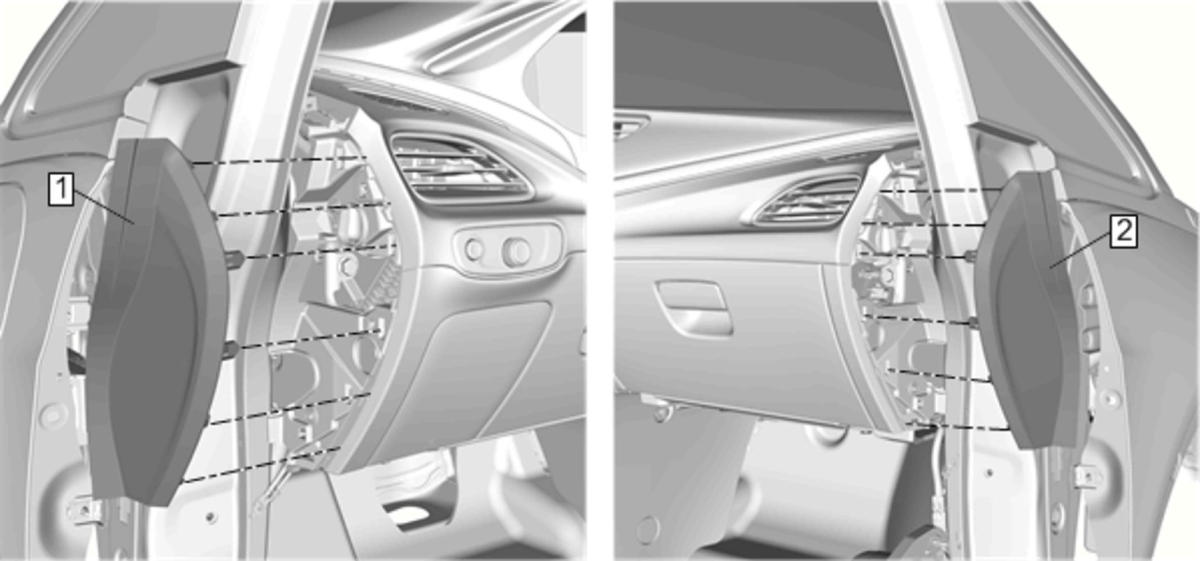

  23. GM4540195Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Right Side (2) - Install - Instrument Panel Outer Trim Cover Replacement

  24. GM4542621Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding (1) - Install [ 2x ] - Windshield Garnish Molding Replacement

  25. GM4535541Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Replacement

  26. GM4539435Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install - Steering Column Replacement

  27. Enable the SIR System. SIR Disabling and Enabling
