Windshield Wiper System Module Replacement

WARNING: This page is about a different car, the 2020 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

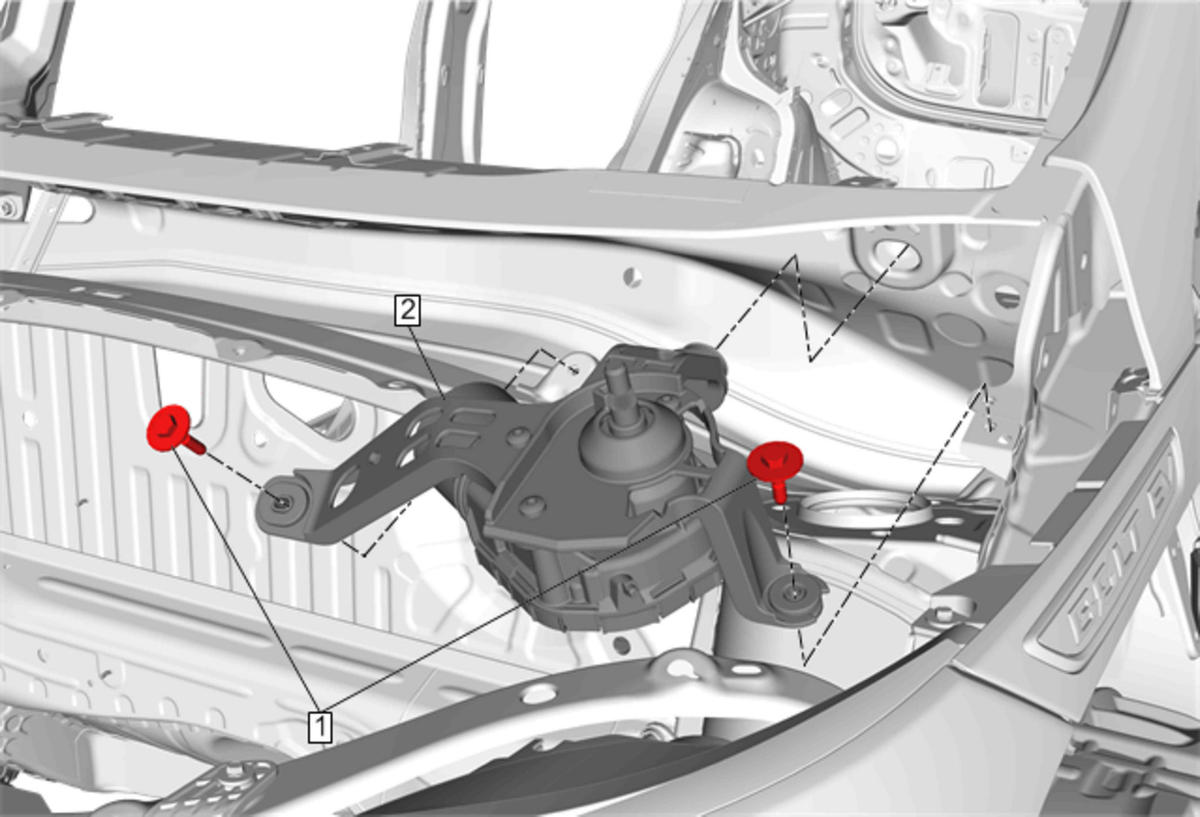

Callout	Component Name
NOTE: The windshield wiper arm adjustment procedure contains important instructions. Always reference the adjustment procedure when removing or replacing the windshield wiper system module. Windshield Wiper Arm Adjustment Preliminary Procedure Air Inlet Grille Panel Replacement
1	Windshield Wiper System Module Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Windshield Wiper System Module Procedure Disconnect the electrical connector.
