UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 3

WARNING: This page is about a different car, the 2020 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

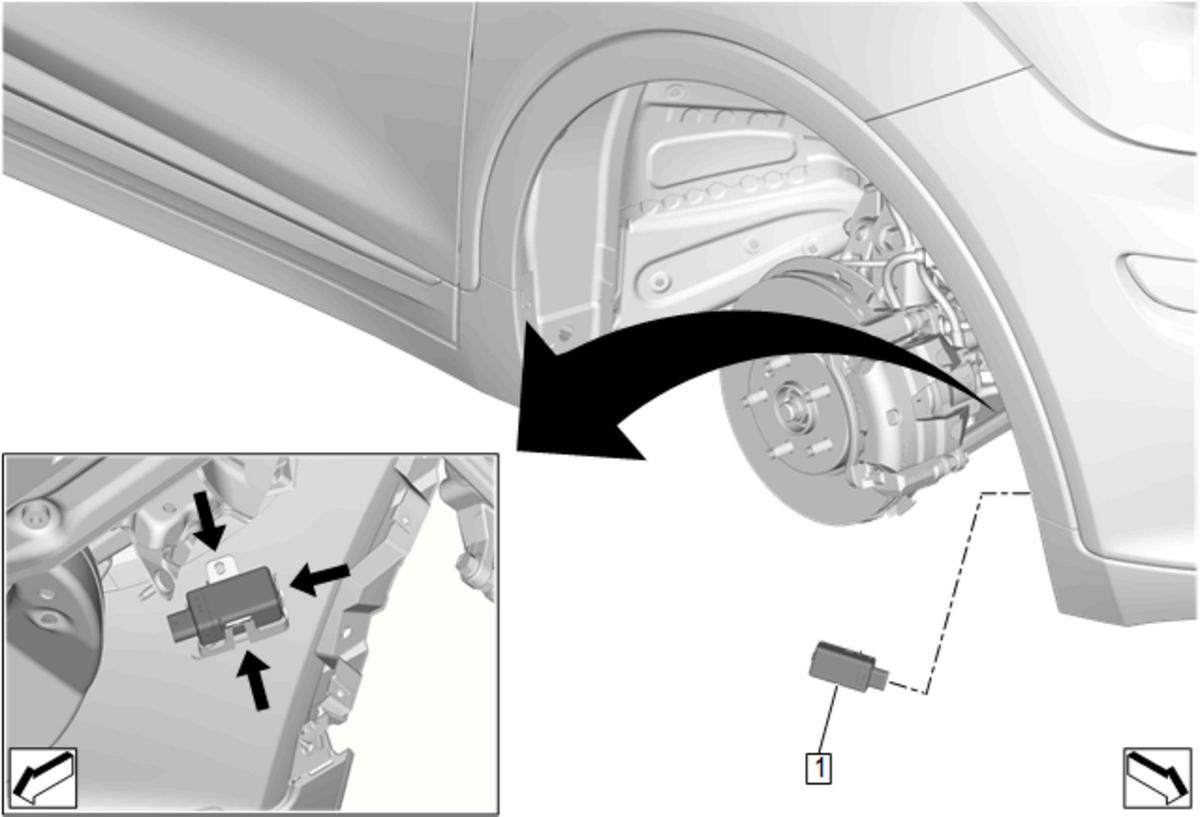

GM5133857Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the right side front wheelhouse liner. Front Wheelhouse Liner Replacement
1 UHF Low Energy Remote Control Access Sensor Transceiver - Position 3

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
