UHF Short Range Low Energy Remote Control Access Transceiver Replacement

WARNING: This page is about a different car, the 2020 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

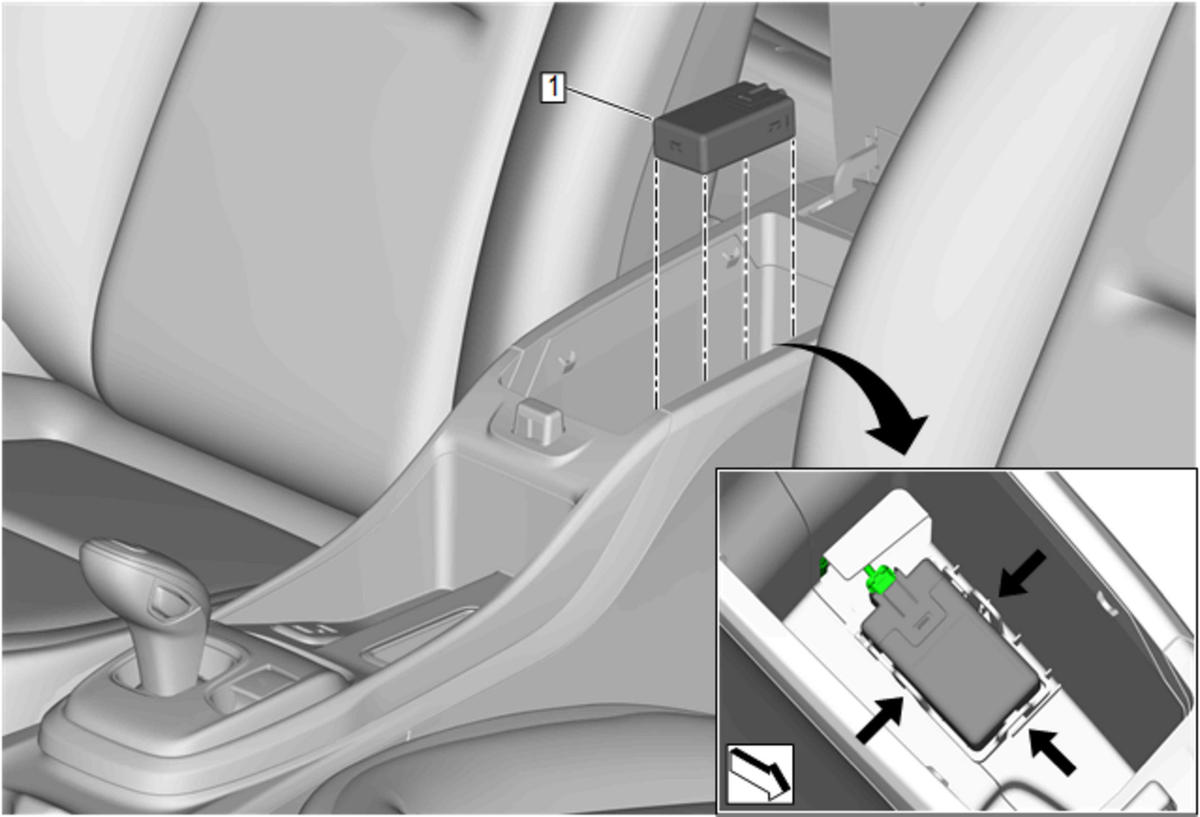

GM5132341Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Compartment Liner Replacement
1 UHF Short Range Low Energy Remote Control Access Transceiver

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
