Installation Procedure
WARNING: This page is about a different car, the 2020 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

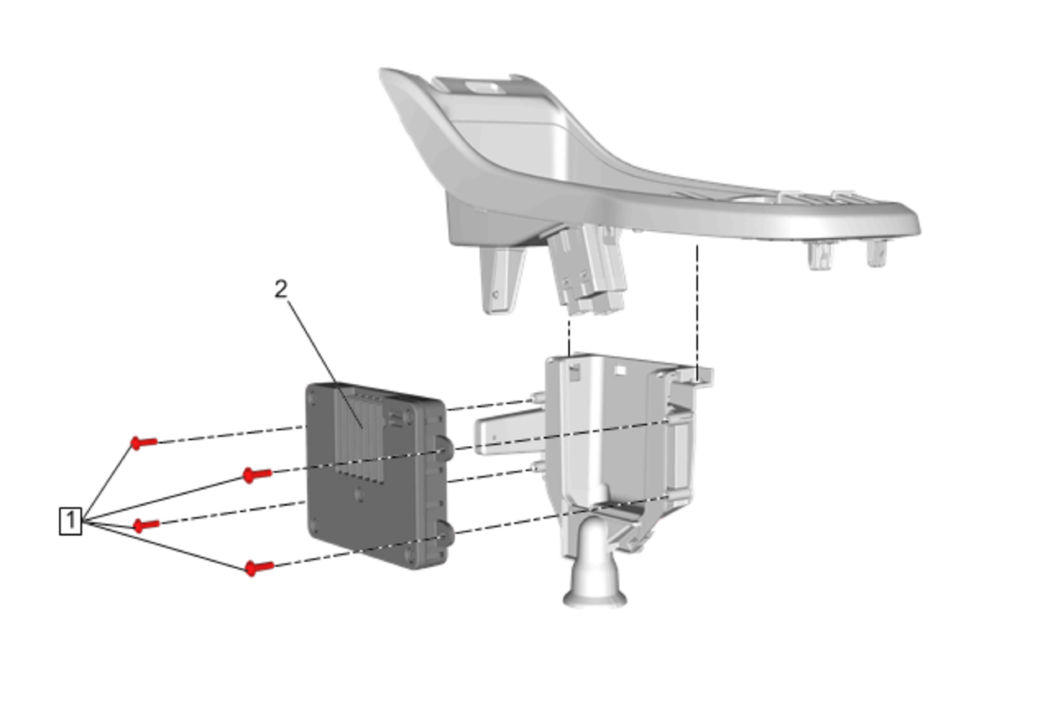

Wireless Charging System Module (2) @ Wireless Charging System Module Bracket - Install
- Wireless Charging System Module Bracket Screw (1) - Install and tighten [4x] 1 N.m (9 lb in)

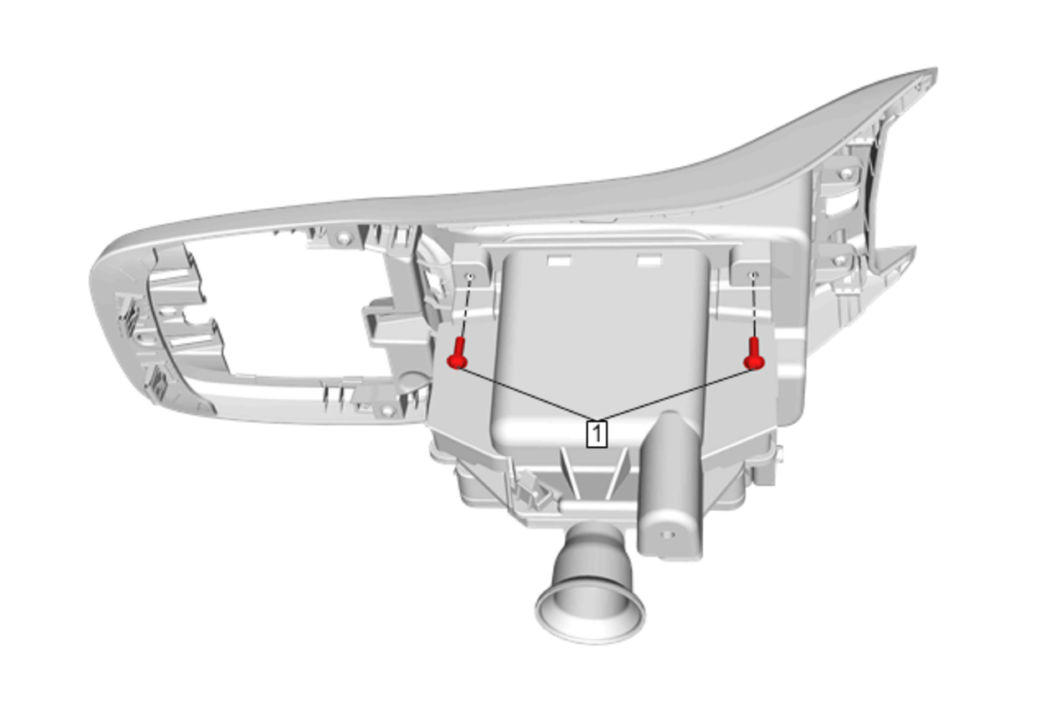

Wireless Charging System Module Bracket Screw (1) - Install and tighten [2x] 1 N.m (9 lb in)

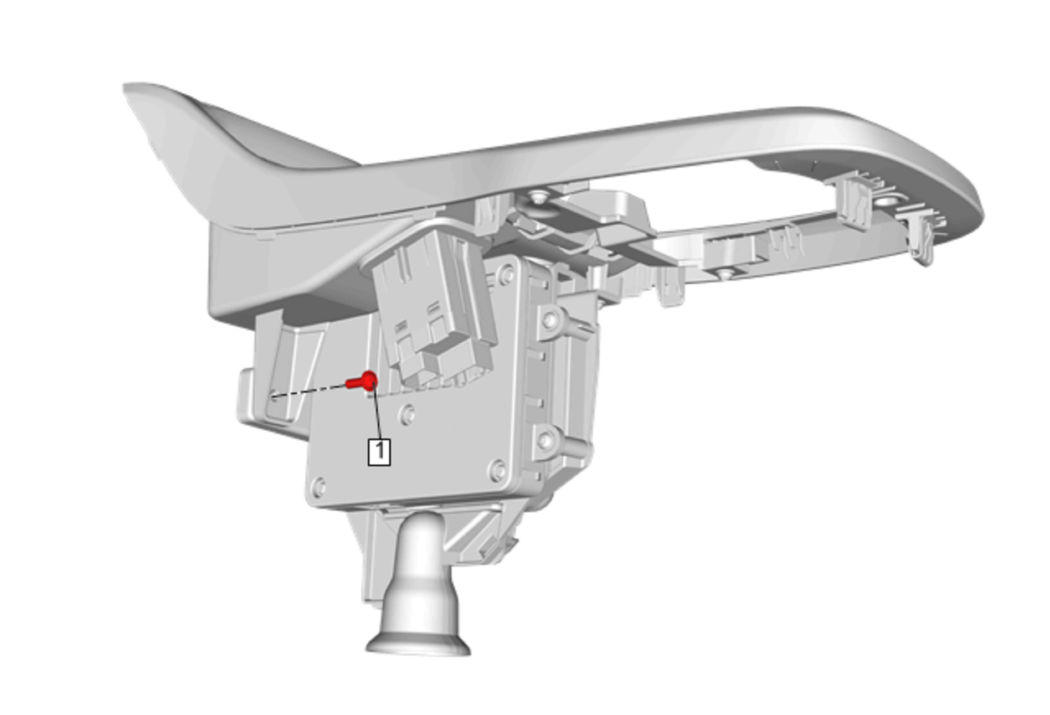

Wireless Charging System Module Bracket Screw (1) - Install and tighten 1 N.m (9 lb in)

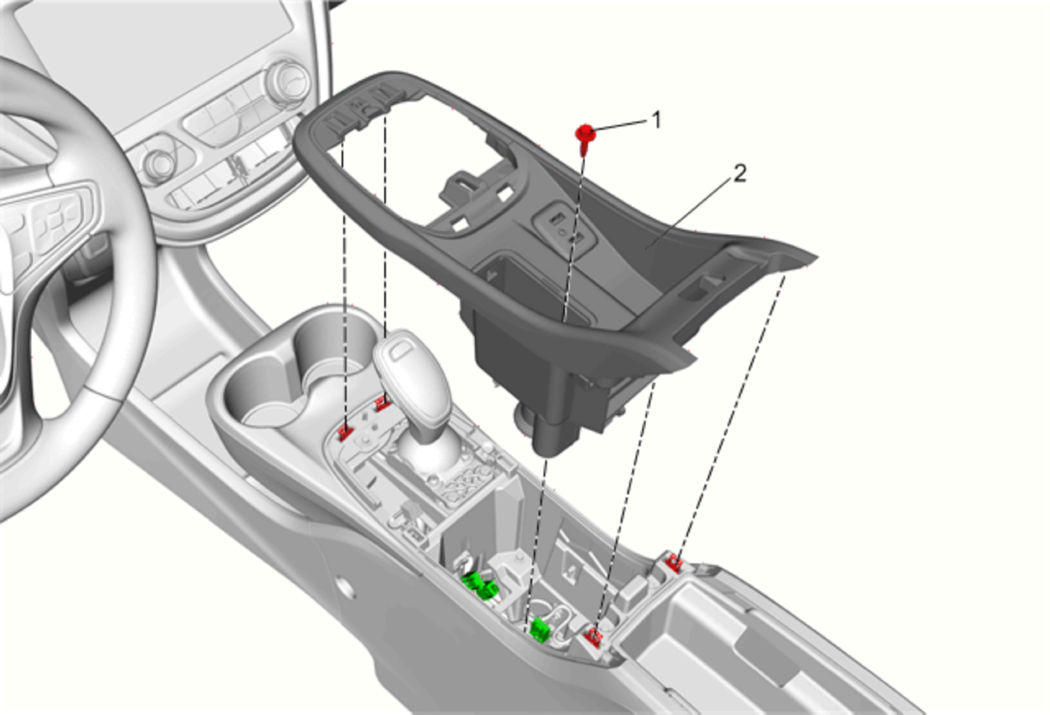

Rear Floor Console Stowage Tray (2) - Install - Rear Floor Console Stowage Tray Replacement (without K4C) , or Rear Floor Console Stowage Tray Replacement (with K4C)
