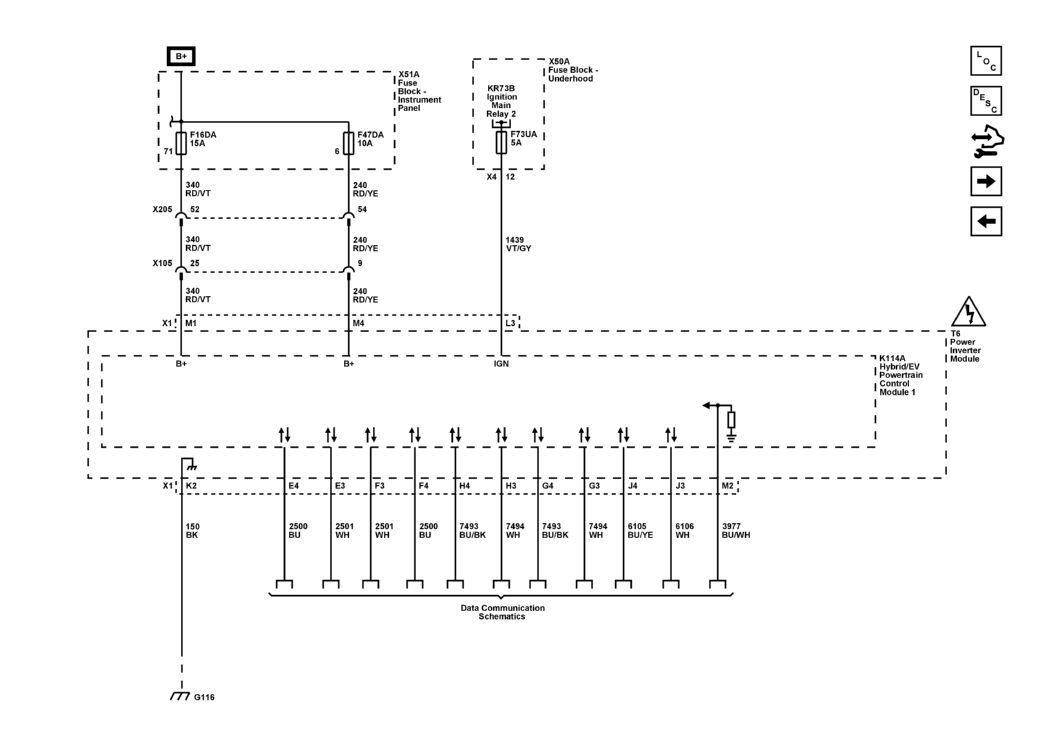

Hybrid/EV Powertrain Control Module 1/Power Inverter Module Power, Ground, and Data Communication

GM5651143Courtesy of GENERAL MOTORS COMPANY
