Low Frequency Console Antenna Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Rear Trim Panel-Endcap - Remove - Front Floor Console Rear Trim Panel Replacement (Endcap)

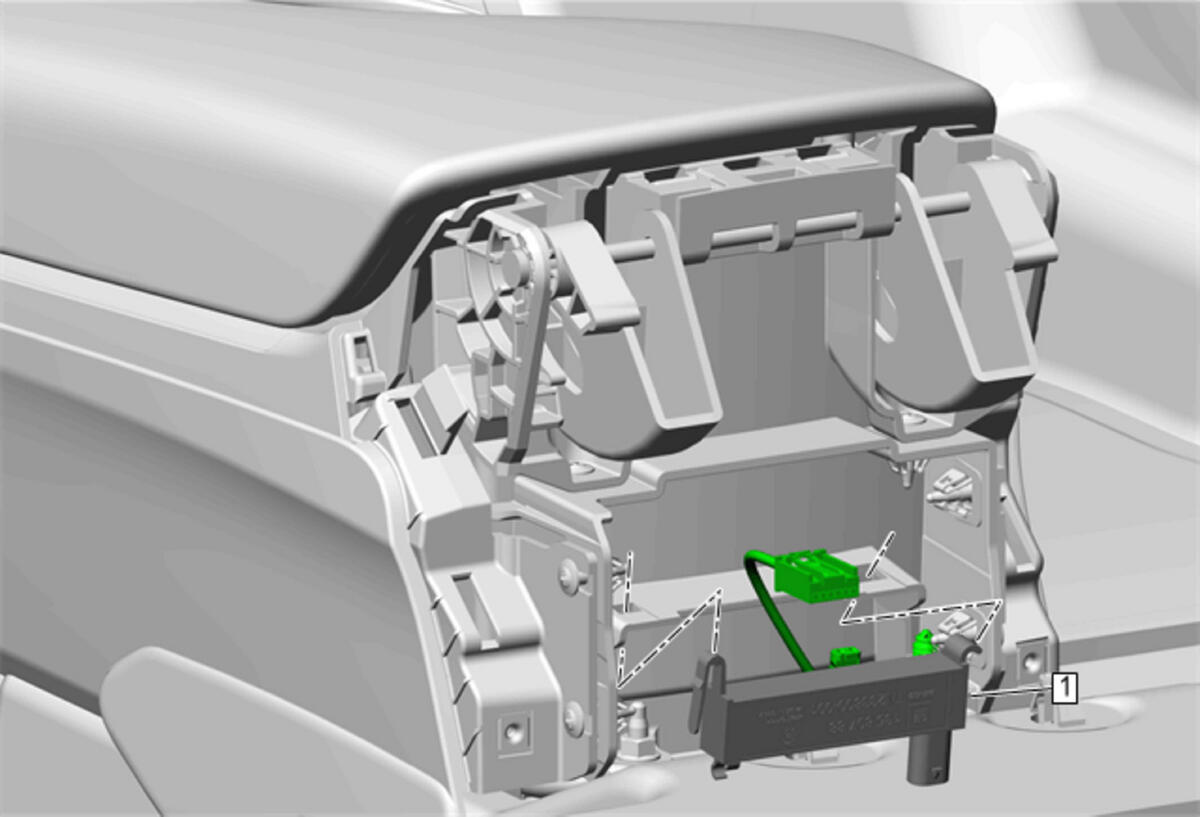

1	Low Frequency Console Antenna Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Front Floor Console Rear Trim Panel-Endcap - Remove - Front Floor Console Rear Trim Panel Replacement (Endcap)

Low Frequency Console Antenna

Procedure
