Remote Function Actuator Module Replacement (Convertible)
Remote Function Actuator Module Replacement (Convertible)
Courtesy of GENERAL MOTORS COMPANY

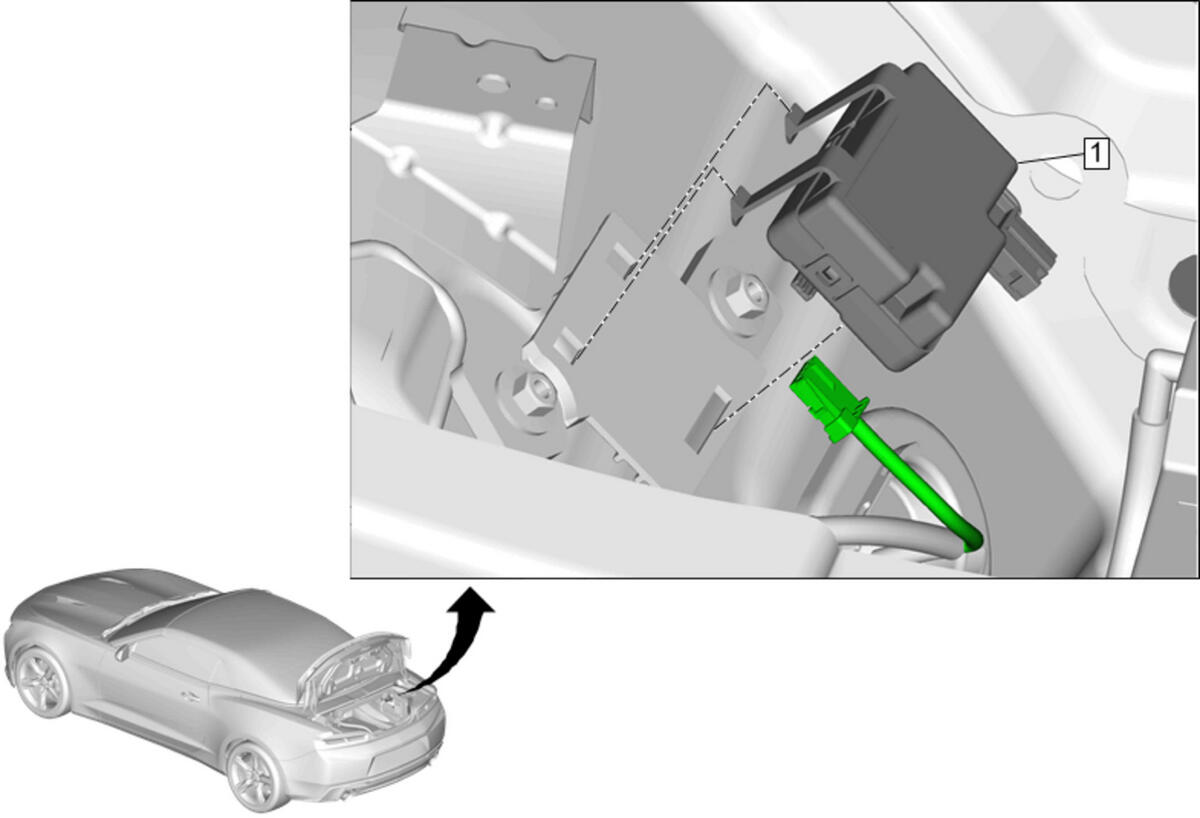

Callout
Component Name
Preliminary Procedure
Place the folding top in the full closed position.
1
Remote Control Door Lock Receiver
Procedure
Disconnect the electrical connector.
Release the retaining tabs.
