Home › Chevrolet › 2021 › Camaro LS, Automatic Trans › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Passive and Keyless Start

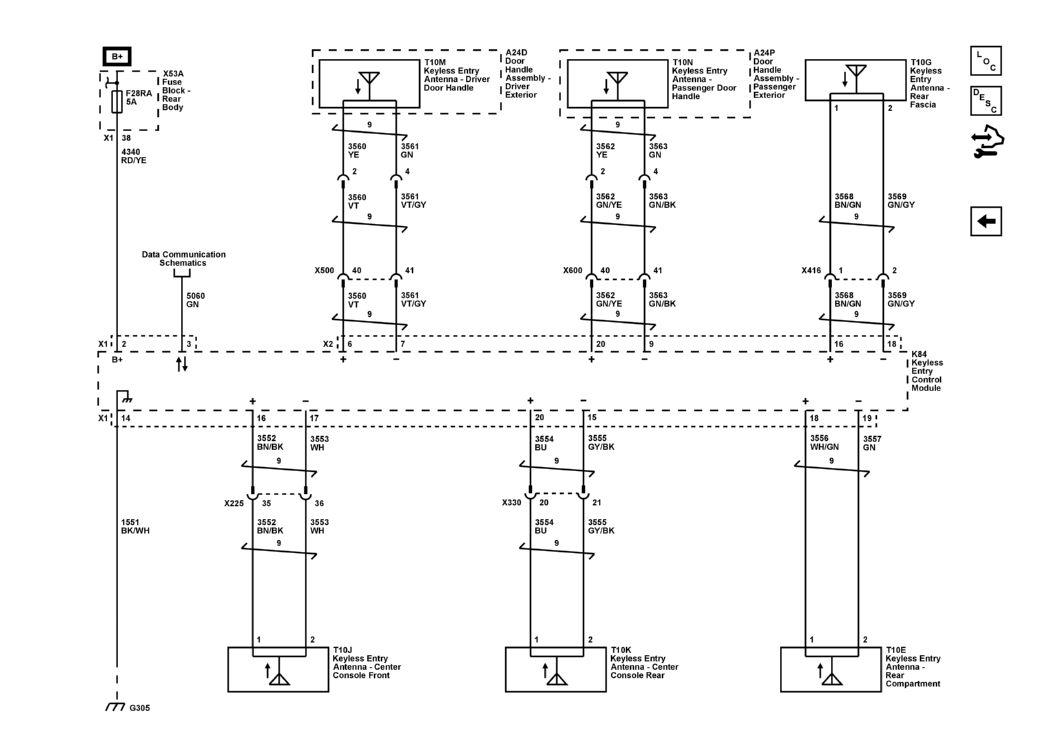

Keyless Entry - Passive and Keyless Start

GM5457368Courtesy of GENERAL MOTORS COMPANY
