Front Side Door Window Weatherstrip Replacement

Courtesy of GENERAL MOTORS COMPANY

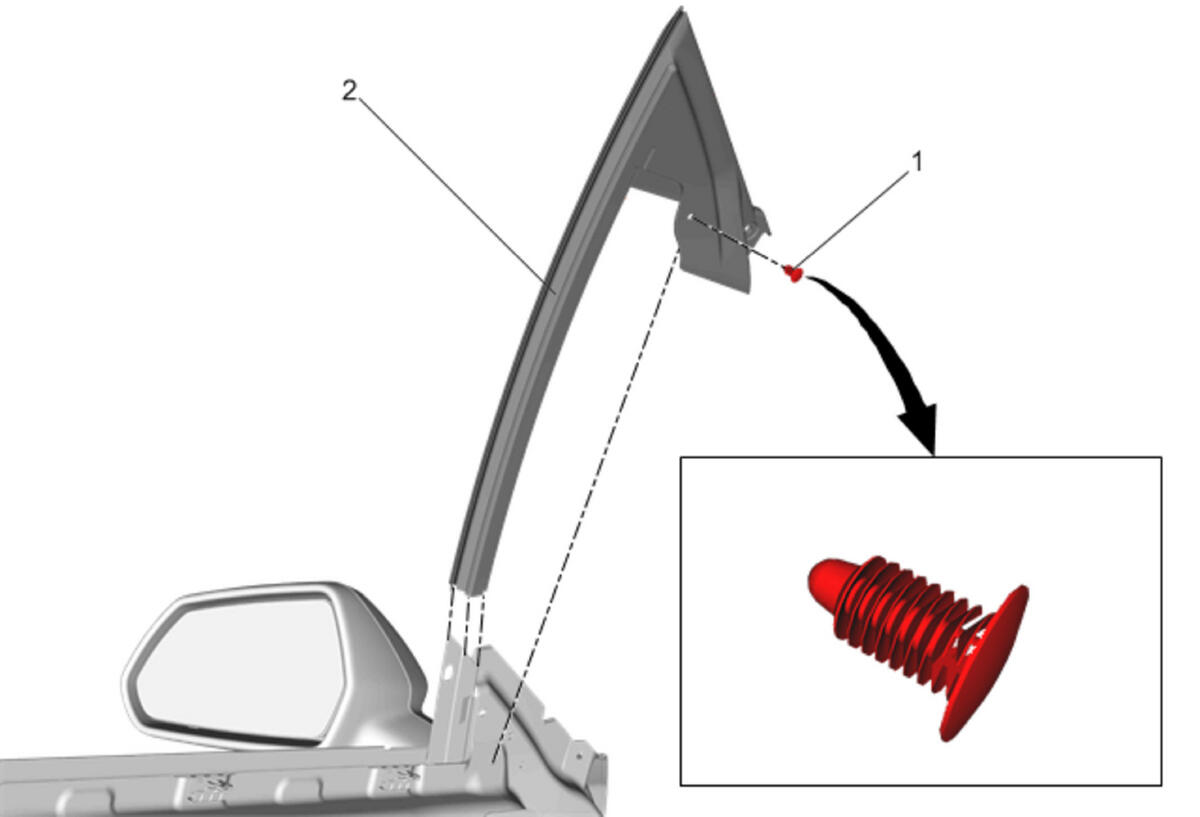

Callout	Component Name
Preliminary Procedure Lower window all the way down. Front Side Door Window Belt Reveal Molding Replacement
1	Weatherstrip Retainer
2	Front Side Door Weatherstrip Procedure Using the appropriate tool, remove the weatherstrip retainer. Pull up to remove weatherstrip from weatherstrip channel. NOTE: Apply a soapy water solution to the outside of the glass weatherstrip run channel prior to sliding weatherstrip in position.

Callout

Component Name

Preliminary Procedure

Weatherstrip Retainer

Front Side Door Weatherstrip

Procedure

NOTE:

Apply a soapy water solution to the outside of the glass weatherstrip run channel prior to sliding weatherstrip in position.
