Quarter Window Replacement (Convertible)

Courtesy of GENERAL MOTORS COMPANY

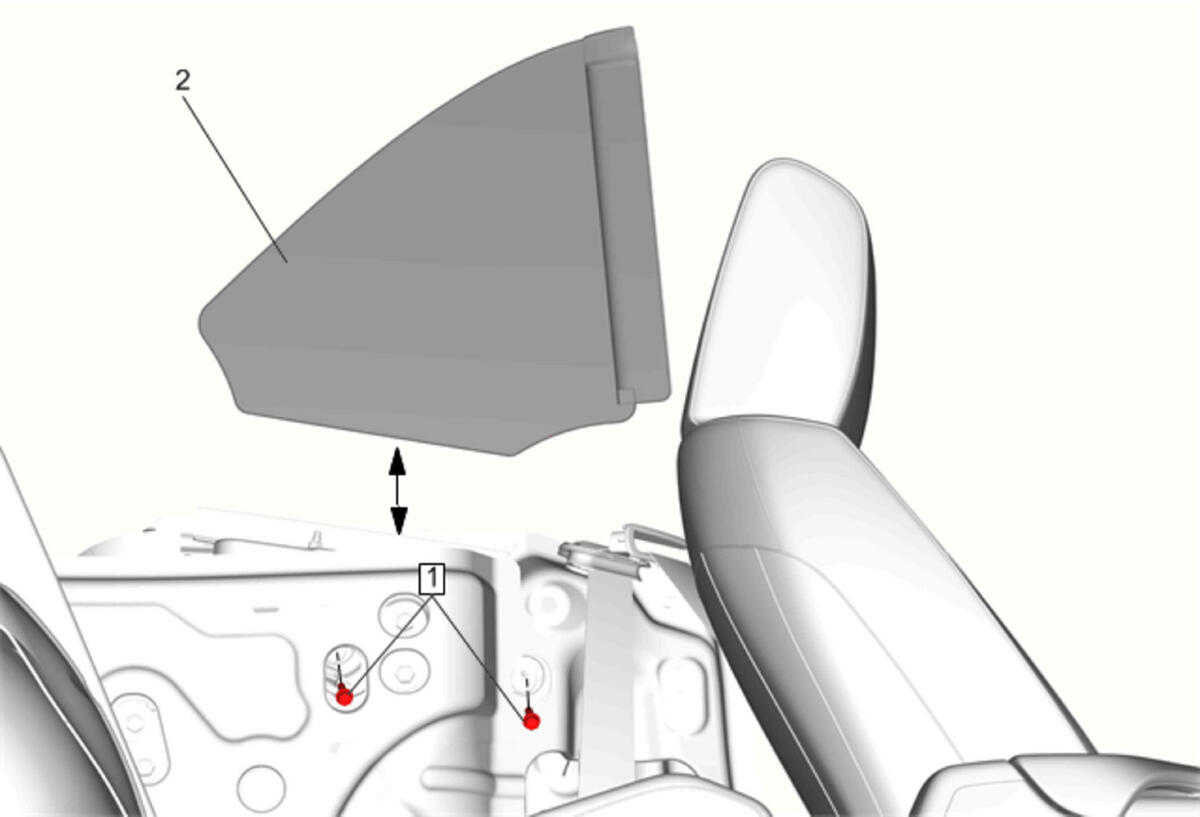

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Convertible) Front Side Door Weatherstrip Replacement - Body Side (Convertible) Quarter Window Outer Belt Sealing Strip Replacement Folding Top Stowage Compartment Lid Weatherstrip Replacement
1	Folding Top Quarter Window Bolt [2x] CAUTION: Refer to Fastener Caution . Procedure It is not necessary to completely remove the quarter window bolts, just loosen the bolts enough to remove the quarter window from the window regulator. Tighten 10 N.m (89 lb in)
2	Folding Top Quarter Window

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Preliminary Procedure

Quarter Lower Rear Trim Panel Replacement (Convertible)
Front Side Door Weatherstrip Replacement - Body Side (Convertible)
Quarter Window Outer Belt Sealing Strip Replacement
Folding Top Stowage Compartment Lid Weatherstrip Replacement

Folding Top Quarter Window Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Procedure
It is not necessary to completely remove the quarter window bolts, just loosen the bolts enough to remove the quarter window from the window regulator.
Tighten
10 N.m (89 lb in)

Folding Top Quarter Window
