Home › Chevrolet › 2021 › Camaro LS, Automatic Trans › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Schematic Wiring Diagrams › Moveable Window Wiring Schematics › Driver

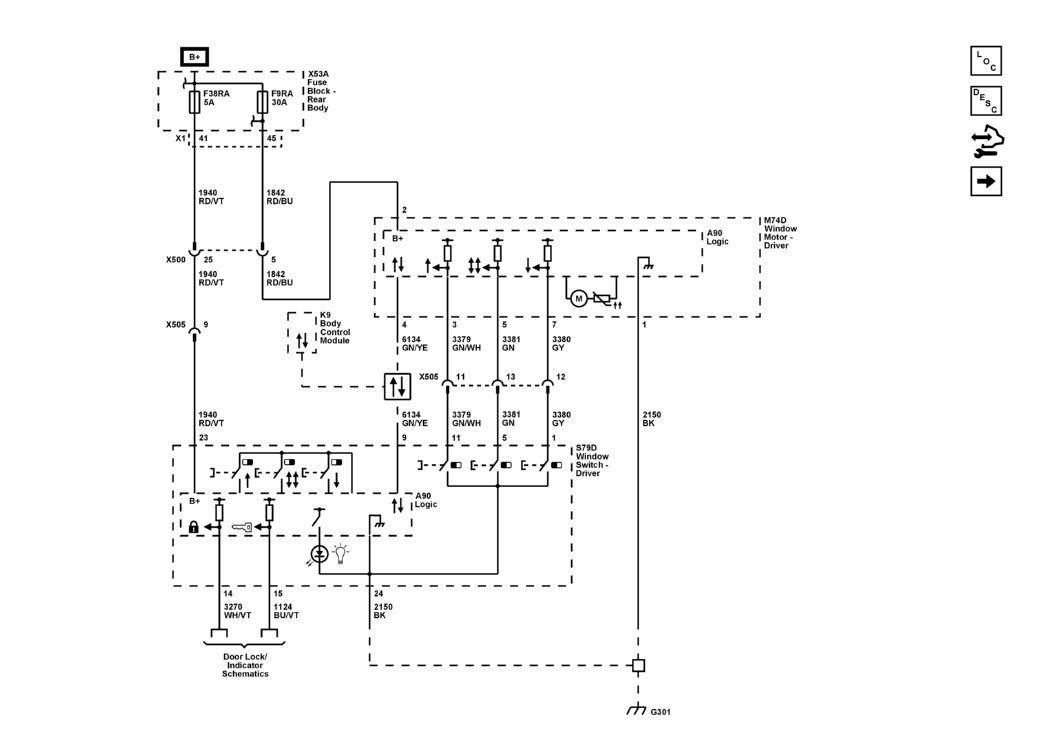

Moveable Window Wiring Schematics: Driver

GM5457182Courtesy of GENERAL MOTORS COMPANY
