Outside Rearview Mirror Replacement

Courtesy of GENERAL MOTORS COMPANY

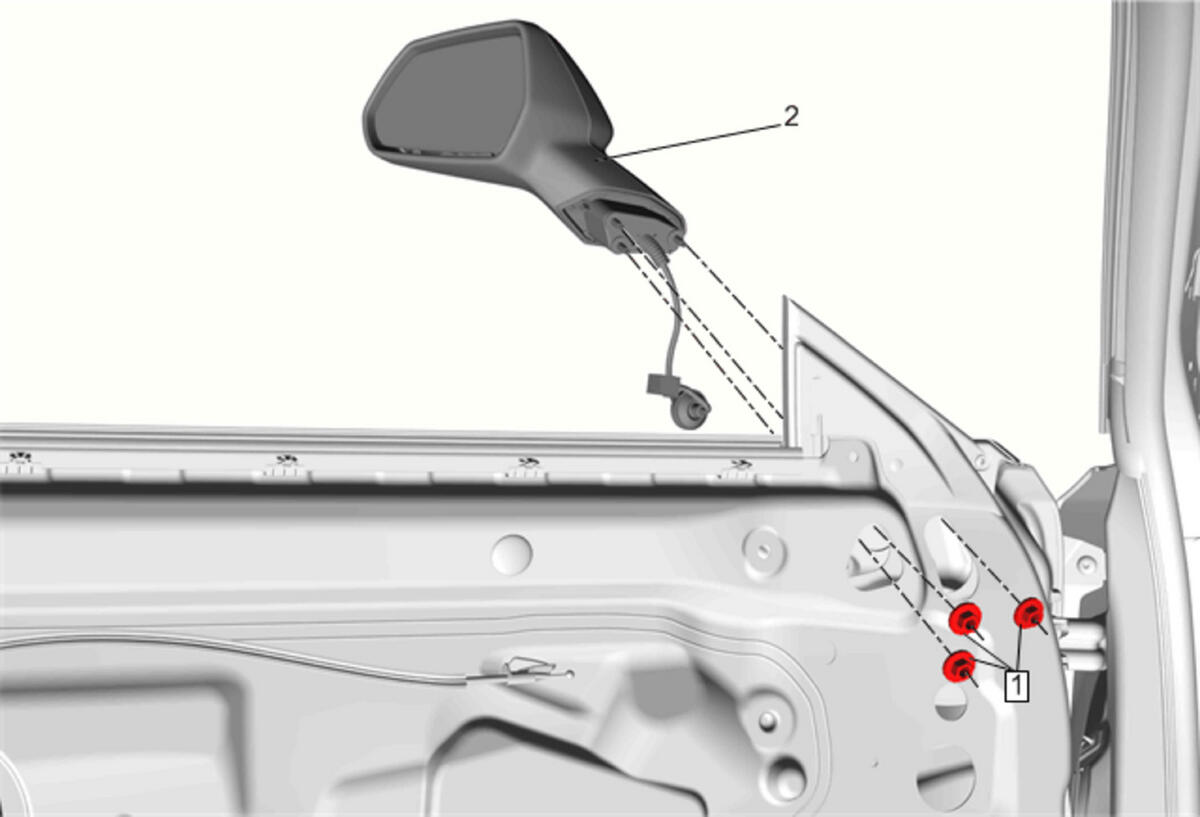

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Front Side Door Trim Replacement
1	Outside Rearview Mirror Nut [3x] CAUTION: Refer to Fastener Caution . Remove mirror nut access covers. Tighten  9 N.m (80 lb in)
2	Outside Rearview Mirror Procedure  Disconnect the electrical connector.
