Driver or Passenger Seat Adjuster Memory Module Replacement

Courtesy of GENERAL MOTORS COMPANY

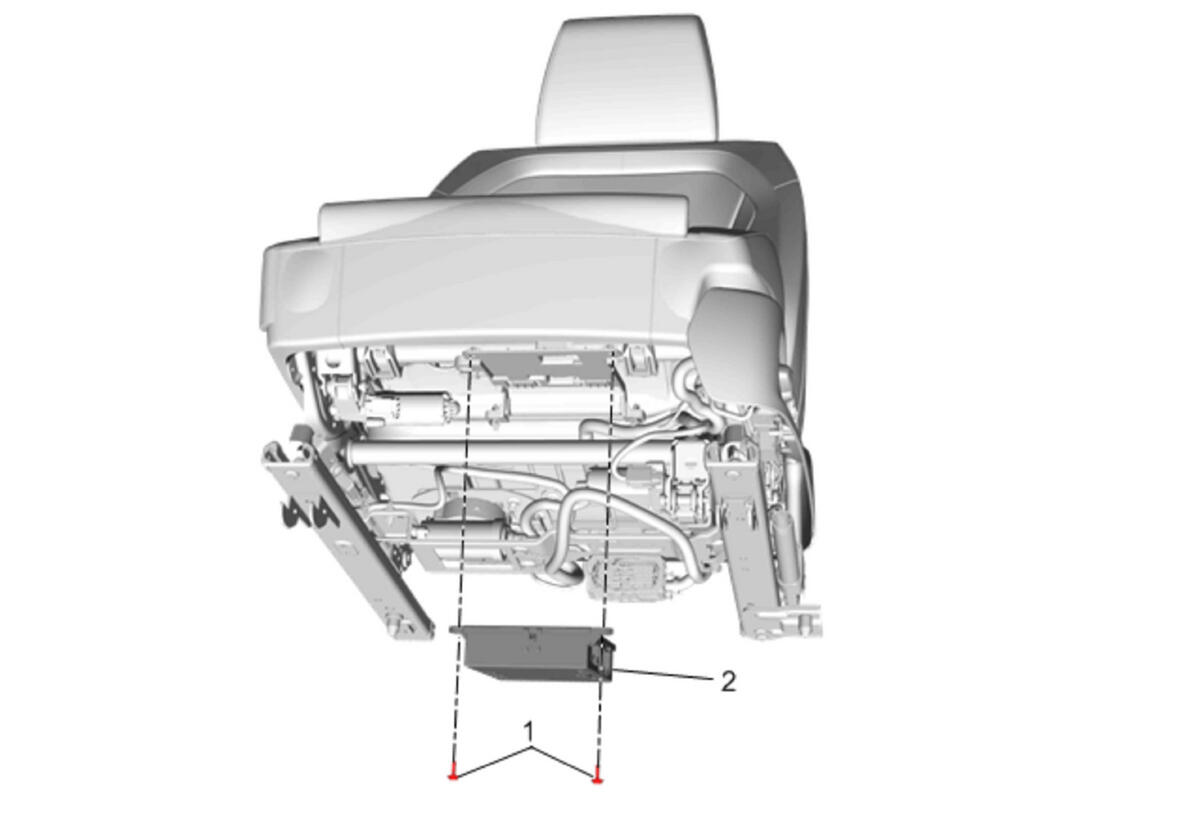

Callout	Component Name
Preliminary Procedure Front Seat Removal and Installation
1	Driver or Passenger Seat Adjuster Memory Module Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Driver or Passenger Seat Adjuster Memory Module Procedure Disconnect the electrical connector. Control Module References for programming and setup information, if required.

Callout

Component Name

Driver or Passenger Seat Adjuster Memory Module Fastener [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Driver or Passenger Seat Adjuster Memory Module

Procedure
