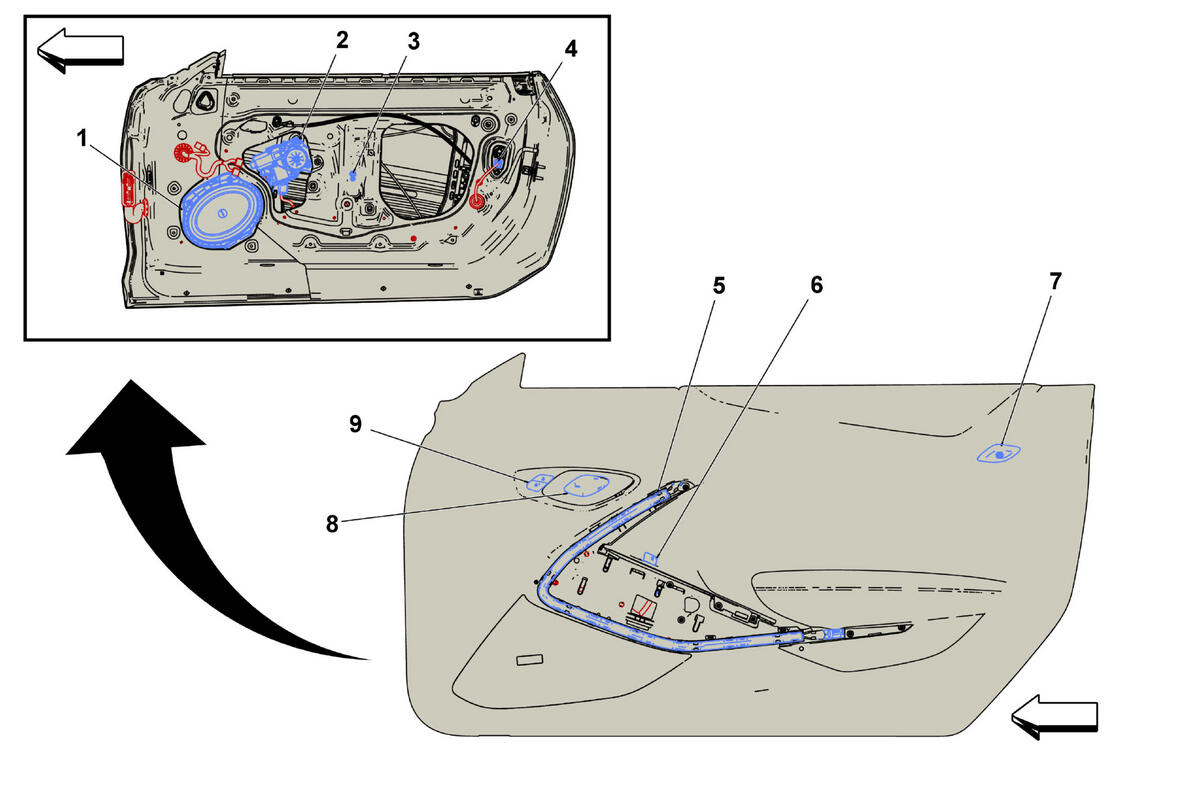

Passenger Door Trim Components
Passenger Door Trim Components
| Component Name | Callout |
|---|---|
| P19AH Speaker - Right Front Door P19AH Speaker - Right Front Door | 1 |
| M74P Window Motor - Passenger M74P Window Motor - Passenger | 2 |
| B63RF Side Impact Sensor - Right Front B63RF Side Impact Sensor - Right Front | 3 |
| A23P Door Latch Assembly - Passenger A23P Door Latch Assembly - Passenger | 4 |
| E1P Accent Lamp - Passenger Door (C70) E1P Accent Lamp - Passenger Door X1 , or E1P Accent Lamp - Passenger Door X2 | 5 |
| S79P Window Switch - Passenger S79P Window Switch - Passenger | 6 |
| B77RF Radio Volume Compensator Interior Noise Microphone - Right Front (NKC) B77RF Radio Volume Compensator Interior Noise Microphone - Right Front | 7 |
| E63P Flood Lamp - Passenger Door Handle E63P Flood Lamp - Passenger Door Handle | 8 |
| S13P Door Lock Switch - Passenger S13P Door Lock Switch - Passenger | 9 |
