Folding Top Components - Controls
Folding Top Components - Controls

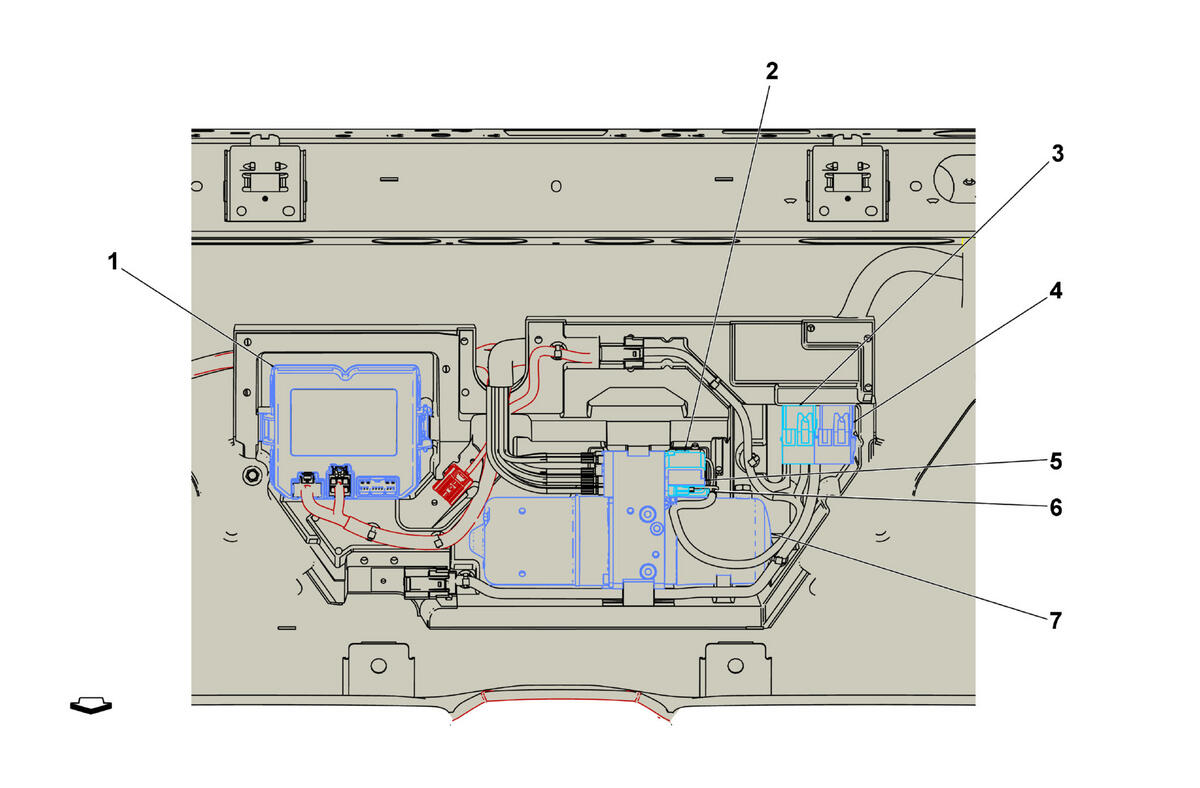

| Component Name | Callout |
|---|---|
| K23 Folding Top Control Module (CM8) K23 Folding Top Control Module X1 (CM8) , or K23 Folding Top Control Module X2 (CM8) , or K23 Folding Top Control Module X3 | 1 |
| Q16A Folding Top Solenoid Valve 1 (CM8) Q16A Folding Top Solenoid Valve 1 (CM8) | 2 |
| KR149A Folding Top Pump Motor Relay 1 KR149A Folding Top Pump Motor Relay 1 | 3 |
| KR149B Folding Top Pump Motor Relay 2 KR149B Folding Top Pump Motor Relay 2 | 4 |
| Q16B Folding Top Solenoid Valve 2 (CM8) Q16B Folding Top Solenoid Valve 2 (CM8) | 5 |
| Q16C Folding Top Solenoid Valve 3 (CM8) Q16C Folding Top Solenoid Valve 3 (CM8) | 6 |
| M23 Folding Top Pump Motor (CM8) M23 Folding Top Pump Motor (CM8) | 7 |
