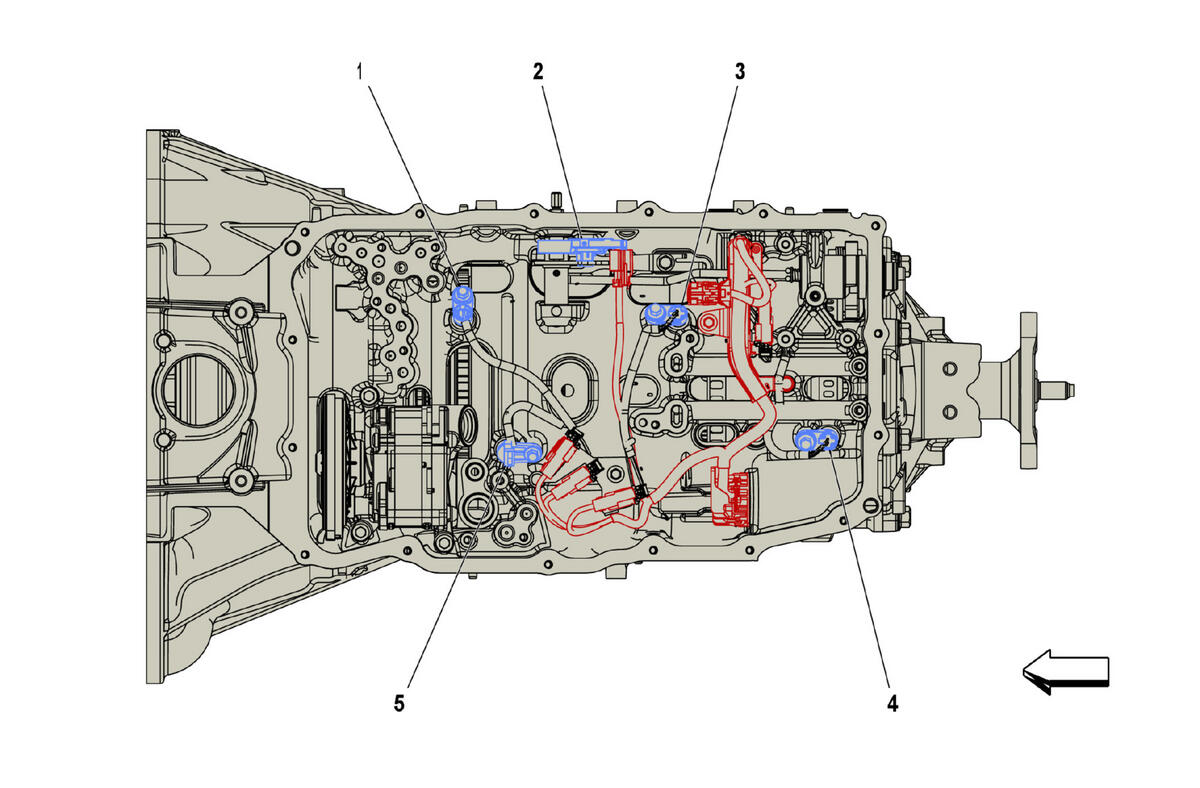

Automatic Transmission Case Components (MI1/MI2/MI4)
Automatic Transmission Case Components (MI1/MI2/MI4)
| Component Name | Callout |
|---|---|
| B14DA Transmission Intermediate Speed Sensor 1 (MF6/MGL) B14DA Transmission Intermediate Speed Sensor 1 | 1 |
| B303 Transmission Range Sensor (MGL) B303 Transmission Range Sensor | 2 |
| B14DB Transmission Intermediate Speed Sensor 2 (MF6/MGL) B14DB Transmission Intermediate Speed Sensor 2 | 3 |
| B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor (MN6/M13) | 4 |
| B14C Transmission Input Shaft Speed Sensor (MF6/MGL/M5T) B14C Transmission Input Shaft Speed Sensor (MI1/MI2/MI4) | 5 |
