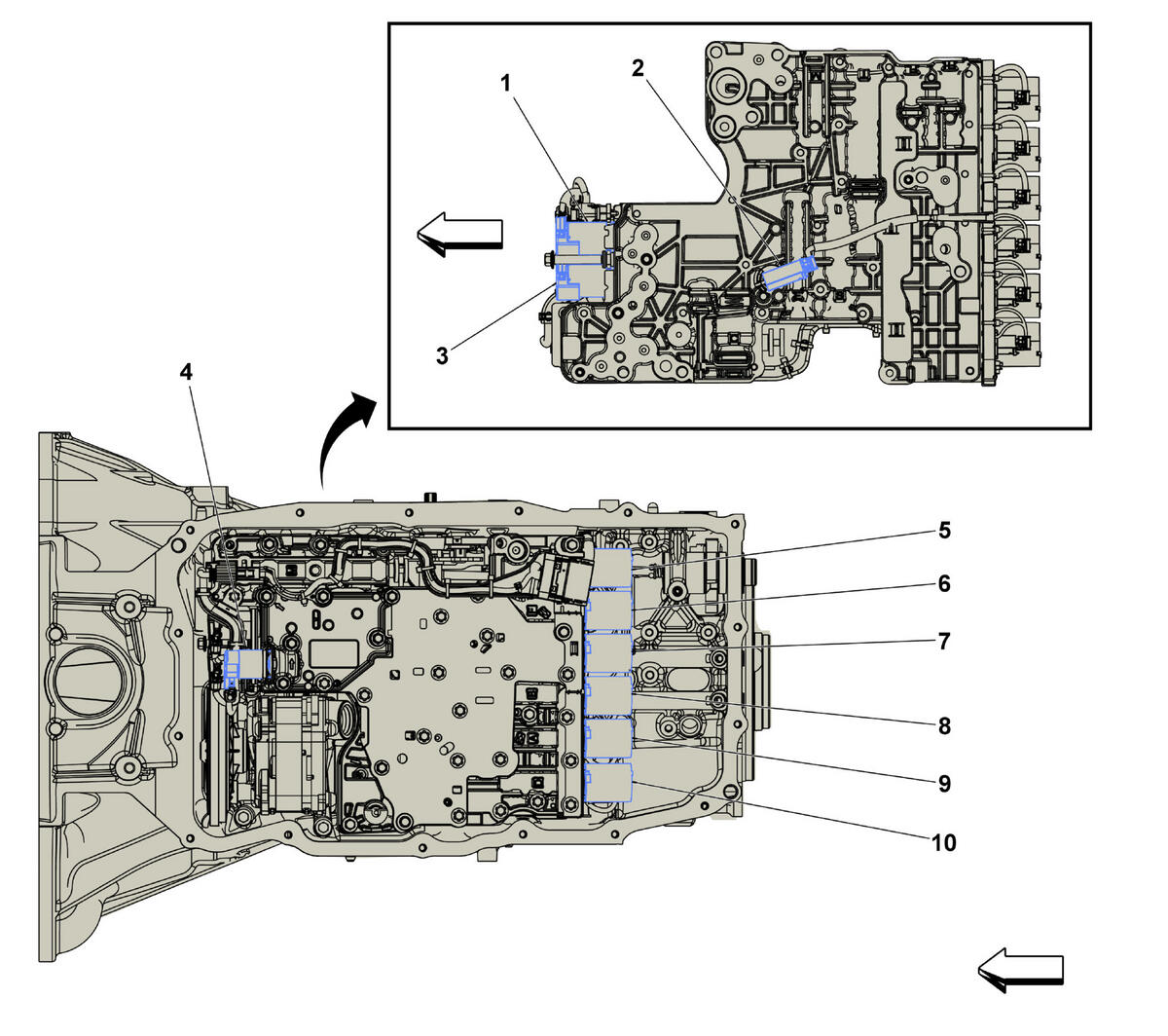

Automatic Transmission Valve Body Components (MI1/MI2/MI4)

Courtesy of GENERAL MOTORS COMPANY

Automatic Transmission Valve Body Components (MI1/MI2/MI4)

Component Name	Callout
Q77G Transmission Control Solenoid Valve 7 Q77G Transmission Control Solenoid Valve 7 (MI1/MI2/MI4)	1
B13 Transmission Fluid Temperature Sensor (MF6/MGL/M5T) B13 Transmission Fluid Temperature Sensor (MI1/MI2/MI4)	2
Q77H Transmission Control Solenoid Valve 8 Q77H Transmission Control Solenoid Valve 8 (MI1/MI2/MI4)	3
Q77J Transmission Control Solenoid Valve 9 Q77J Transmission Control Solenoid Valve 9 (MI1/MI2/MI4)	4
Q77C Transmission Control Solenoid Valve 3 Q77C Transmission Control Solenoid Valve 3 (MI1/MI2/MI4)	5
Q77F Transmission Control Solenoid Valve 6 Q77F Transmission Control Solenoid Valve 6 (MI1/MI2/MI4)	6
Q77E Transmission Control Solenoid Valve 5 Q77E Transmission Control Solenoid Valve 5 (MI1/MI2/MI4)	7
Q77B Transmission Control Solenoid Valve 2 Q77B Transmission Control Solenoid Valve 2 (MI1/MI2/MI4)	8
Q77A Transmission Control Solenoid Valve 1 Q77A Transmission Control Solenoid Valve 1 (MI1/MI2/MI4)	9
Q77D Transmission Control Solenoid Valve 4 Q77D Transmission Control Solenoid Valve 4 (MI1/MI2/MI4)	10
