Installation Procedure

  1. Connect the electrical connector.

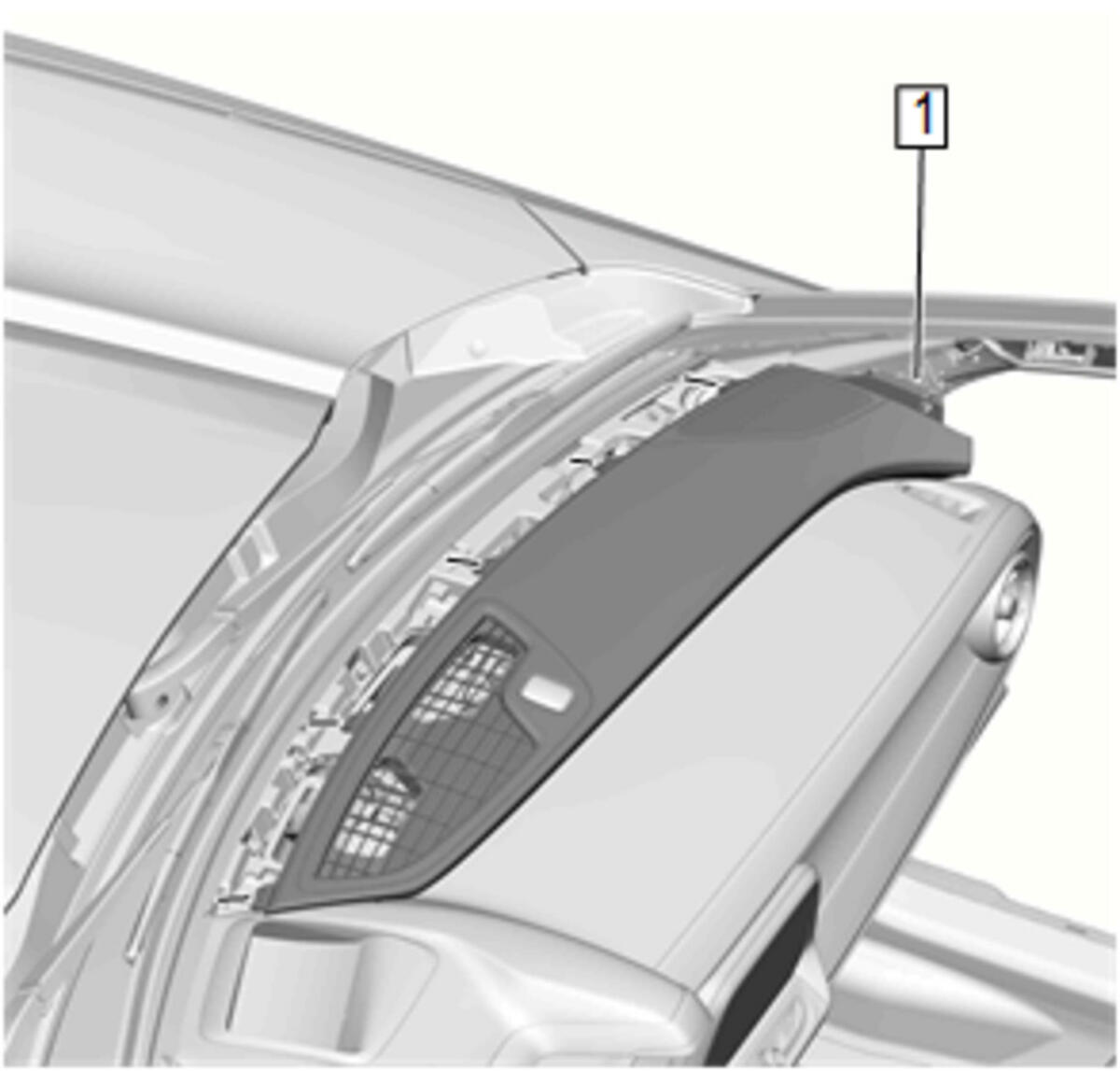

  2. GM4952560Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Install

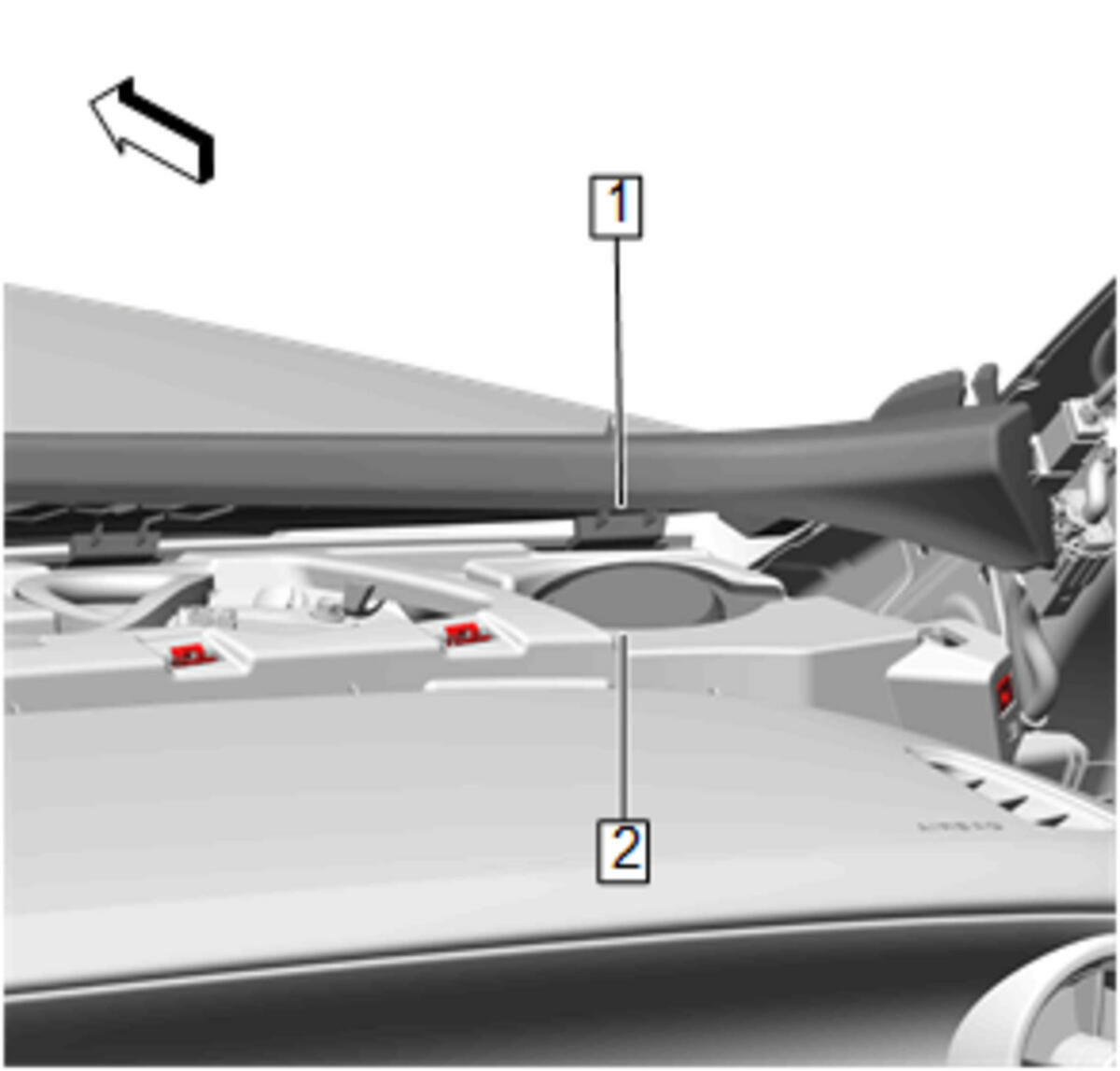

  3. GM4952562Courtesy of GENERAL MOTORS COMPANY

    While installing the front locating tabs from left to right be careful to clear the last tab (1) over the speaker.

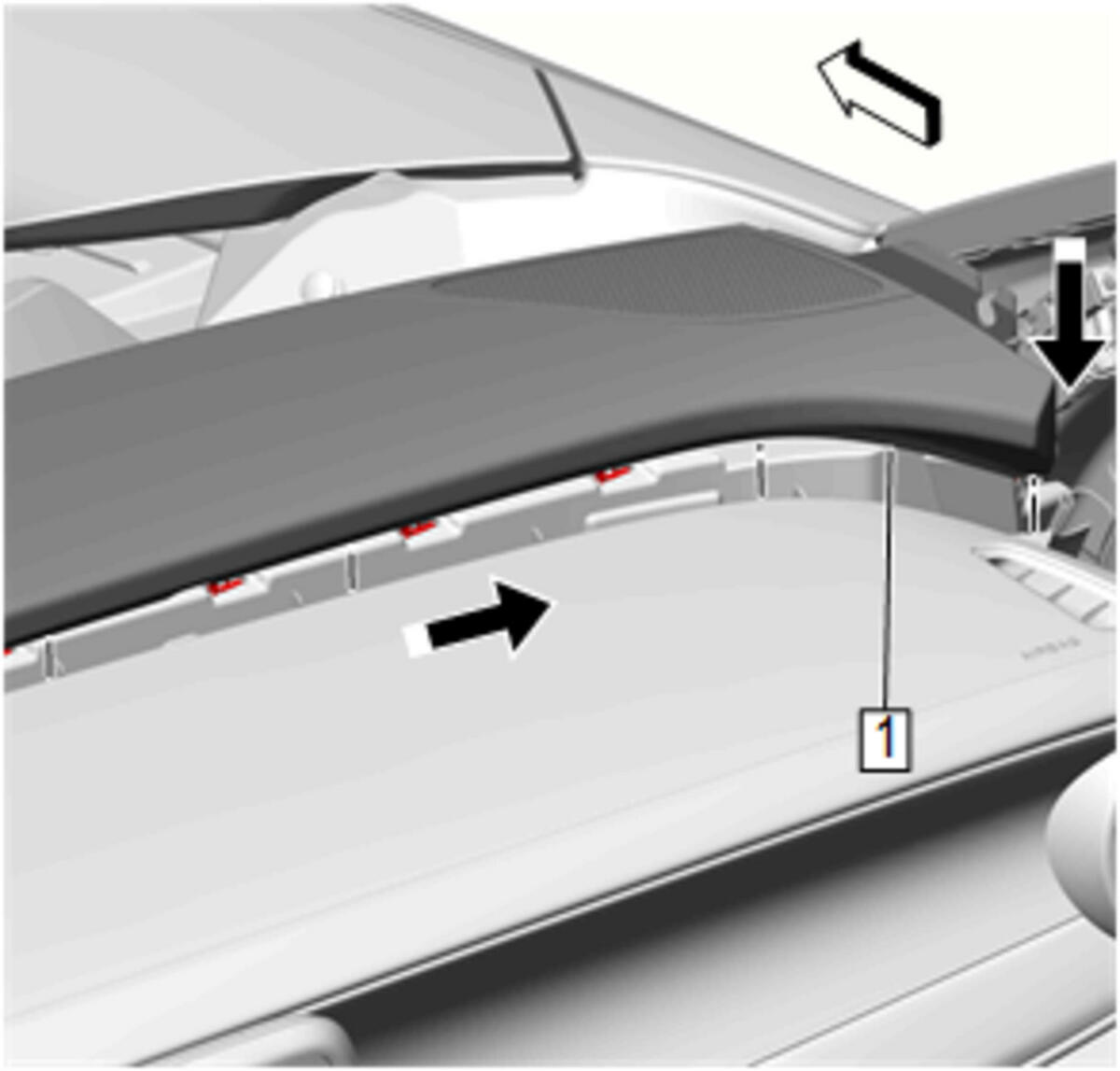

  4. GM4952556Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel extension (1) retainer clips.

  5. Connect the electrical connectors on the A-pillar.

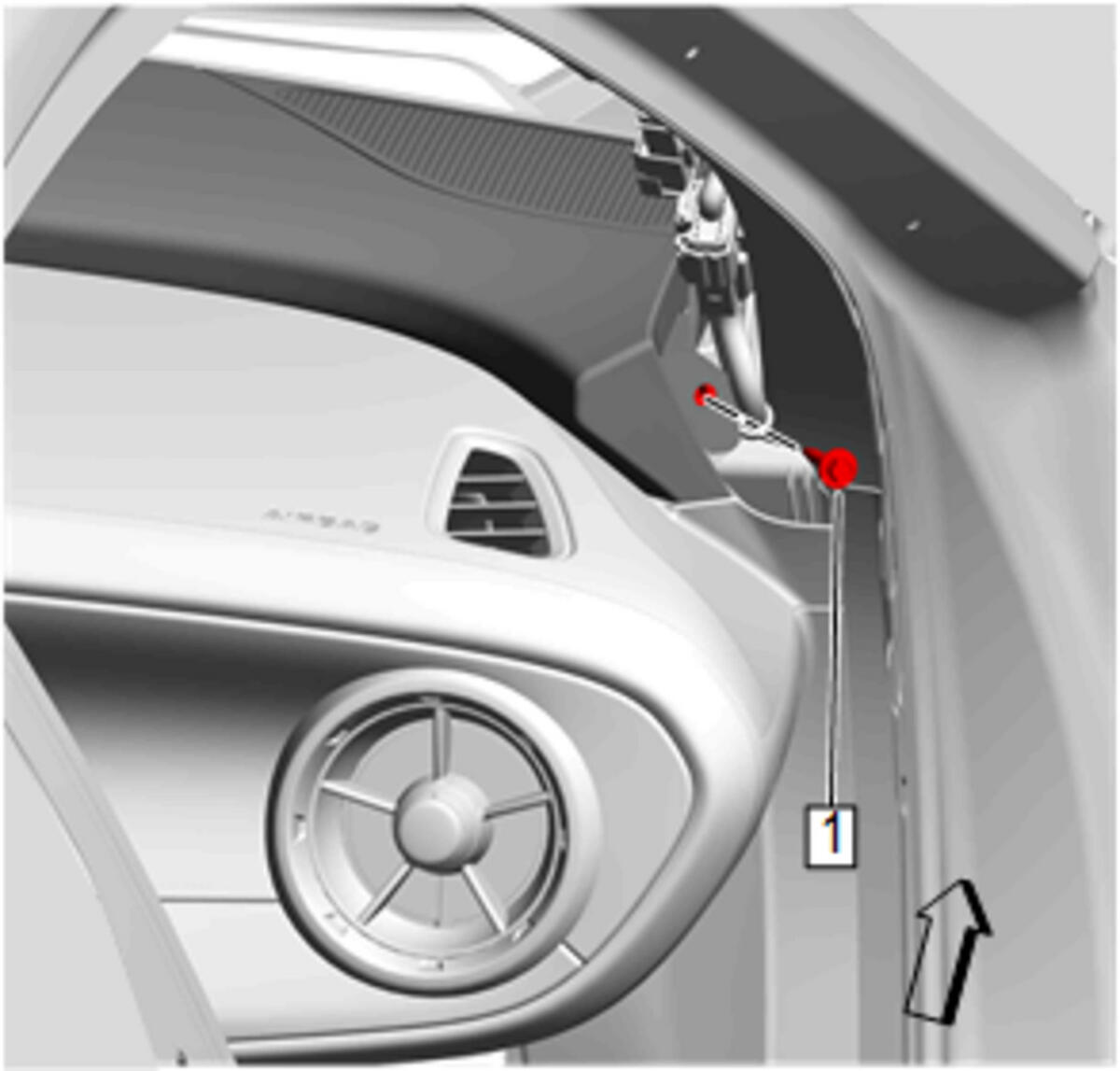

  6. GM4952553Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

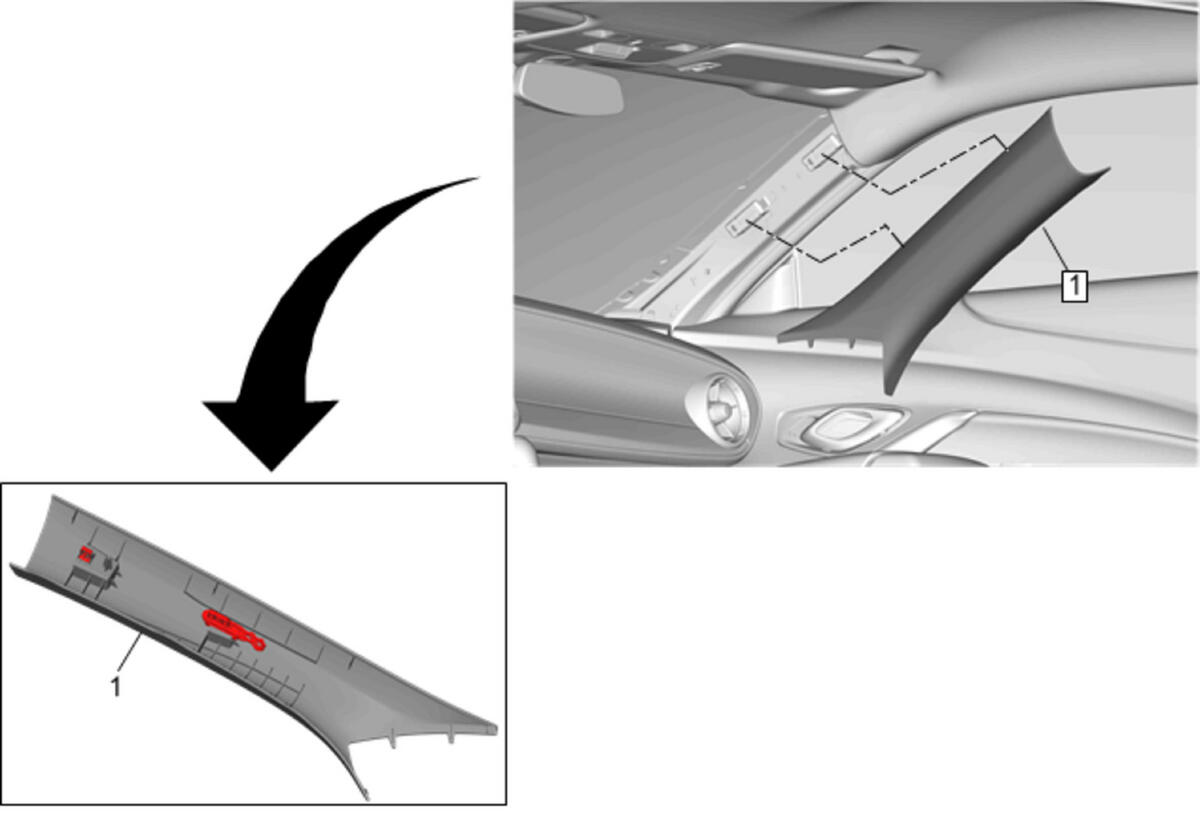

  7. GM4206633Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding-Right Side (1) - Install - Windshield Garnish Molding Replacement - Right Side (Coupe) , or Windshield Garnish Molding Replacement - Right Side (Convertible)
