Removal Procedure

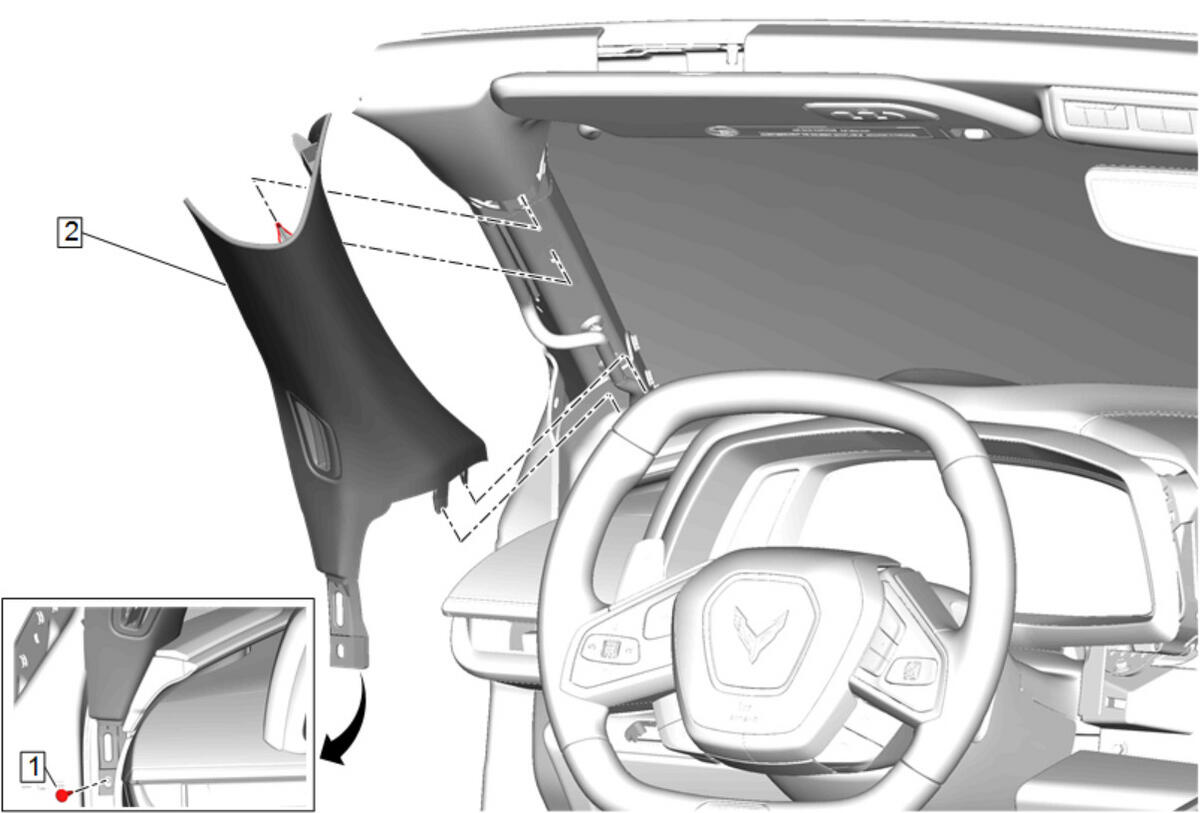

Remove the left body hinge pillar garnish molding (1). Body Hinge Pillar Garnish Molding Replacement
Remove the left windshield garnish molding (2). Windshield Garnish Molding Replacement

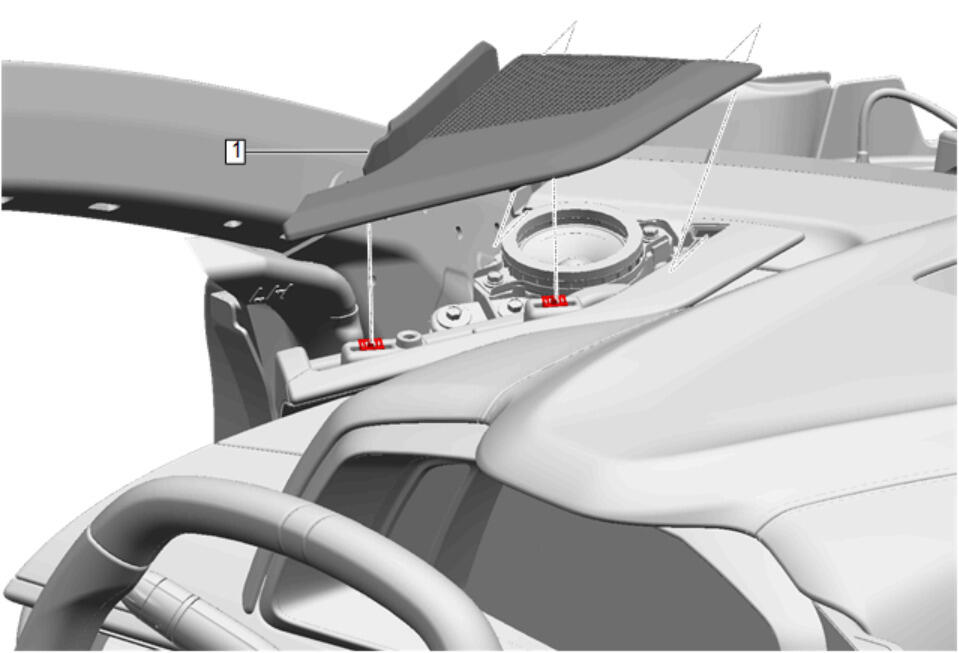

Remove the left instrument panel trim pad radio speaker opening cover (1). Instrument Panel Trim Pad Radio Speaker Opening Cover Replacement
Remove the left radio front speaker grille molding (2). Radio Front Speaker Grille Molding Replacement
Remove the left instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement
Instrument Panel Knee Bolster (2) - Remove - Instrument Panel Knee Bolster Replacement
Instrument Panel Lower Trim Panel Insulator - Left Side (2) - Remove - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
Video Processing Module (1) - Remove - Video Processing Module Replacement
Communication Interface Module Bracket Bolt (1) - Remove [3x]
- Disconnect all electrical connectors.
- Communication Interface Module Bracket (2) - Remove
- Transfer components as necessary.
