Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

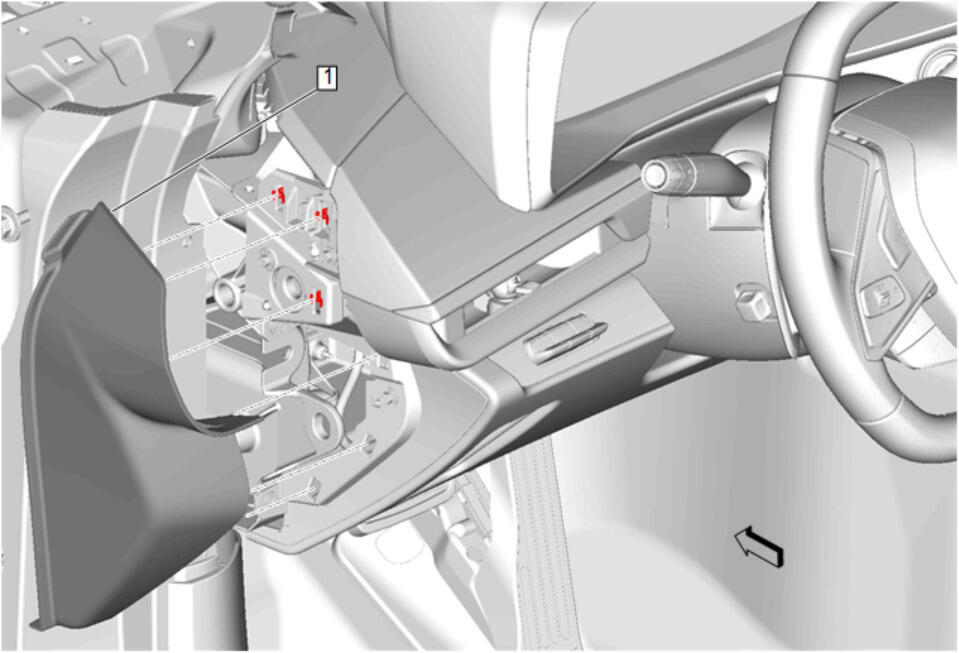

Remove the left instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator - Left Side (2) - Remove - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (2) - Remove - Instrument Panel Knee Bolster Replacement
Courtesy of GENERAL MOTORS COMPANY

Video Processing Module (1) - Remove - Video Processing Module Replacement
Courtesy of GENERAL MOTORS COMPANY

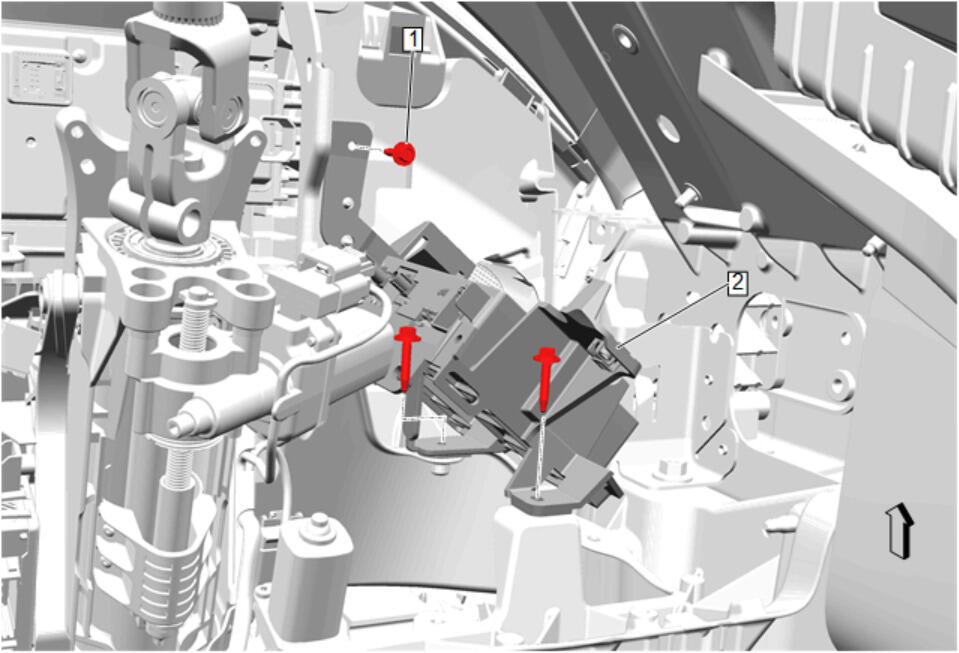

Communication Interface Module Bracket Bolt (1) - Remove [3x]
Remove the communication interface module bracket (2).
Disconnect all electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

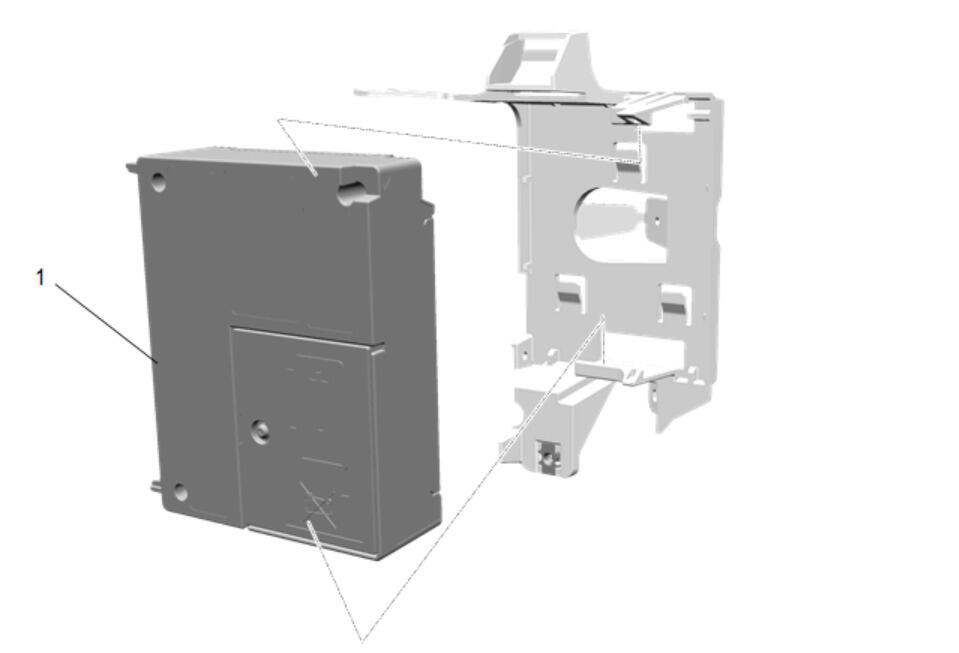

Release the communication interface module retainer tabs and remove the communication interface module (1) from the bracket.
