Engine Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

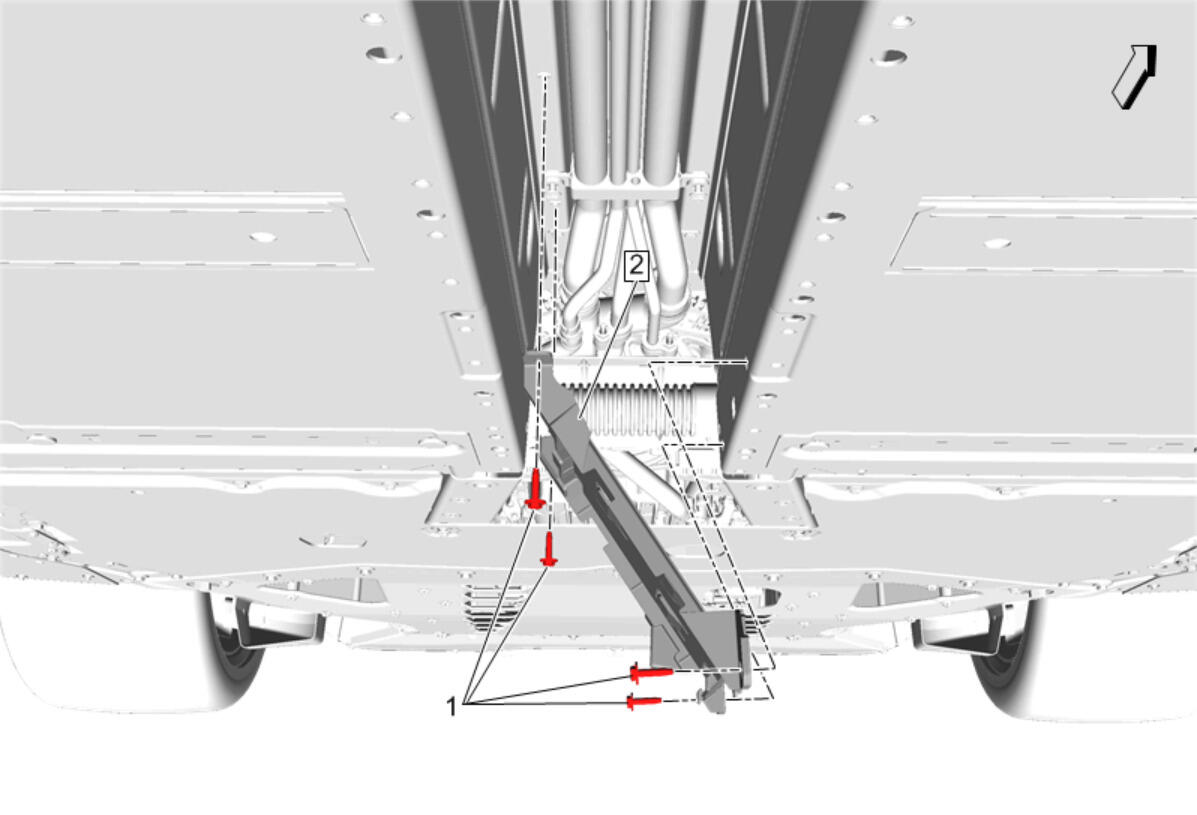

Callout	Component Name
Preliminary Procedure  Engine Control Module Replacement
1	Engine Control Module Bracket Brace Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Engine Control Module Bracket
