Windshield Multifunction Sensor Mount Bracket Cover Replacement

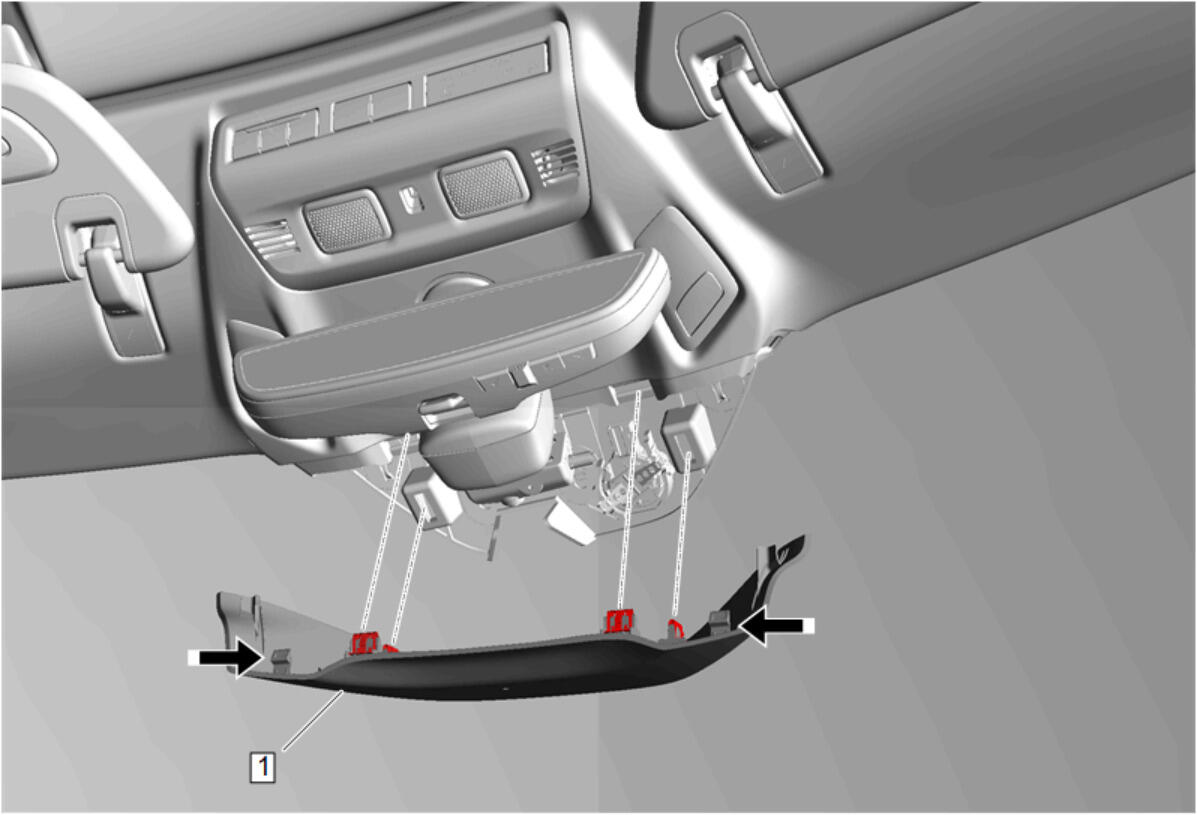

GM5384822Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Windshield Multifunction Sensor Mount Bracket Cover

Procedure

  1. Using a flat-bladed trim tool, release the tab on one side of the cover and pull down on cover.
  2. Using a flat-bladed trim tool, release the tab on the other side of the cover and pull down on cover.
  3. When installing, use a flat-bladed trim tool to pull down on the windshield upper garnish molding when securing the bracket cover.
