Front Side Door Window Regulator Motor Replacement

Courtesy of GENERAL MOTORS COMPANY

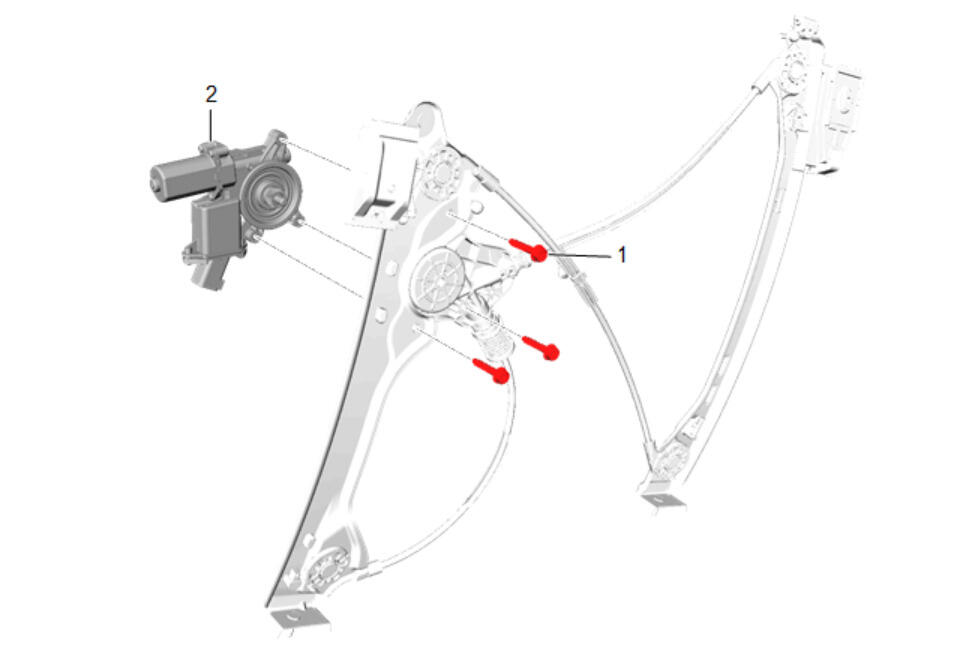

Callout	Component Name
Preliminary Procedure  Front Side Door Window Regulator Replacement
1	Front Side Door Window Regulator Motor Screw [3x] CAUTION: Refer to Fastener Caution . Tighten  5 N.m (44 lb in)
2	Front Side Door Window Regulator Motor
