Removal Procedure
WARNING:
Refer to Glass and Sheet Metal Handling Warning .
WARNING:
Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

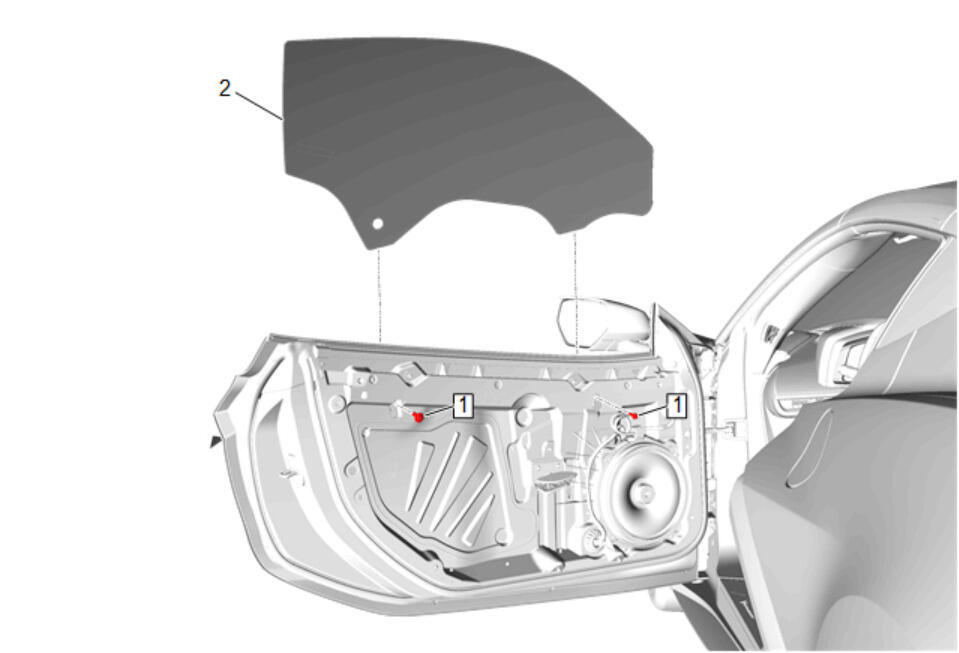

Front Side Door Window (2) - Remove - Front Side Door Window Replacement
Front Side Door Water Deflector (1) - Remove - Front Side Door Water Deflector Replacement

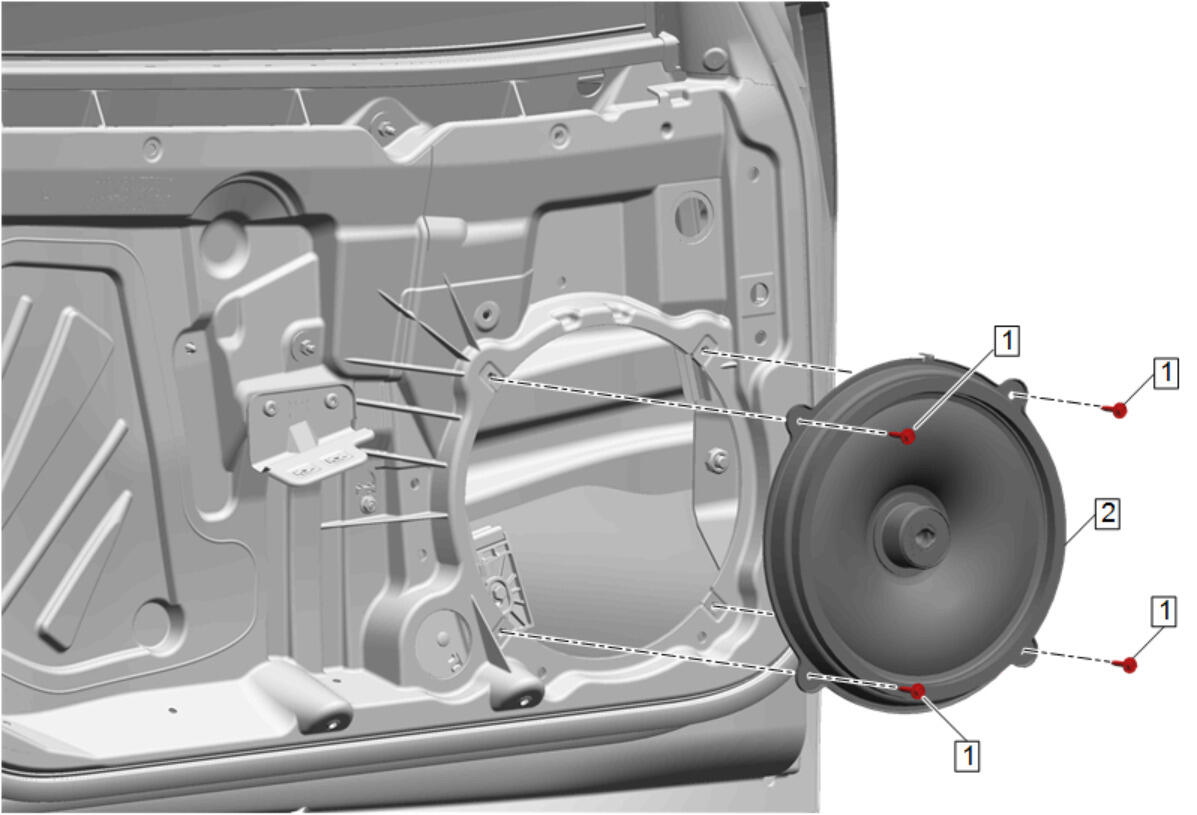

Radio Front Side Door Speaker (2) - Remove - Radio Front Side Door Speaker Replacement
Disconnect the electrical connector.

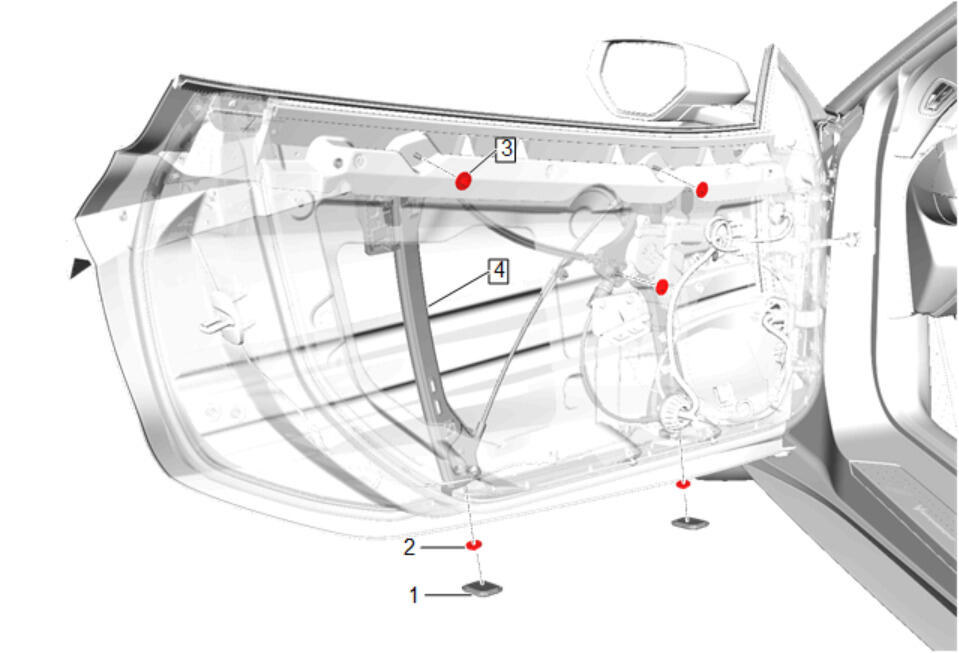

- Front Side Door Access Hole Plug (1) - Remove [2x]
- Front Side Door Window Regulator Nut- Lower (2) - Remove [2x]
- Front Side Door Window Regulator Nut- Upper (3) - Remove [3x]
- Front Side Door Window Regulator (4) - Remove
- Transfer components as necessary.
NOTE:
To aid installation mark the location of the front side door window regulator lower nuts (2) before removal.
