Removal Procedure

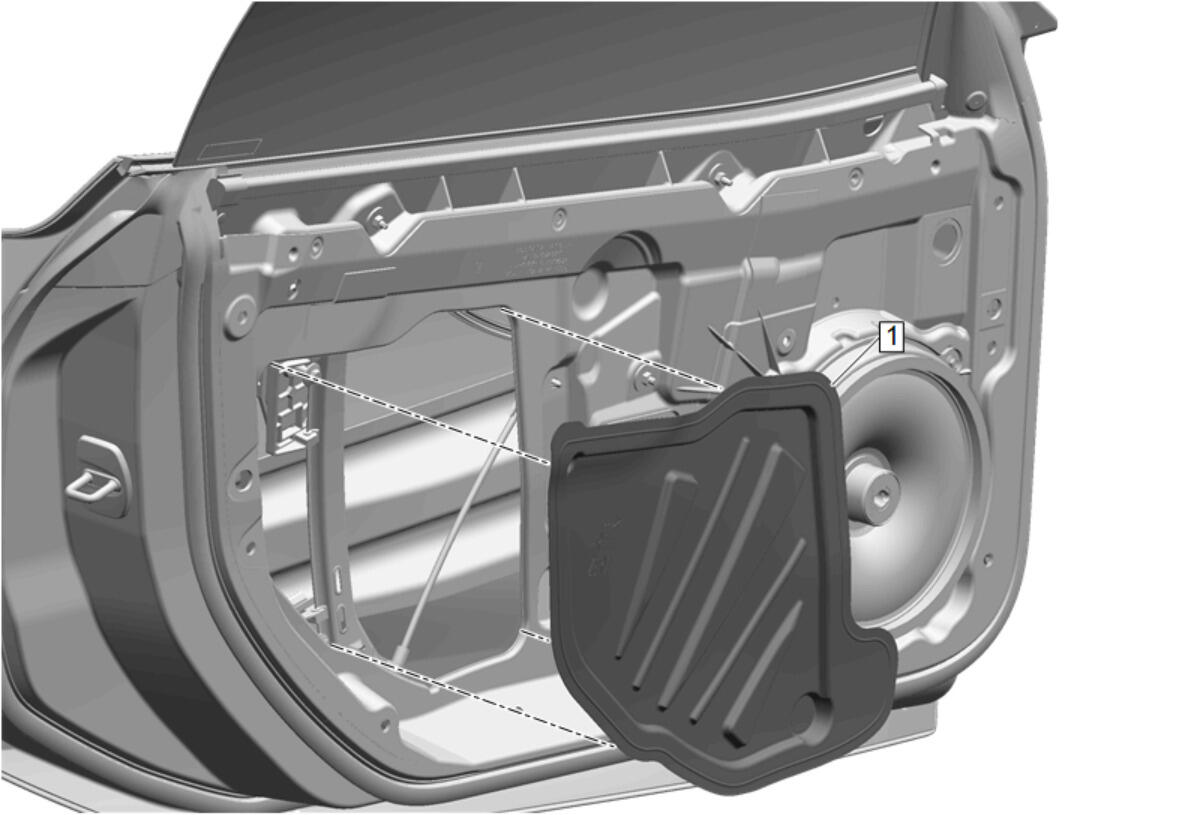

  1. GM5358579Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Water Deflector (1) - Remove - Front Side Door Water Deflector Replacement

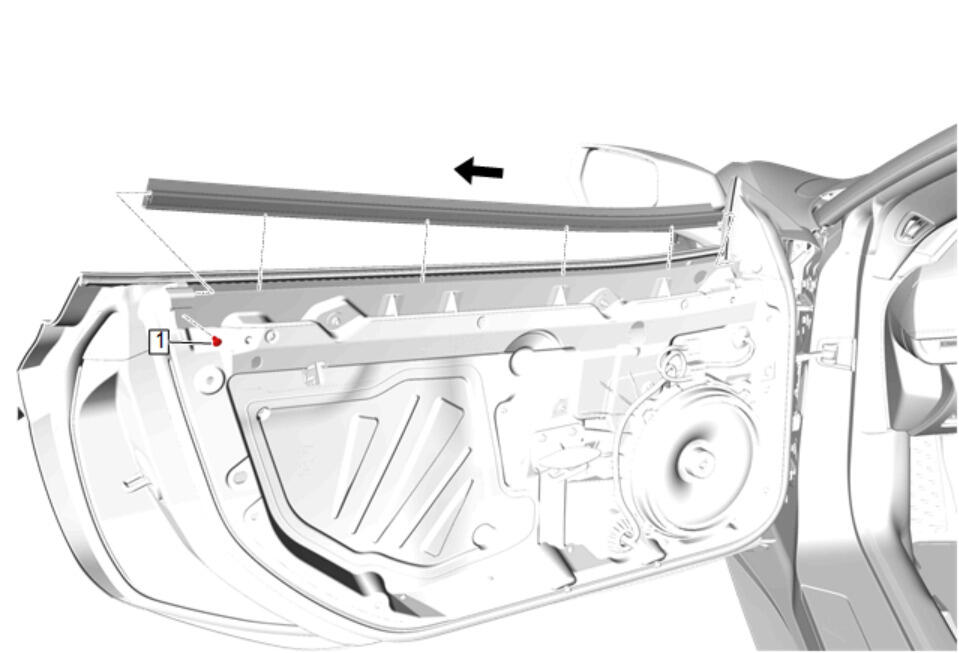

  2. GM5366332Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Inner Sealing Strip (1) - Remove - Front Side Door Window Inner Sealing Strip Replacement

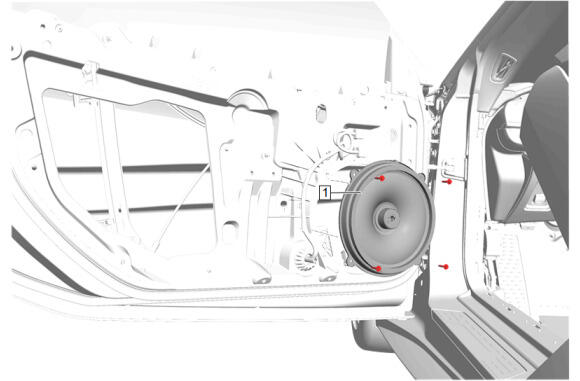

  3. GM5774769Courtesy of GENERAL MOTORS COMPANY

    Radio Front Side Door Speaker (1) - Remove - Radio Front Side Door Speaker Replacement

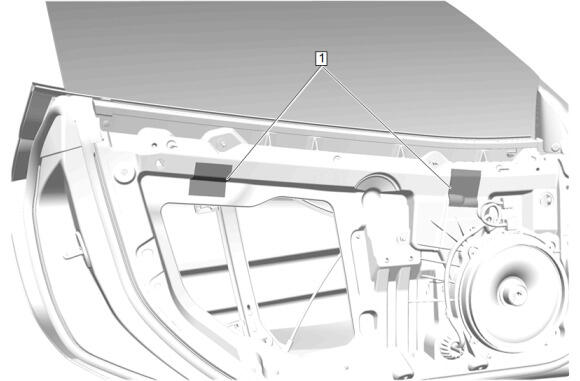

  4. GM5768631Courtesy of GENERAL MOTORS COMPANY

    Remove the tape (1) to gain access to the front side door window bolts.

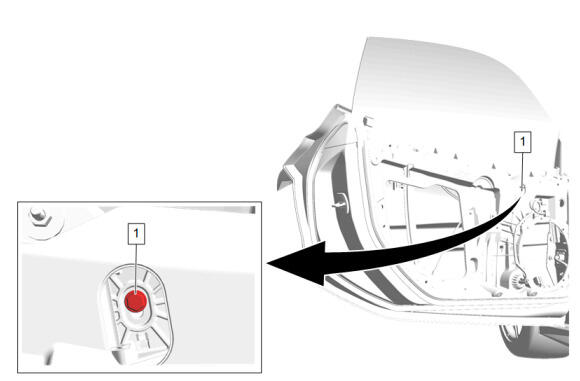

  5. GM5766444Courtesy of GENERAL MOTORS COMPANY

    Mark the location of the front side door window bolt (1) to regulator sash before loosening to aid installation.

  6. Front Side Door Window Bolt (1) - Loosen

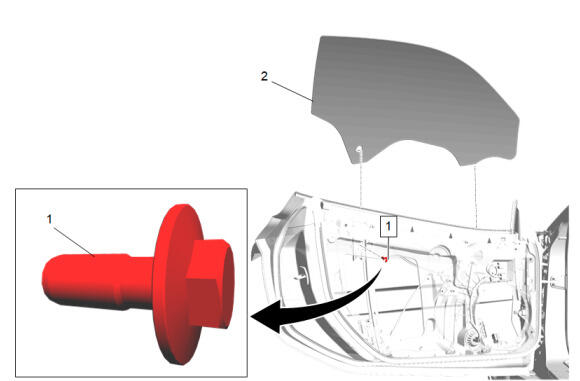

  7. GM5766447Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Bolt (1) - Remove

  8. Release the rear regulator sash clip from the front side door window (2) then lift the front side door window (2) to remove from the front side door.
