Rear Sliding Window Motor Replacement

Courtesy of GENERAL MOTORS COMPANY

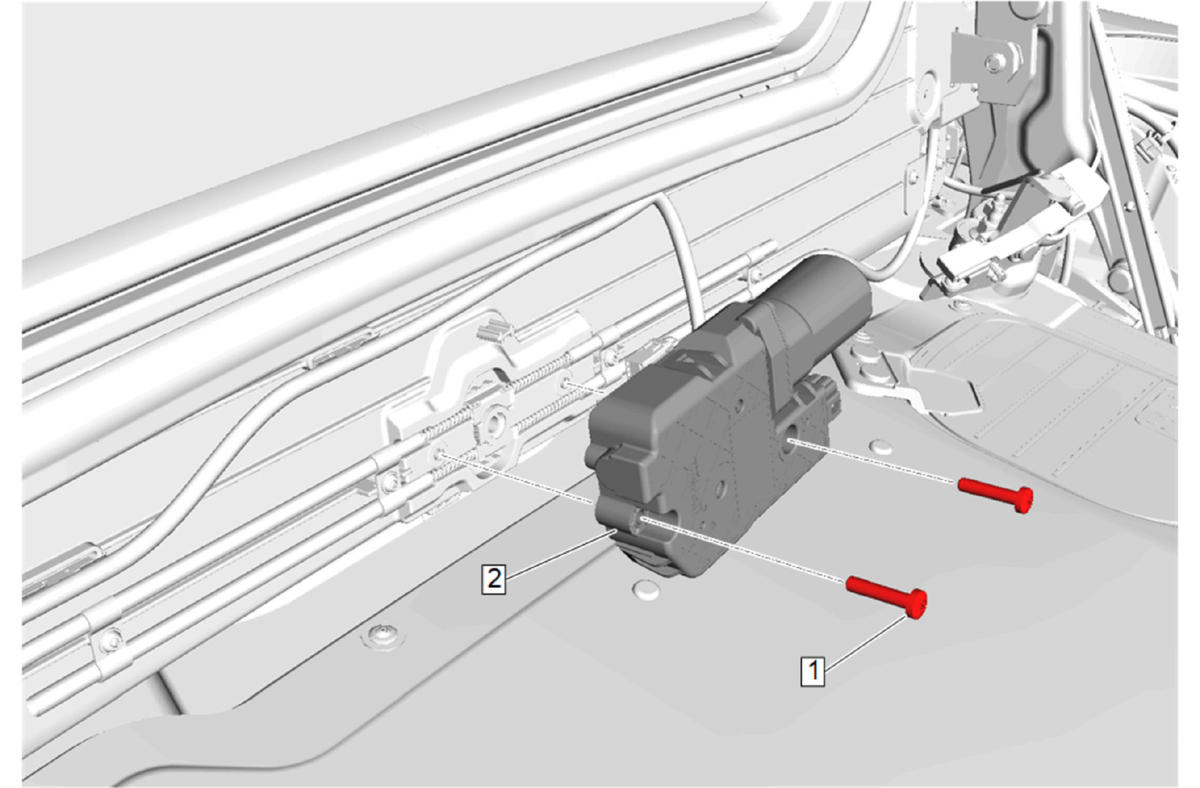

Callout	Component Name
Preliminary Procedure Rear Sliding Window Motor Cover Replacement
1	Rear Sliding Window Motor Bolt [2x] CAUTION: Refer to Fastener Caution . Procedure If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: Remove any loose cured adhesive from the external threads of the components using a lint free cloth. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers Ensure there are no gaps in the thread locking adhesive once applied to the component. Tighten 5 N.m (44 lb in)
2	Rear Sliding Window Motor Procedure Disconnect the electrical connector.

Callout

Component Name

Rear Sliding Window Motor Bolt [2x]

CAUTION:

Procedure

If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Tighten
5 N.m (44 lb in)

Rear Sliding Window Motor
Procedure
Disconnect the electrical connector.
