Removal Procedure

WARNING:

Courtesy of GENERAL MOTORS COMPANY

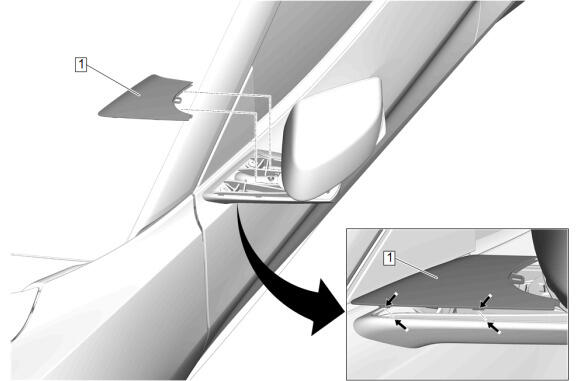

Outside Rearview Mirror Bracket Cover (1) - Remove - Outside Rearview Mirror Bracket Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

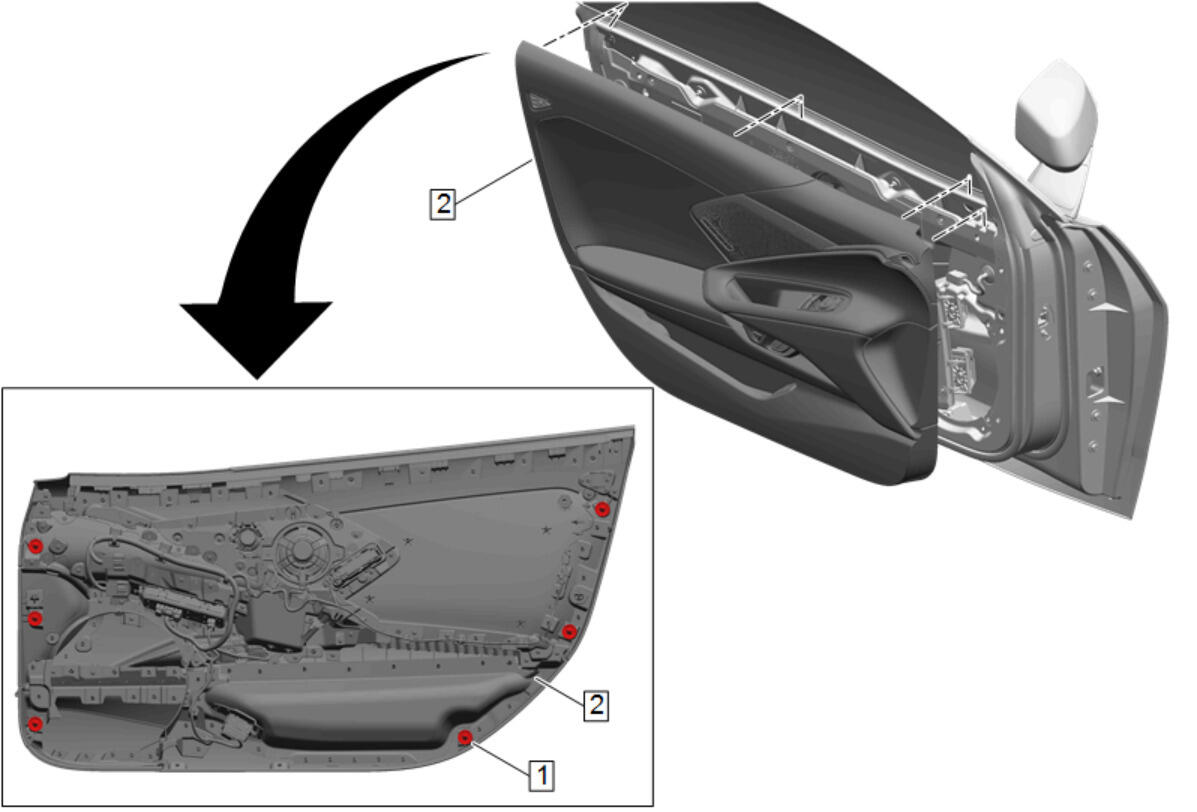

Front Side Door Trim (2) - Remove - Front Side Door Trim Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Observe the mounting and location of the wiring harness and wiring harness grommet to ensure proper reinstallation.

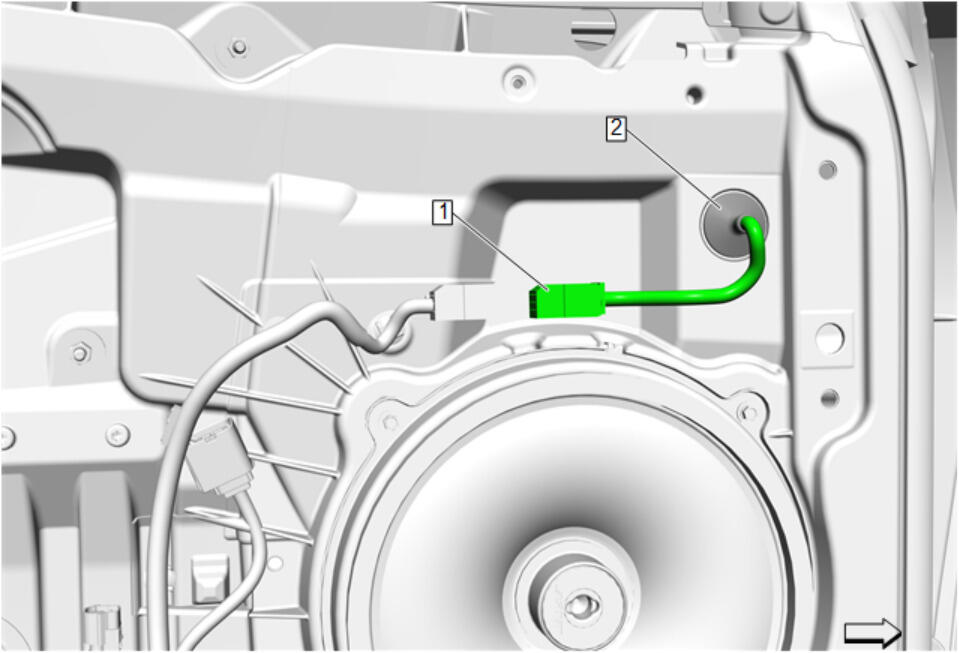

Disconnect the electrical connector (1) and carefully disengage the wiring harness grommet (2) from the inner front side door panel.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When replacing the outside rearview mirror, ensure to use the bolts equipped to the new mirror assembly.

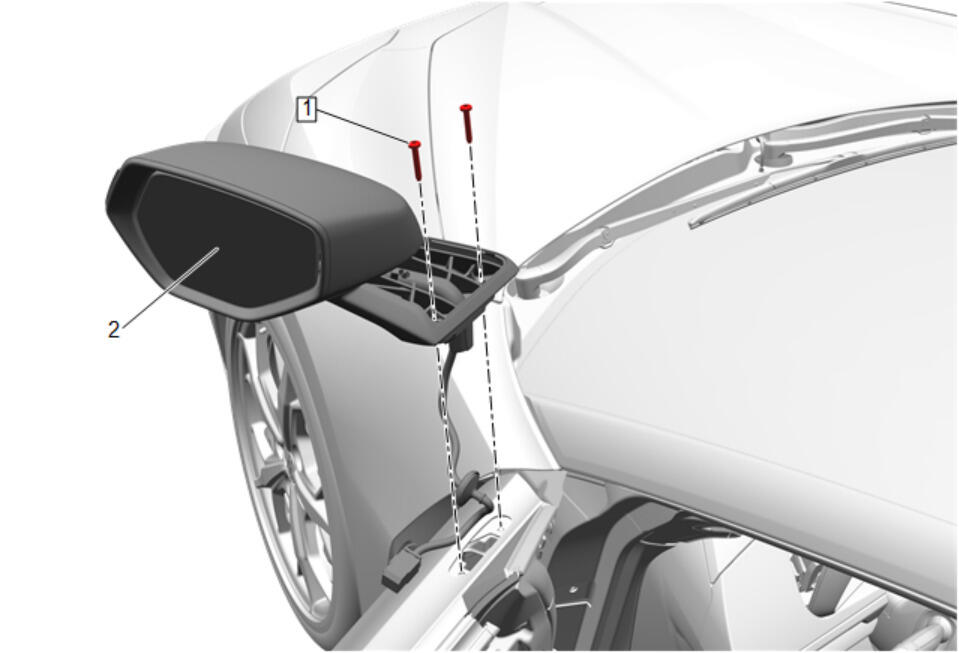

Outside Rearview Mirror Bolt (1) - Remove [2x]
Outside Rearview Mirror (2) - Remove
Transfer components as necessary.
