Front Floor Console Extension Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

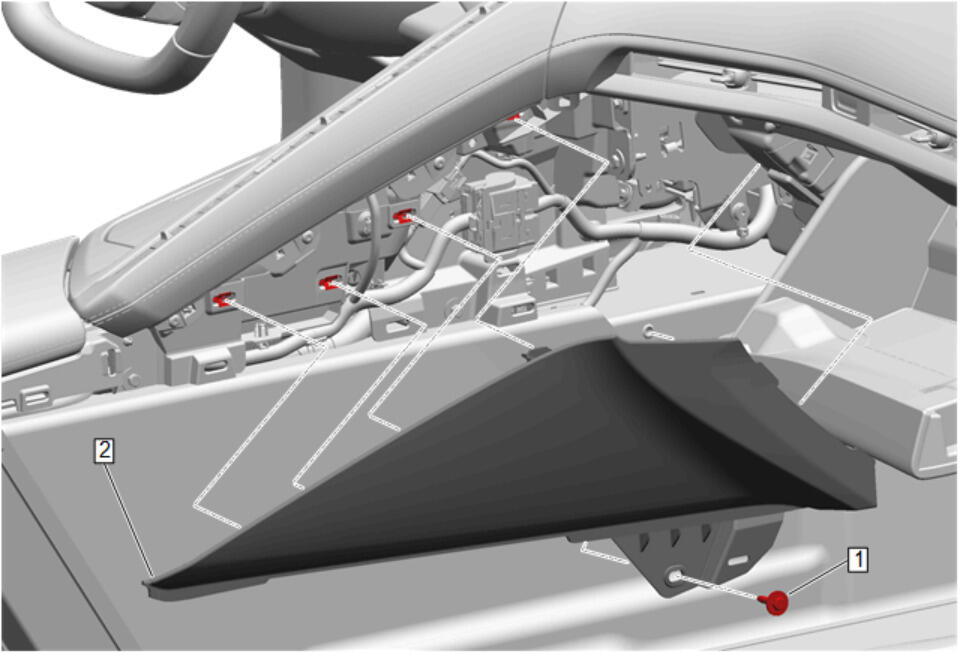

Callout	Component Name
Preliminary Procedures Open the instrument panel compartment door. Front Floor Rear Console Side Trim Panel Replacement - Right Side
1	Front Floor Console Extension Panel Bolt CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Front Floor Console Extension Panel

Callout

Component Name

Preliminary Procedures

Front Floor Console Extension Panel Bolt

CAUTION:

Tighten
7 N.m (62 lb in)

Front Floor Console Extension Panel
