Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

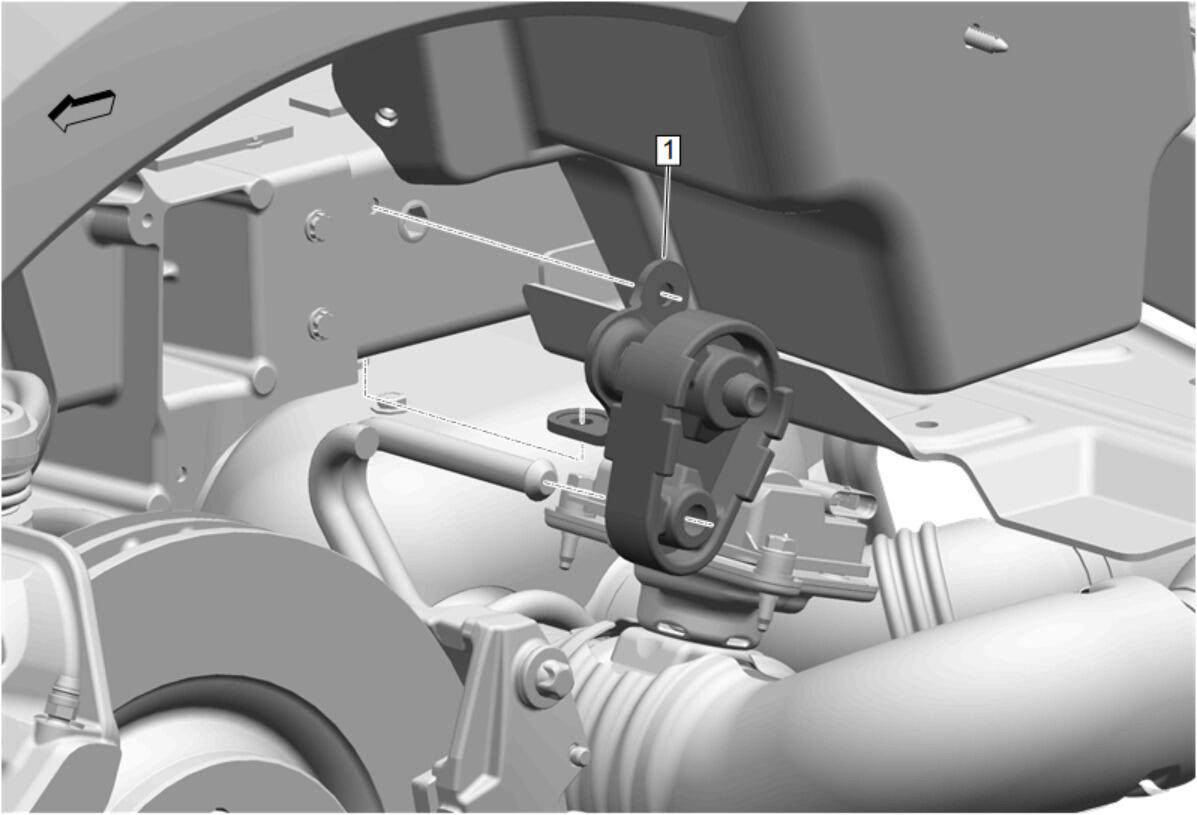

Exhaust Front Bracket (1) - Install

Courtesy of GENERAL MOTORS COMPANY

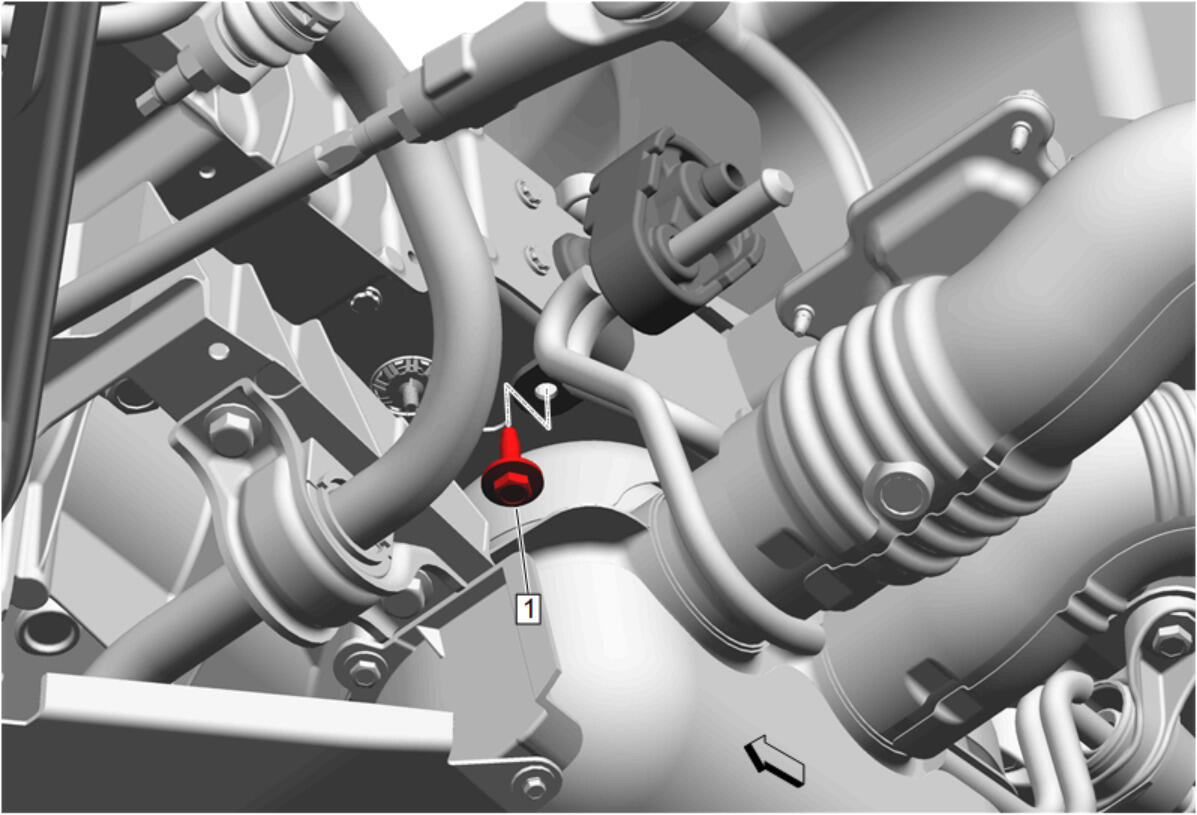

Exhaust Hanger Bracket Bolt (1) - Install and tighten to 22 N.m (16 lb ft)

Courtesy of GENERAL MOTORS COMPANY

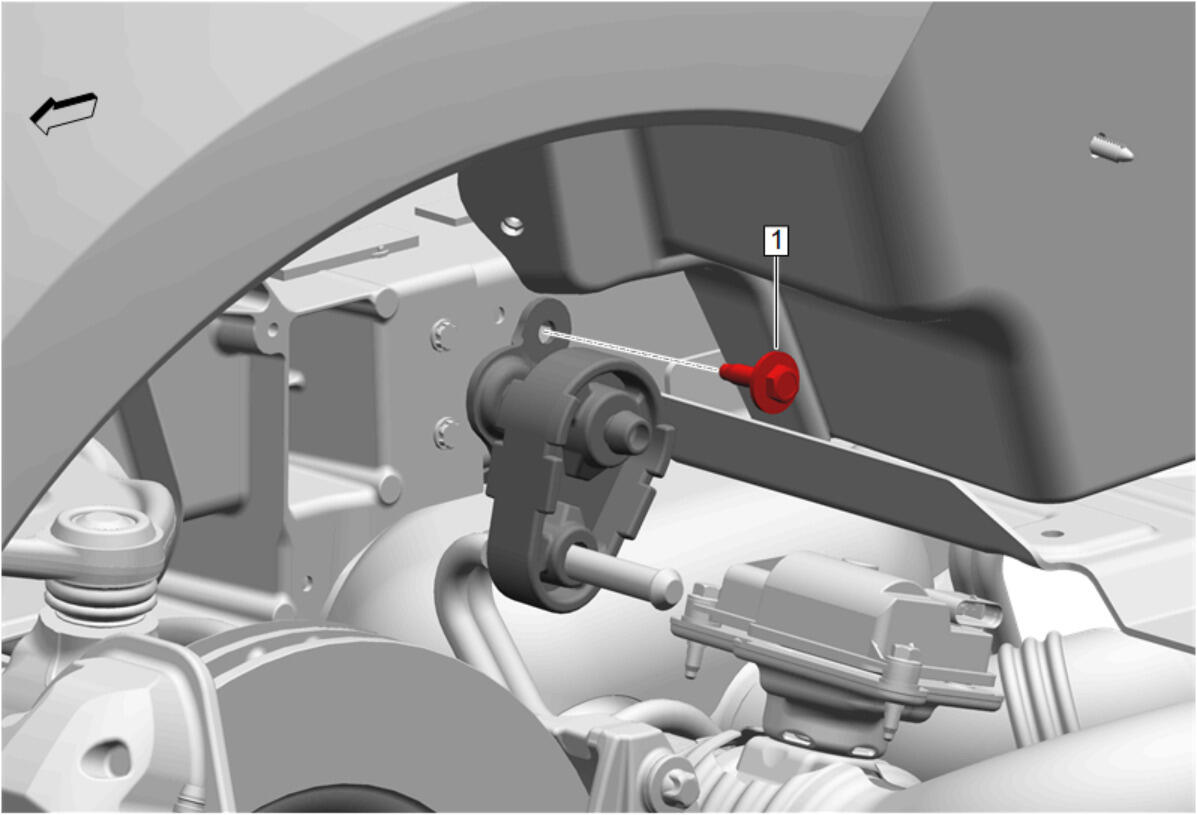

Exhaust Hanger Bracket Bolt (1) - Install and tighten to 22 N.m (16 lb ft)

Courtesy of GENERAL MOTORS COMPANY

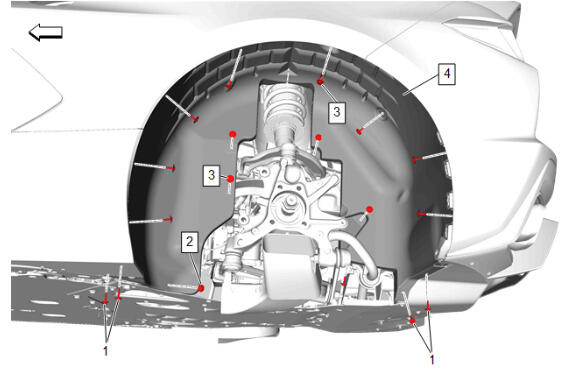

Rear Wheelhouse Liner-Left Side (4) - Install - Rear Wheelhouse Liner Replacement - Left Side
