Exhaust Front Insulator Replacement

Courtesy of GENERAL MOTORS COMPANY

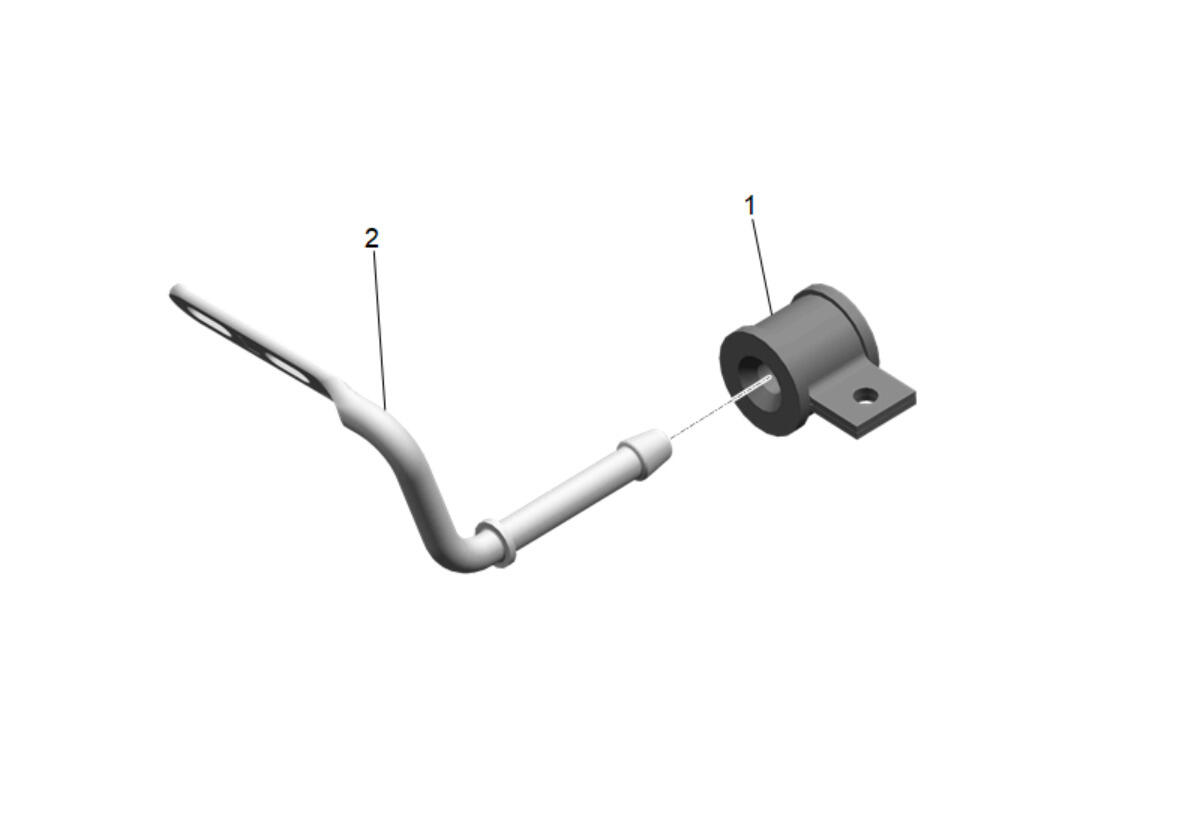

Callout	Component Name
WARNING: In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool. WARNING: Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. Preliminary Procedure Exhaust Front Hanger Replacement (Left Side) , or Exhaust Front Hanger Replacement (Right Side)
1	Exhaust Front Insulator Procedure Separate the exhaust front insulator (1) from the exhaust front hanger (2).
2	Exhaust Front Hanger
