Turn Signal Switch Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Steering Wheel Airbag Coil Replacement Turn Signal Switch Replacement Windshield Wiper and Windshield Washer Switch Replacement

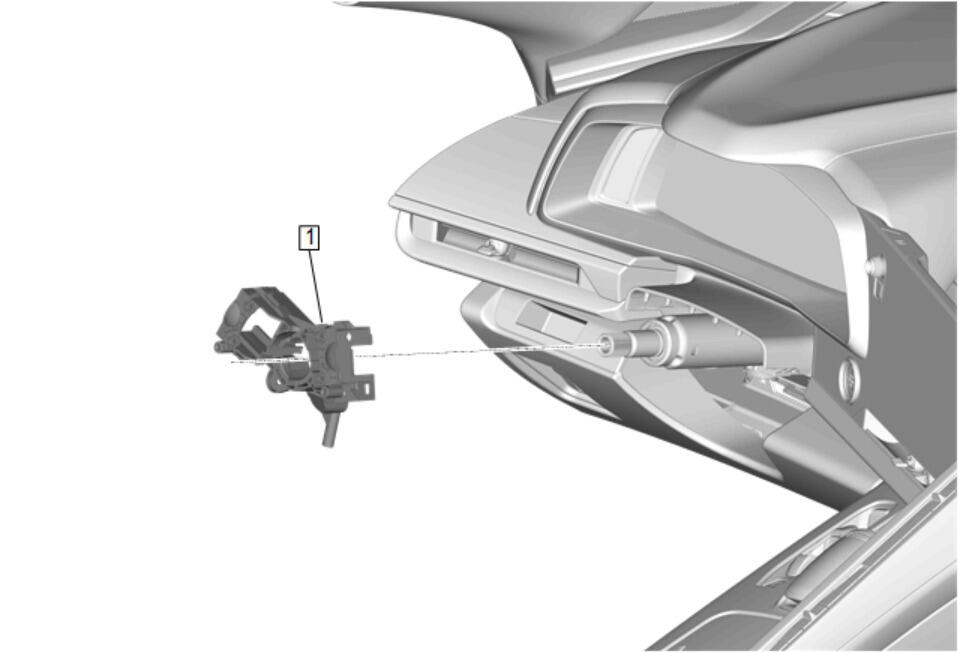

1	Turn Signal Switch Bracket Procedure Release the 2 harness retainers from the left and right side of the turn signal switch bracket. Release the retaining tabs and remove the turn signal switch bracket from the steering column.

Callout

Component Name

Preliminary Procedures

Turn Signal Switch Bracket

Procedure

Release the 2 harness retainers from the left and right side of the turn signal switch bracket.
Release the retaining tabs and remove the turn signal switch bracket from the steering column.
