Removal Procedure
WARNING:
Refer to Brake Fluid Irritant Warning .
CAUTION:
Refer to Brake Fluid Effects on Paint and Electrical Components Caution .

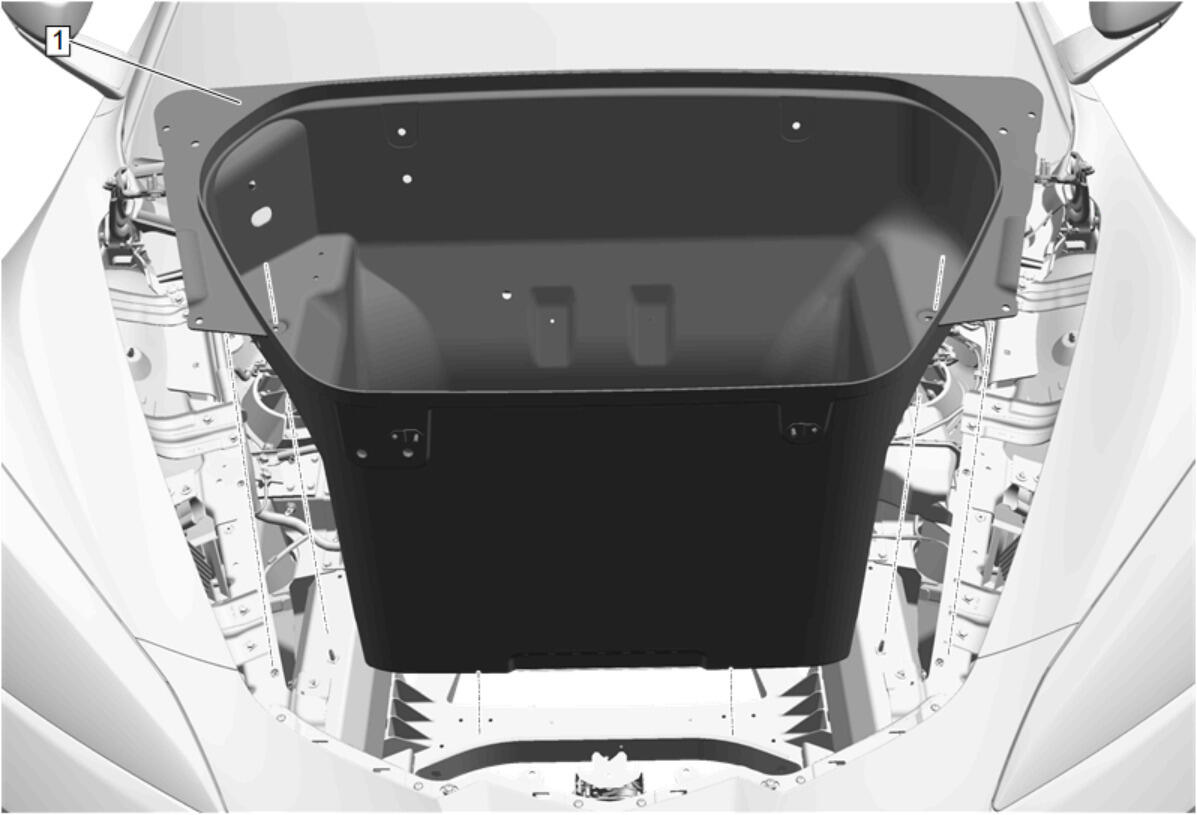

Front Compartment Front Panel (1) - Remove - Front Compartment Front Panel Replacement
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Front Compartment Insulator - Remove - Front Compartment Insulator Replacement

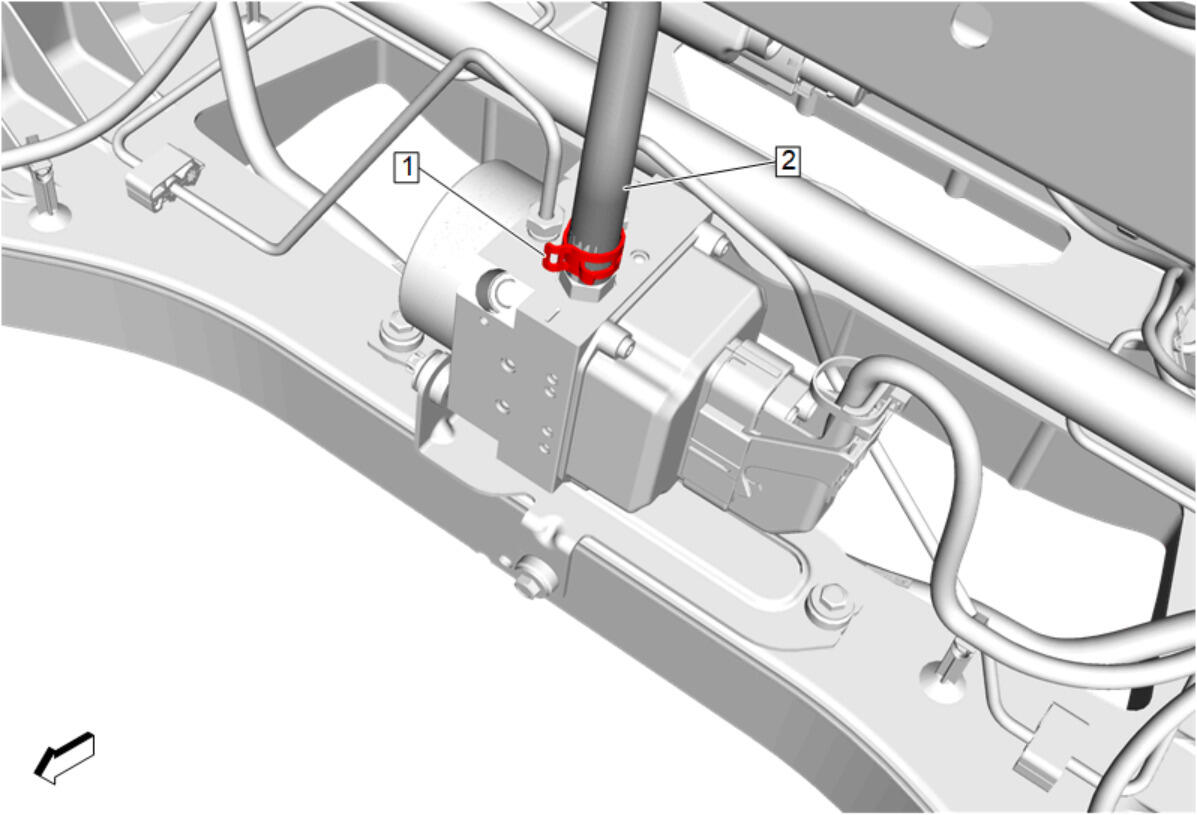

Hydraulic Suspension Fluid Reservoir Hose (2) @ Front Suspension Leveling/Lifting Hydraulic Power Pack Module - Remove - Hydraulic Suspension Fluid Reservoir Hose Replacement
- Remove the right and left side front hydraulic suspension actuator inlet pipes from the front suspension leveling/lifting hydraulic power pack module.
- Cap all open lines and ports to prevent fluid loss and contamination.

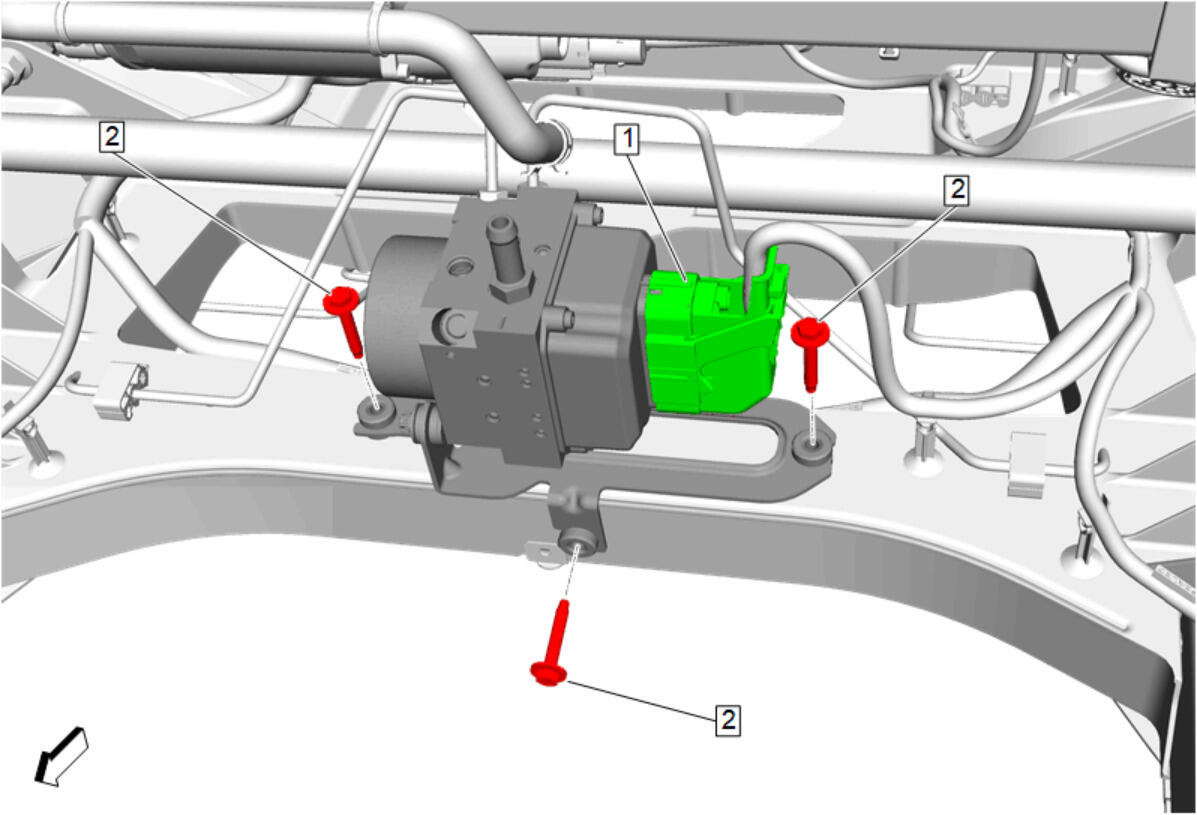

Disconnect the electrical connector. (1)
- Front Suspension Leveling/Lifting Hydraulic Power Pack Module Bracket Bolt (2) - Remove [3x]

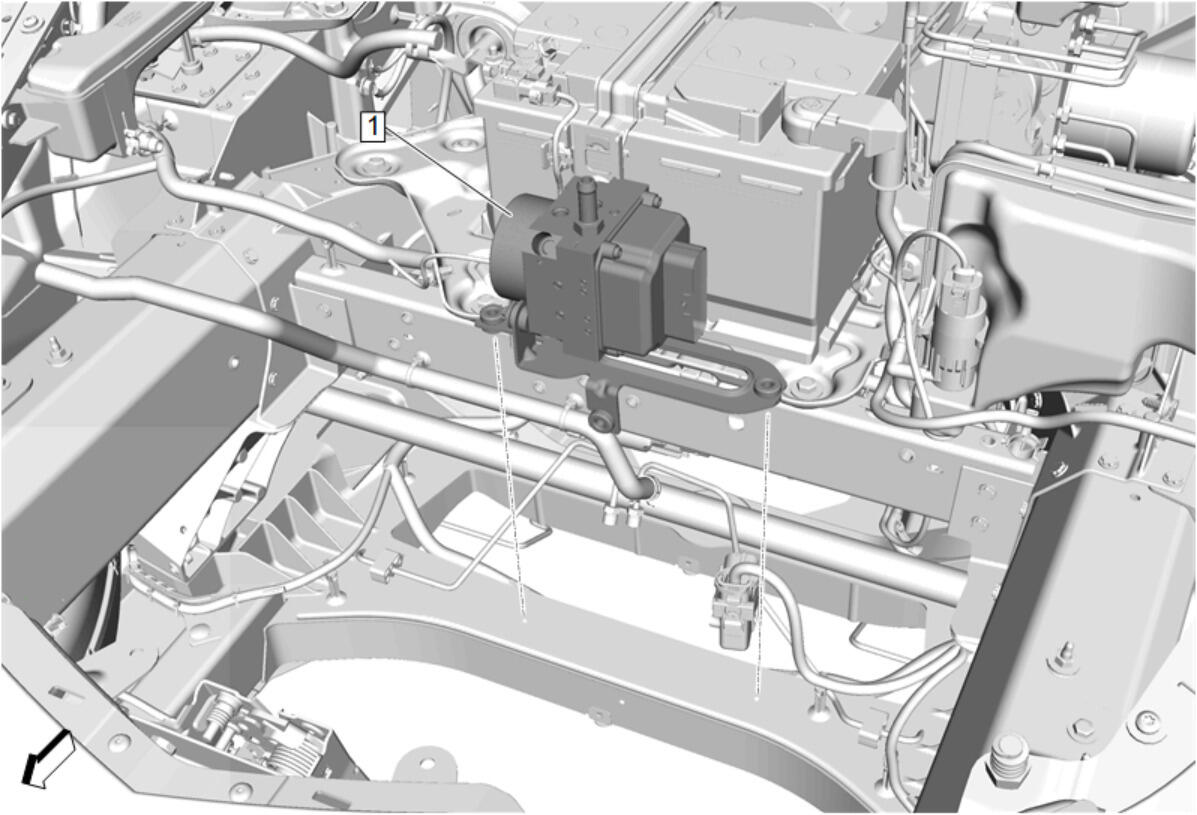

Front Suspension Leveling/Lifting Hydraulic Power Pack Module (1) - Remove
