Installation Procedure

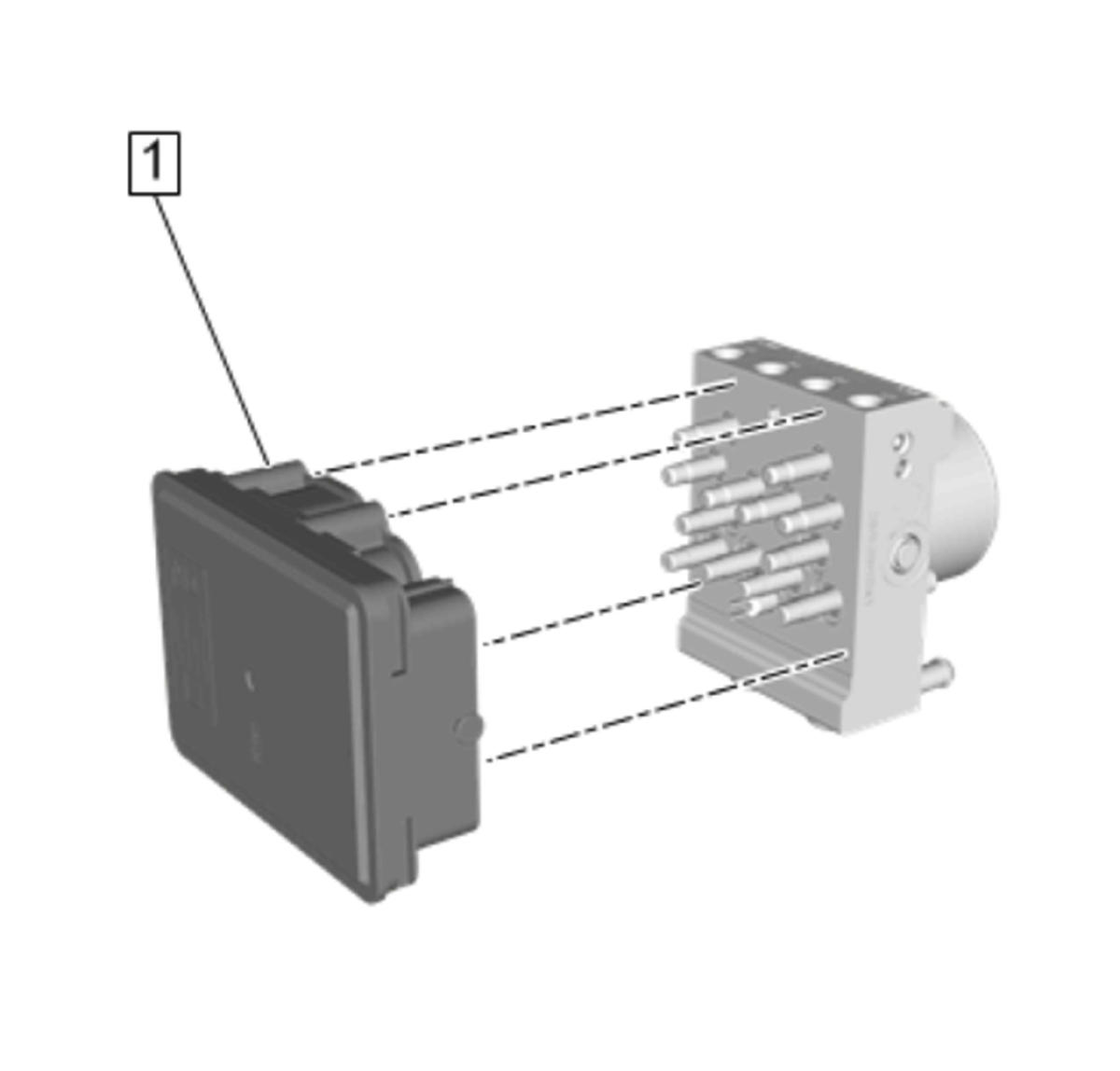

  1. GM4828915Courtesy of GENERAL MOTORS COMPANY

    Electronic Brake Control Module (1) - Install - Electronic Brake Control Module Replacement

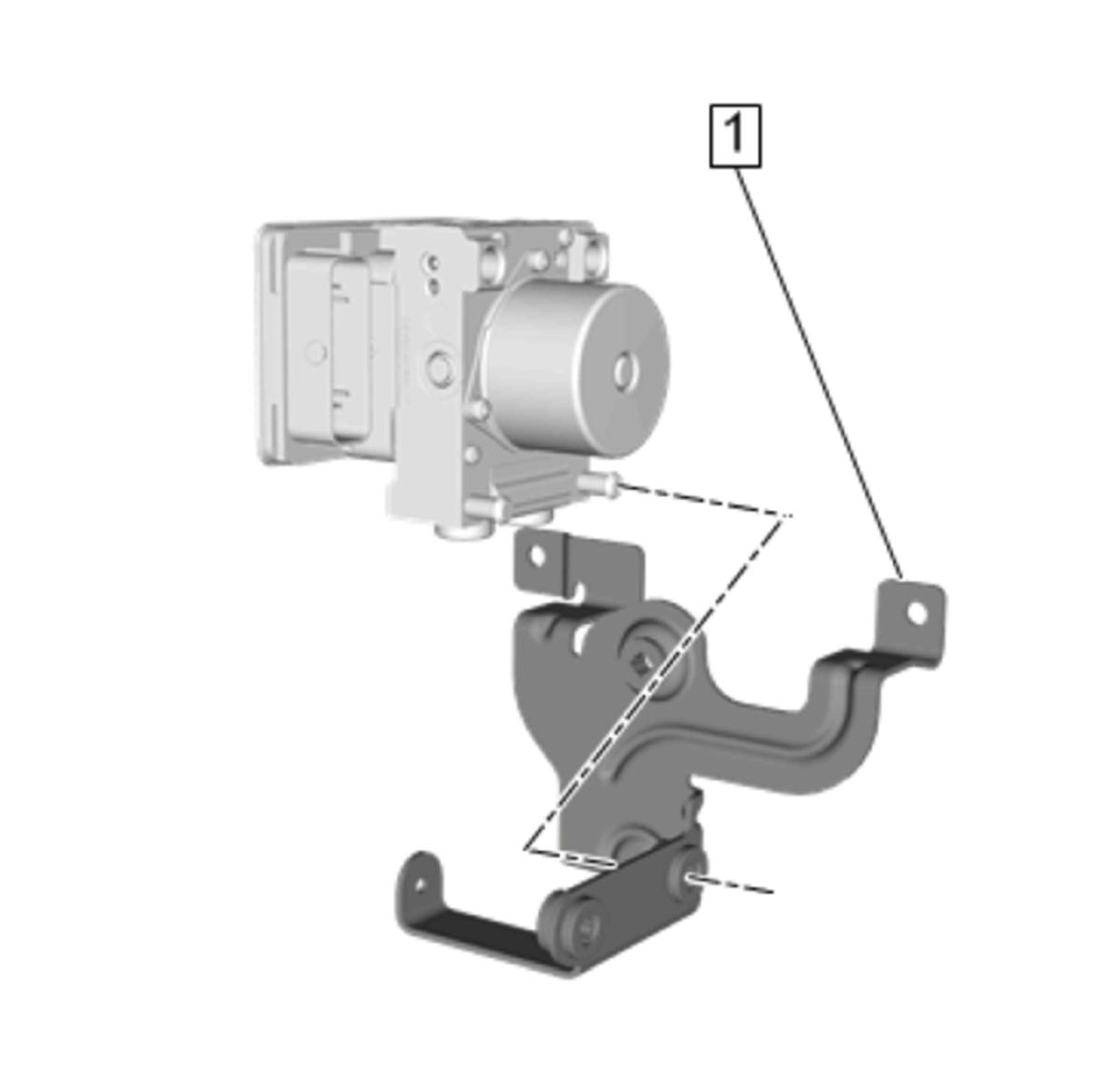

  2. GM4828884Courtesy of GENERAL MOTORS COMPANY

    Brake Pressure Modulator Valve Bracket (1) - Install - Brake Pressure Modulator Valve Bracket Replacement

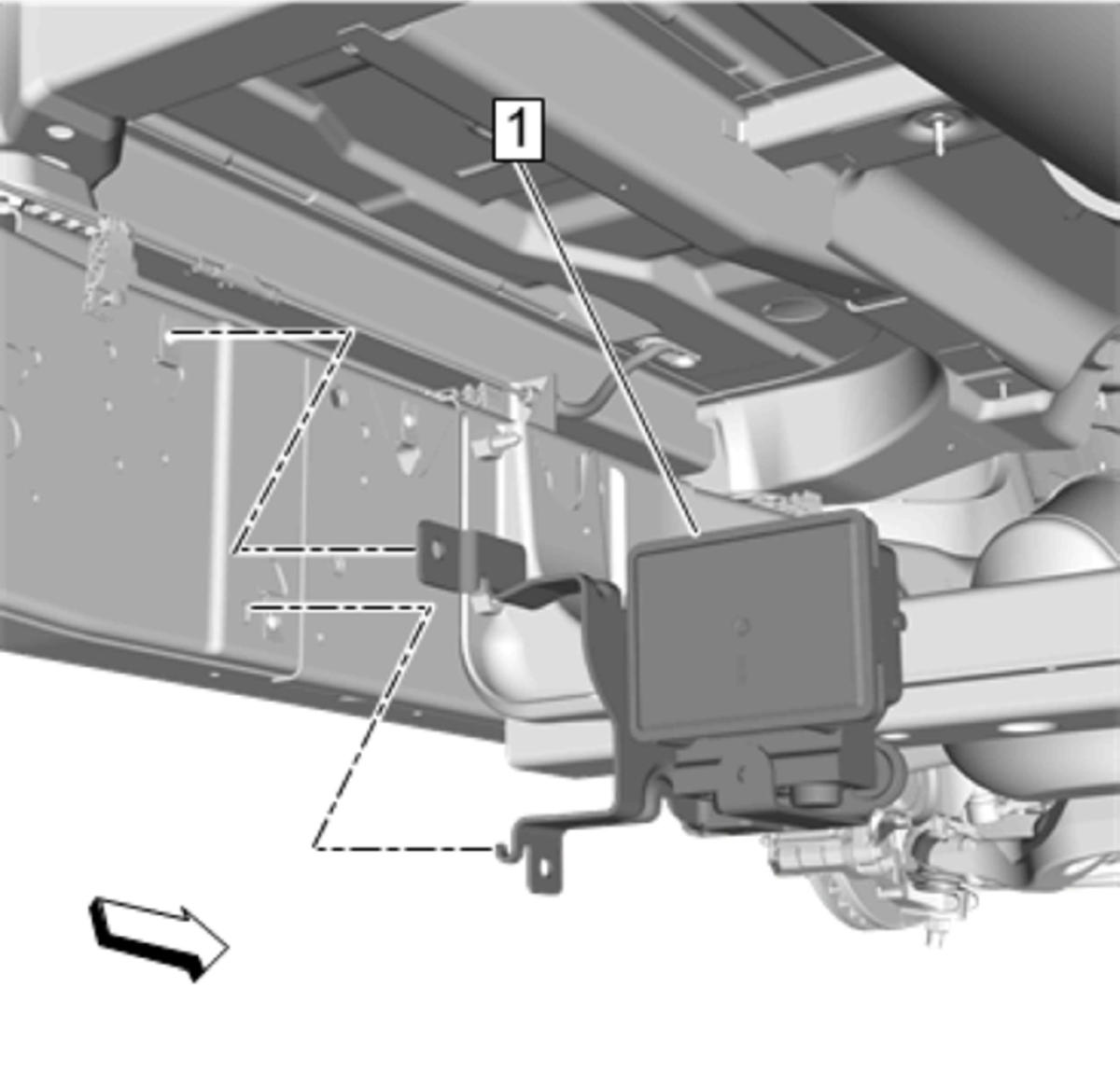

  3. GM4828440Courtesy of GENERAL MOTORS COMPANY

    Brake Pressure Modulator Valve (1) - Install

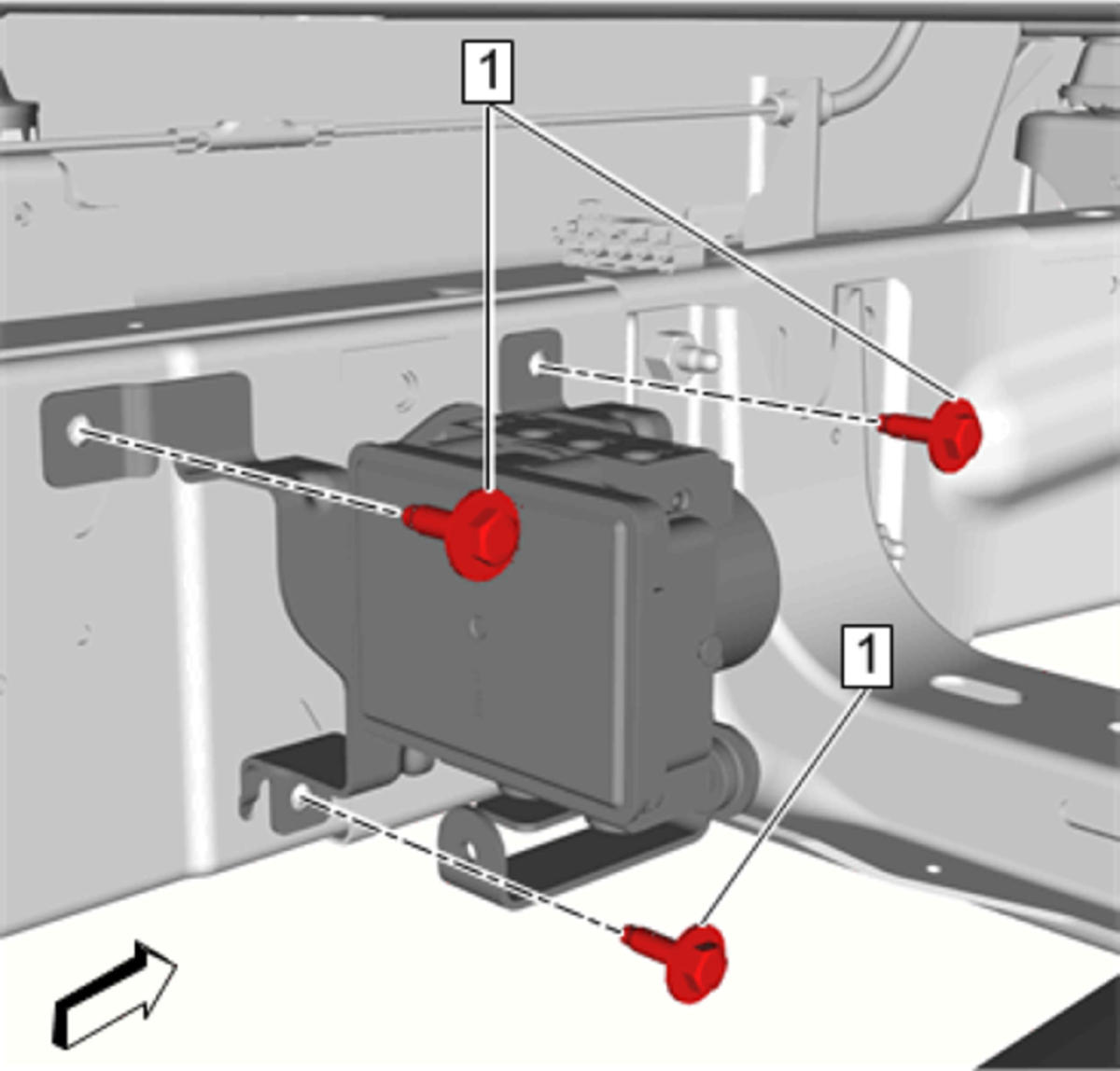

  4. GM4828439Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Brake Pressure Modulator Valve Bracket Bolt (1) - Install and tighten [3x] 25 N.m (18 lb ft)

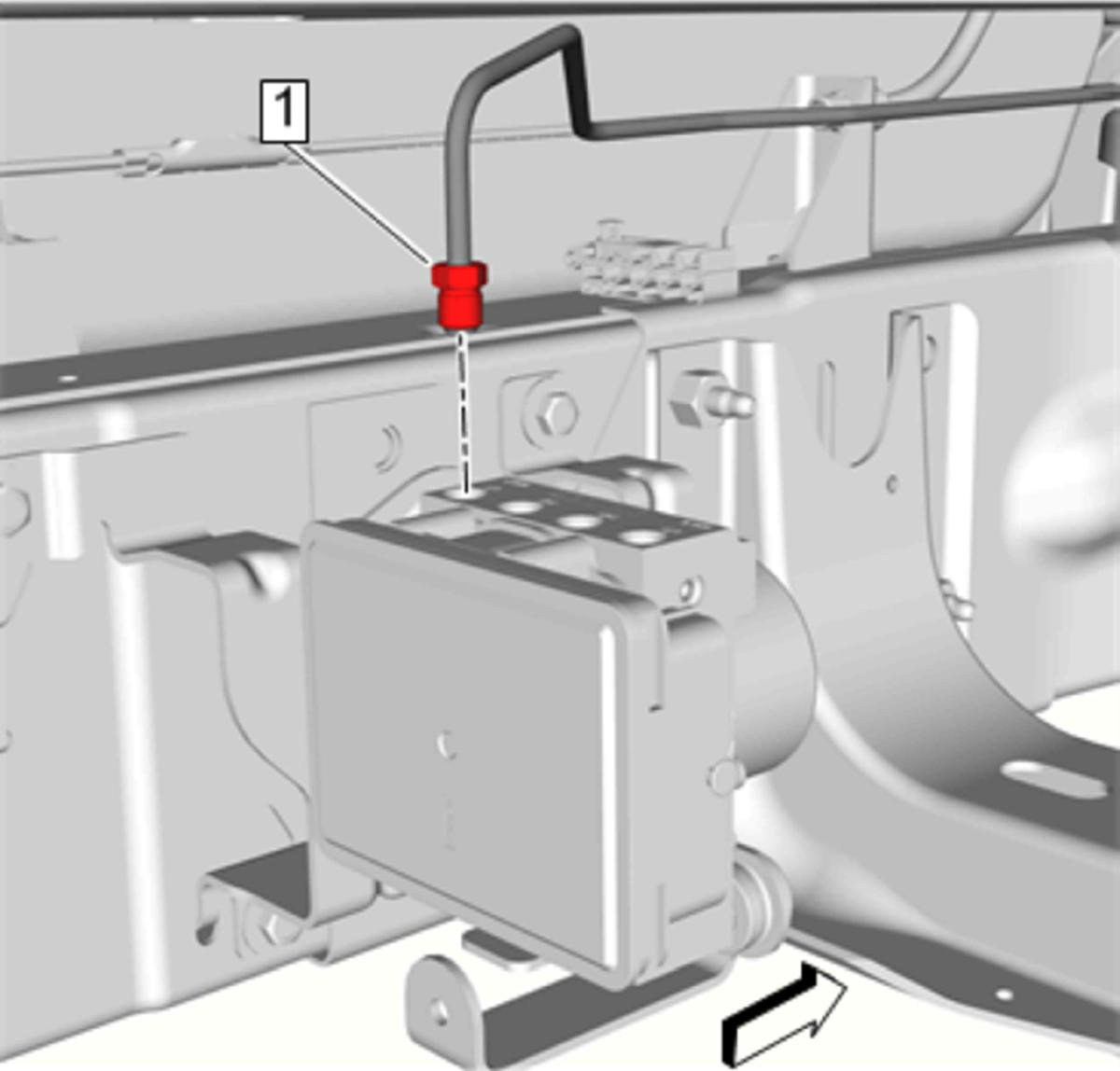

  5. GM4828437Courtesy of GENERAL MOTORS COMPANY

    Left Front Brake Pipe Fitting (1) - Install and tighten 28 N.m (21 lb ft)

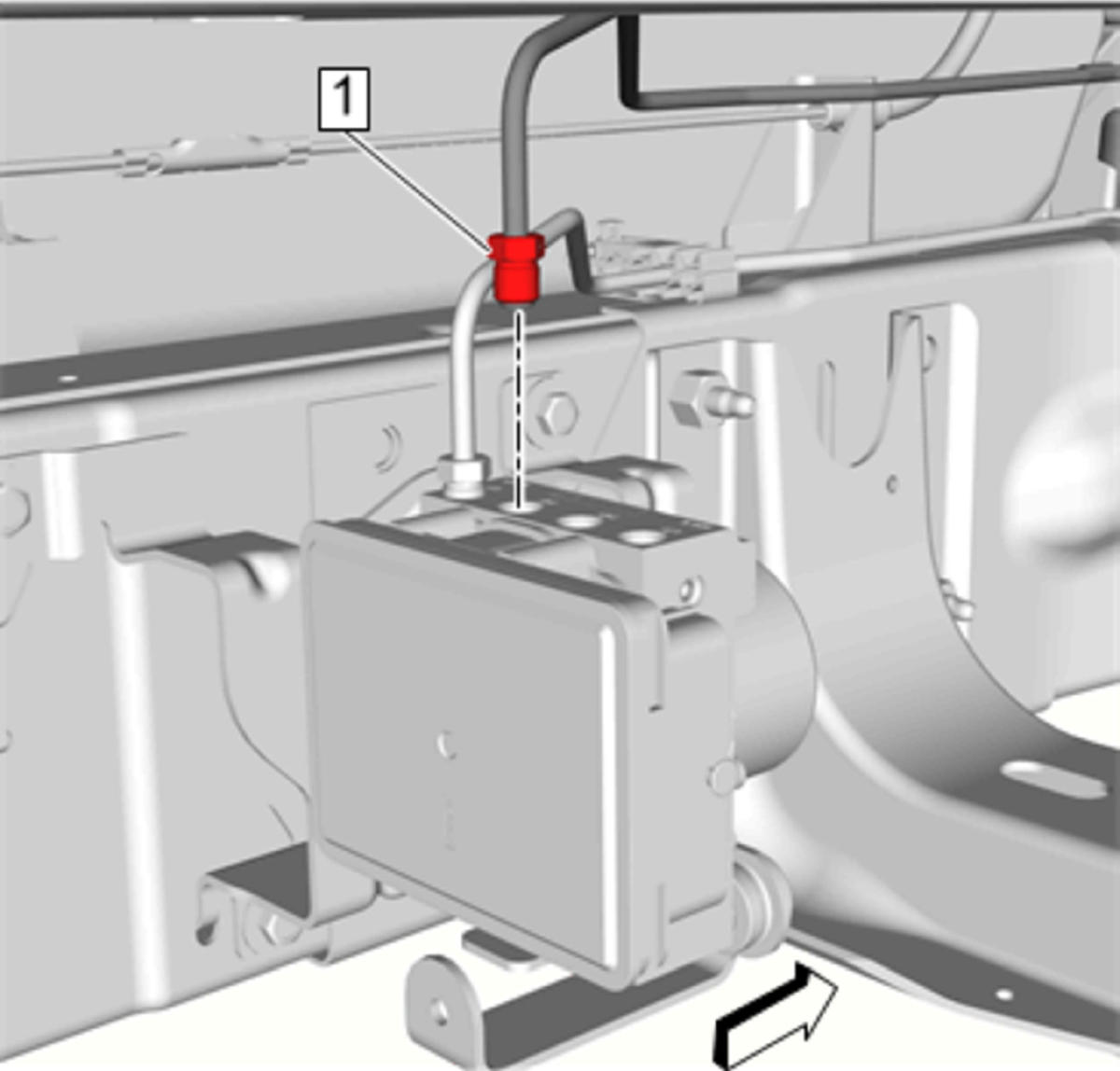

  6. GM4828435Courtesy of GENERAL MOTORS COMPANY

    Right Front Brake Pipe Fitting (1) - Install and tighten 28 N.m (21 lb ft)

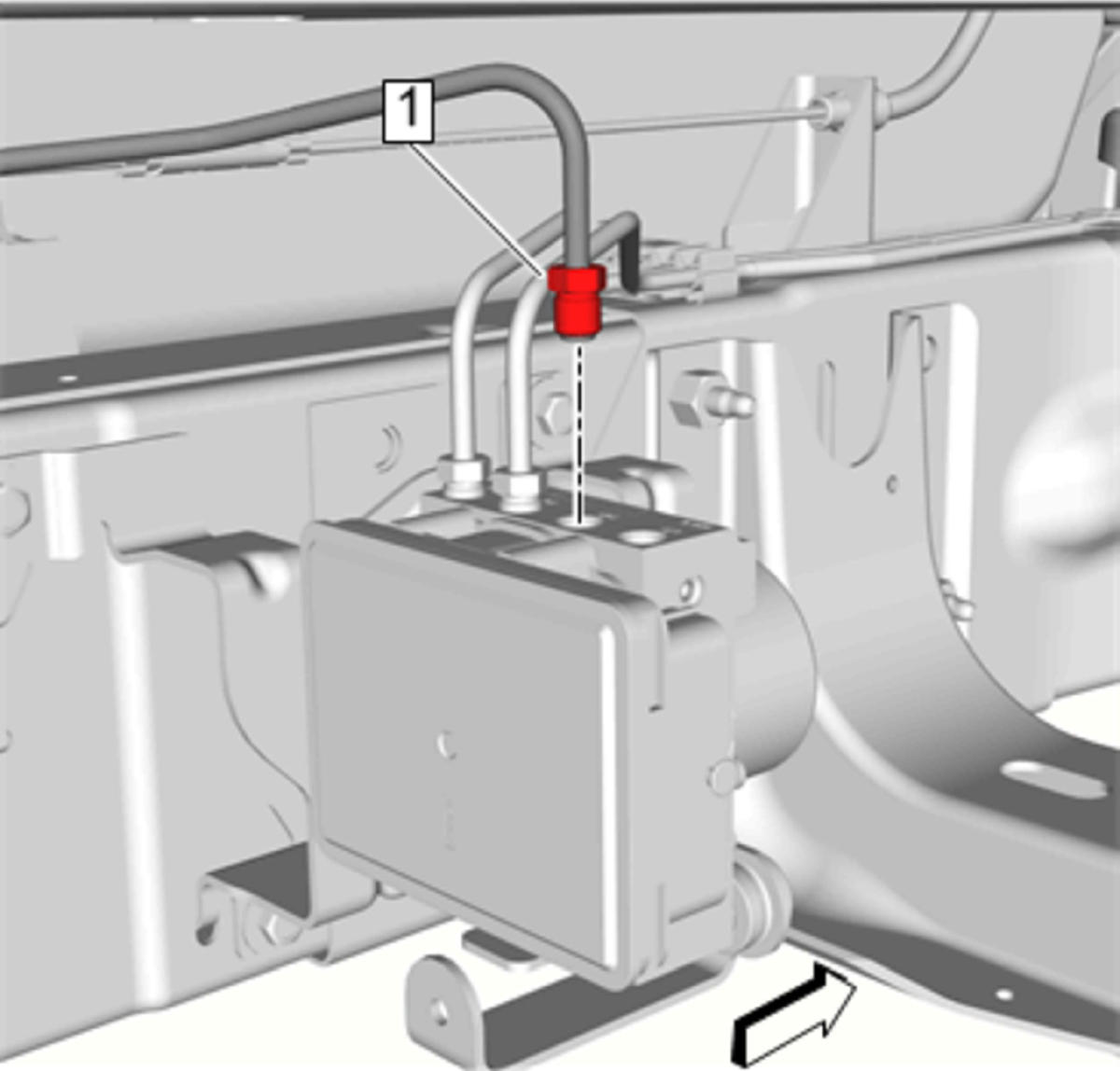

  7. GM4828433Courtesy of GENERAL MOTORS COMPANY

    Right Rear Brake Pipe Fitting (1) - Install and tighten 28 N.m (21 lb ft)

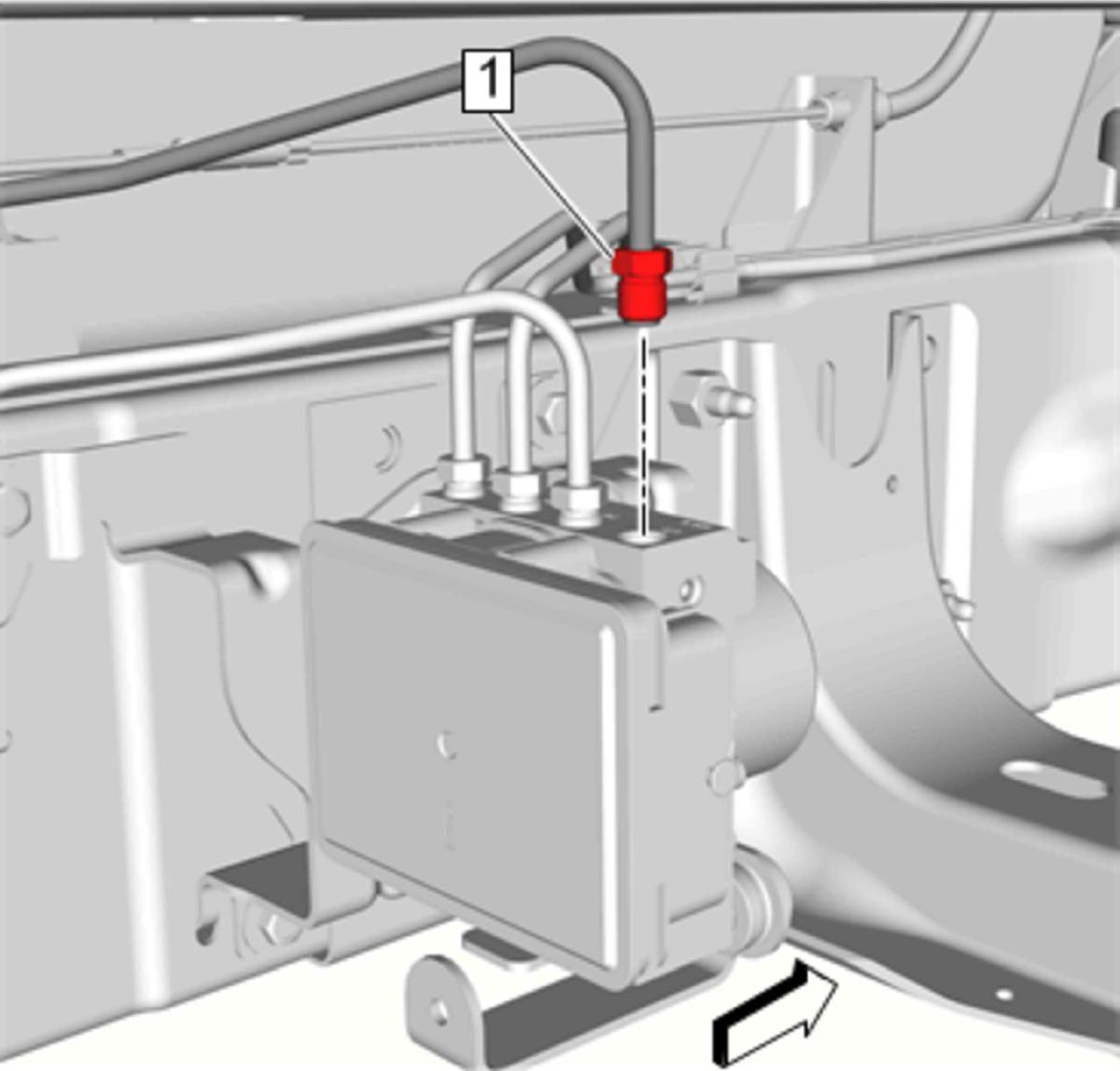

  8. GM4828431Courtesy of GENERAL MOTORS COMPANY

    Left Rear Brake Pipe Fitting (1) - Install and tighten 28 N.m (21 lb ft)

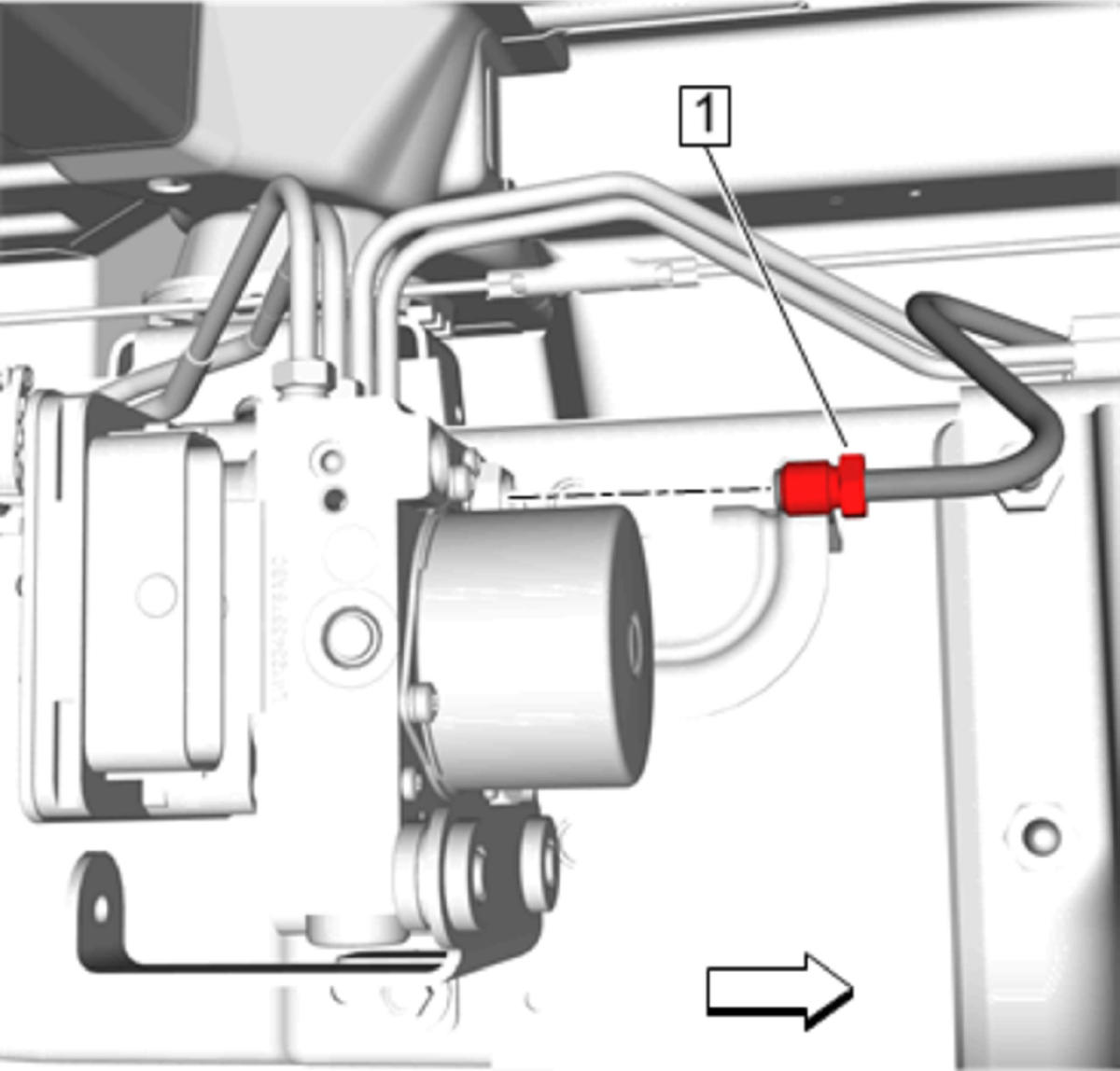

  9. GM4828430Courtesy of GENERAL MOTORS COMPANY

    Master Cylinder Primary Brake Pipe Fitting (1) - Install and tighten 40 N.m (30 lb ft)

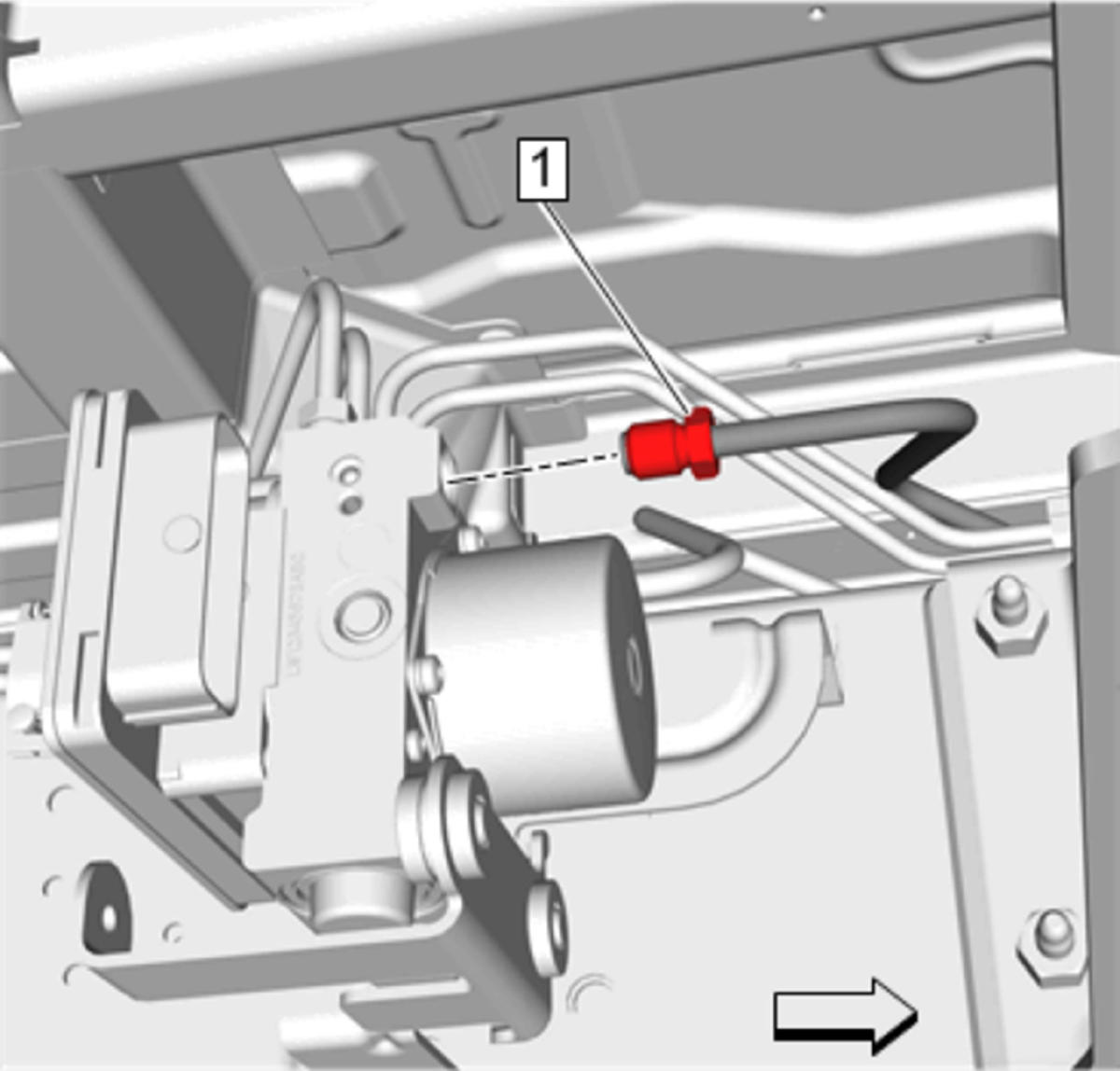

  10. GM4828429Courtesy of GENERAL MOTORS COMPANY

    Master Cylinder Secondary Brake Pipe Fitting (1) - Install and tighten 40 N.m (30 lb ft)

  11. GM4828426Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Electronic Brake Control Module - Connect

  12. Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
