Theft Deterrent Module Replacement

Courtesy of GENERAL MOTORS COMPANY

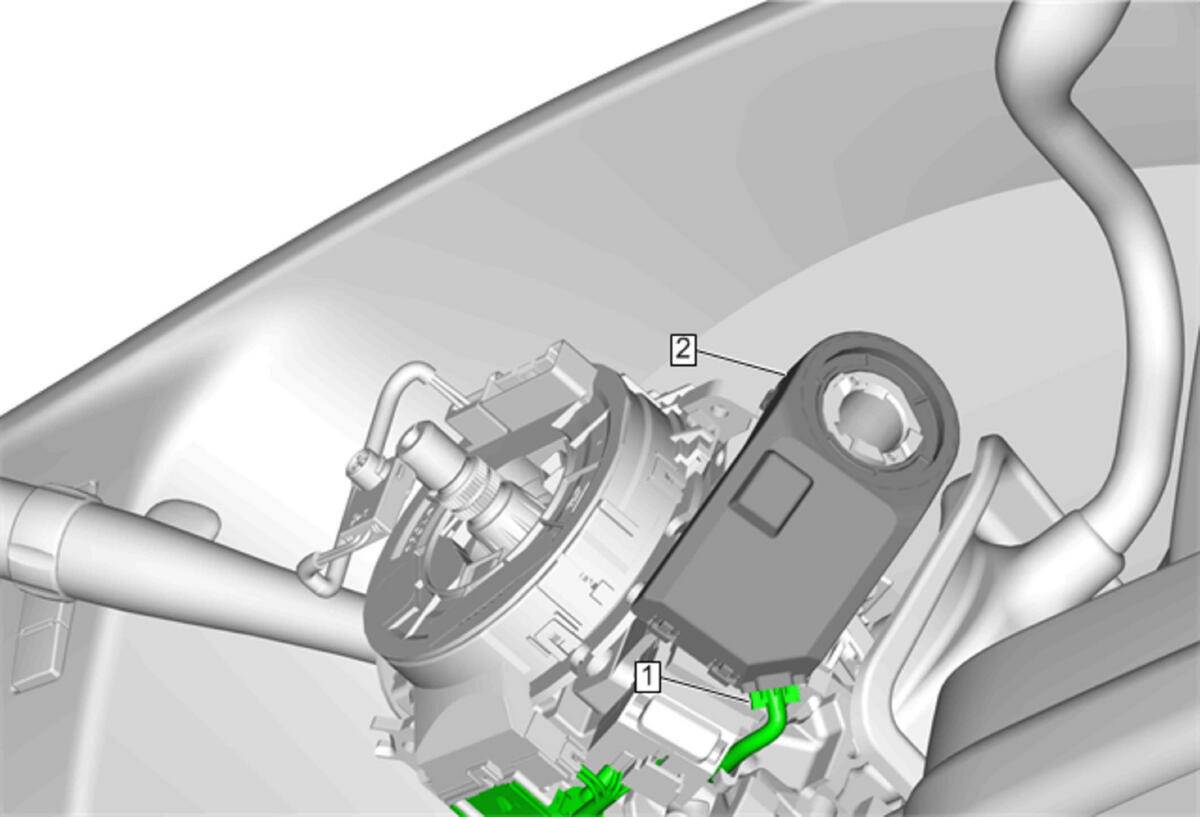

Callout	Component Name
Preliminary Procedure Ignition Lock Cylinder Replacement
1	Electrical Connector
2	Theft Deterrent Module Procedure Release the retaining tabs and remove the theft deterrent module from the ignition lock cylinder case. Program the theft deterrent system. Control Module References

Callout

Component Name

Electrical Connector

Theft Deterrent Module

Procedure

Release the retaining tabs and remove the theft deterrent module from the ignition lock cylinder case.
Program the theft deterrent system. Control Module References
