Removal Procedure

CAUTION:

Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.

Place the ignition switch in the OFF position,
Raise and support the vehicle. Lifting and Jacking the Vehicle
Clean the electronic brake control module and brake pressure modulator valve assembly of any accumulated dirt and debris.
Courtesy of GENERAL MOTORS COMPANY

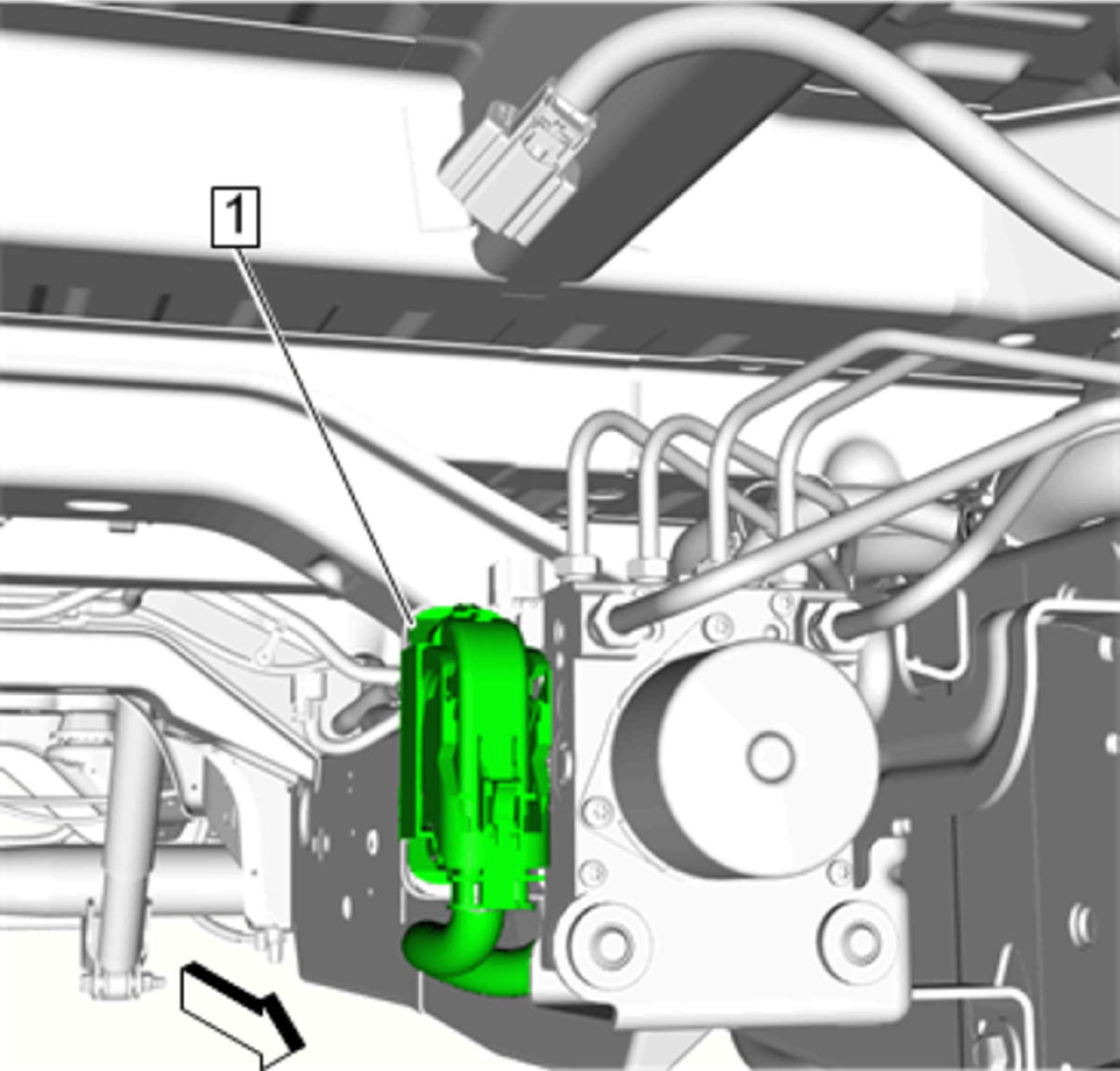

Electrical Connector (1) @ Electronic Brake Control Module - Disconnect
Courtesy of GENERAL MOTORS COMPANY

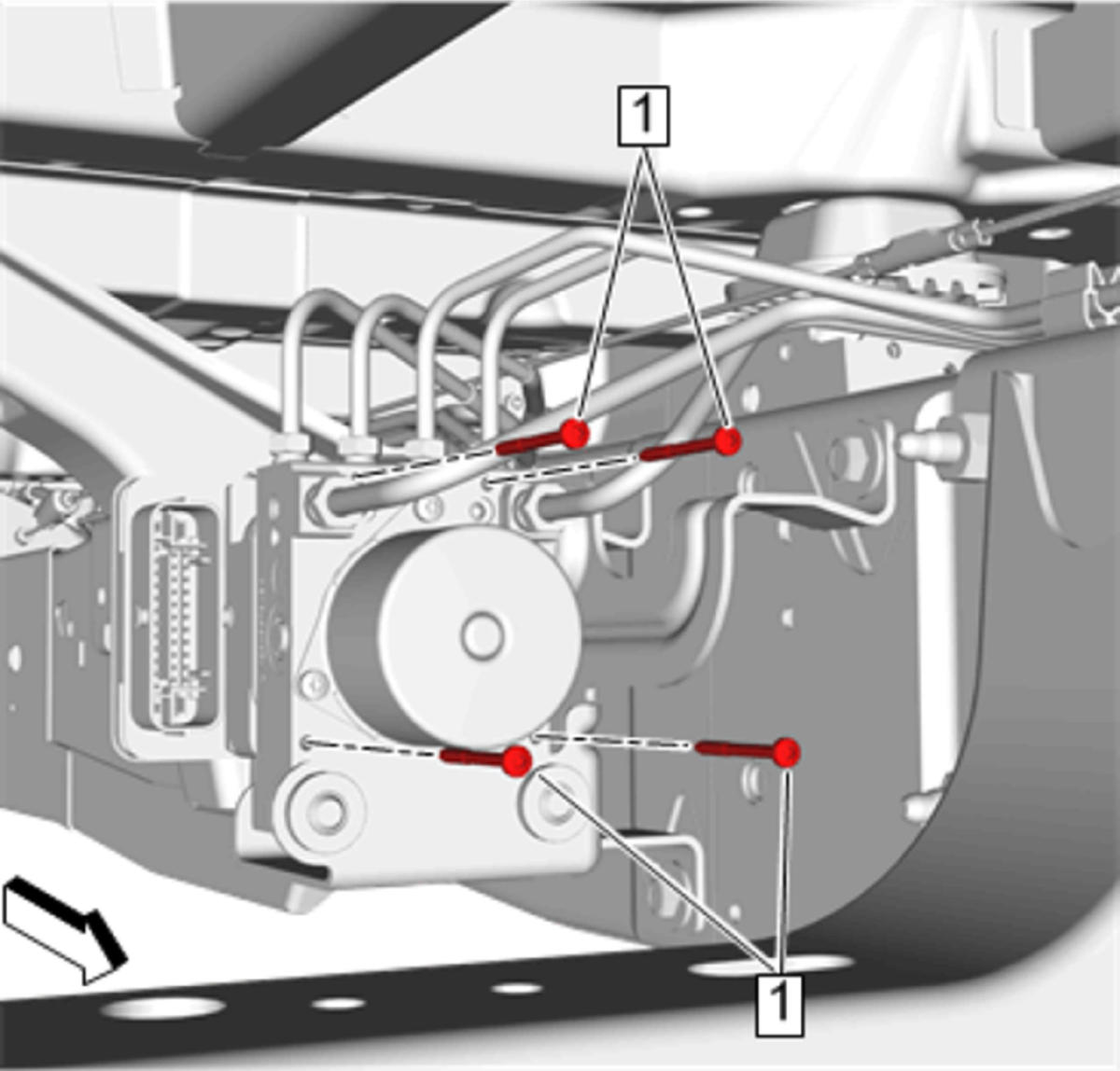

Electronic Brake Control Module Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do NOT lever or pry the components apart.

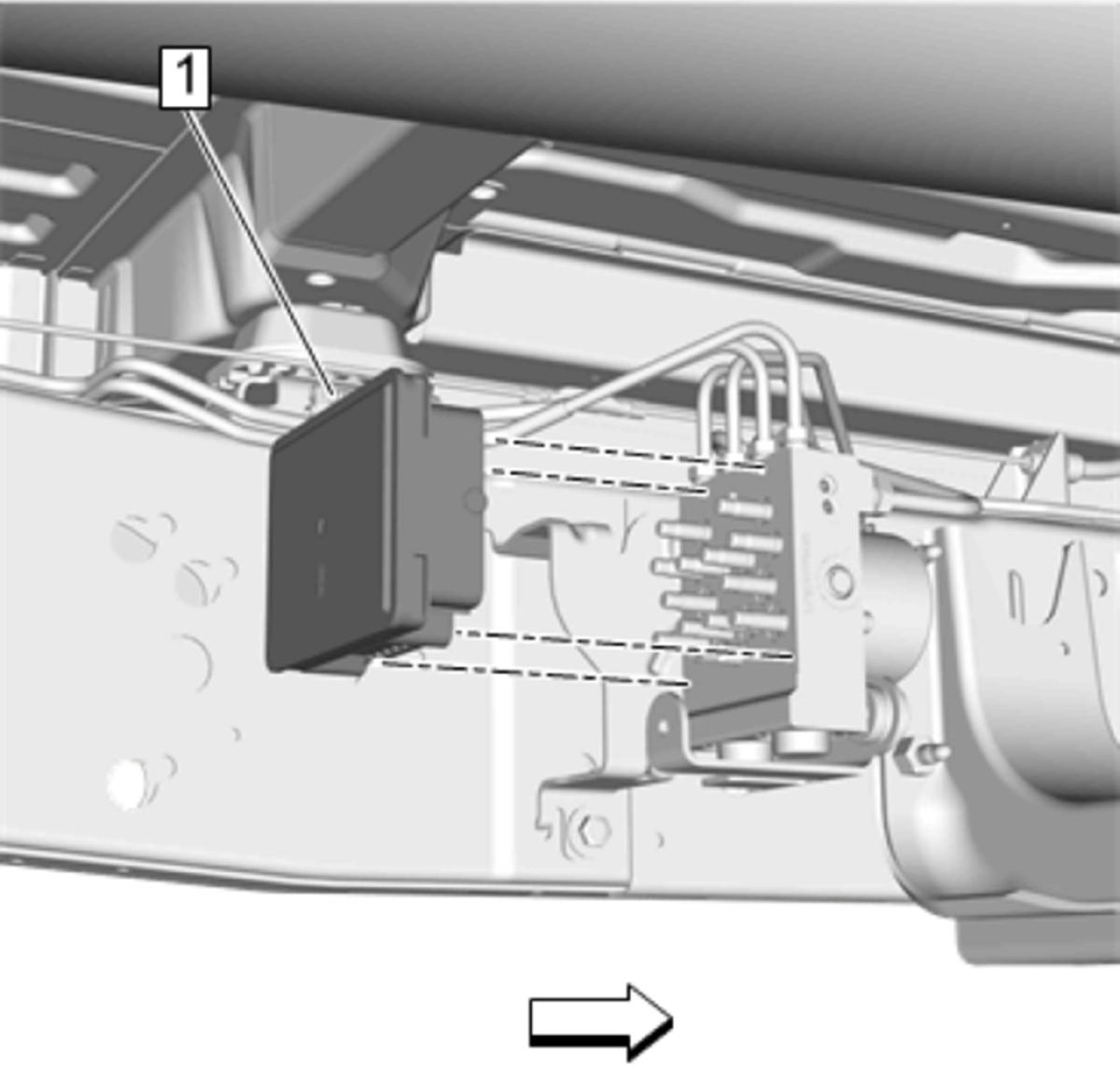

Electronic Brake Control Module (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

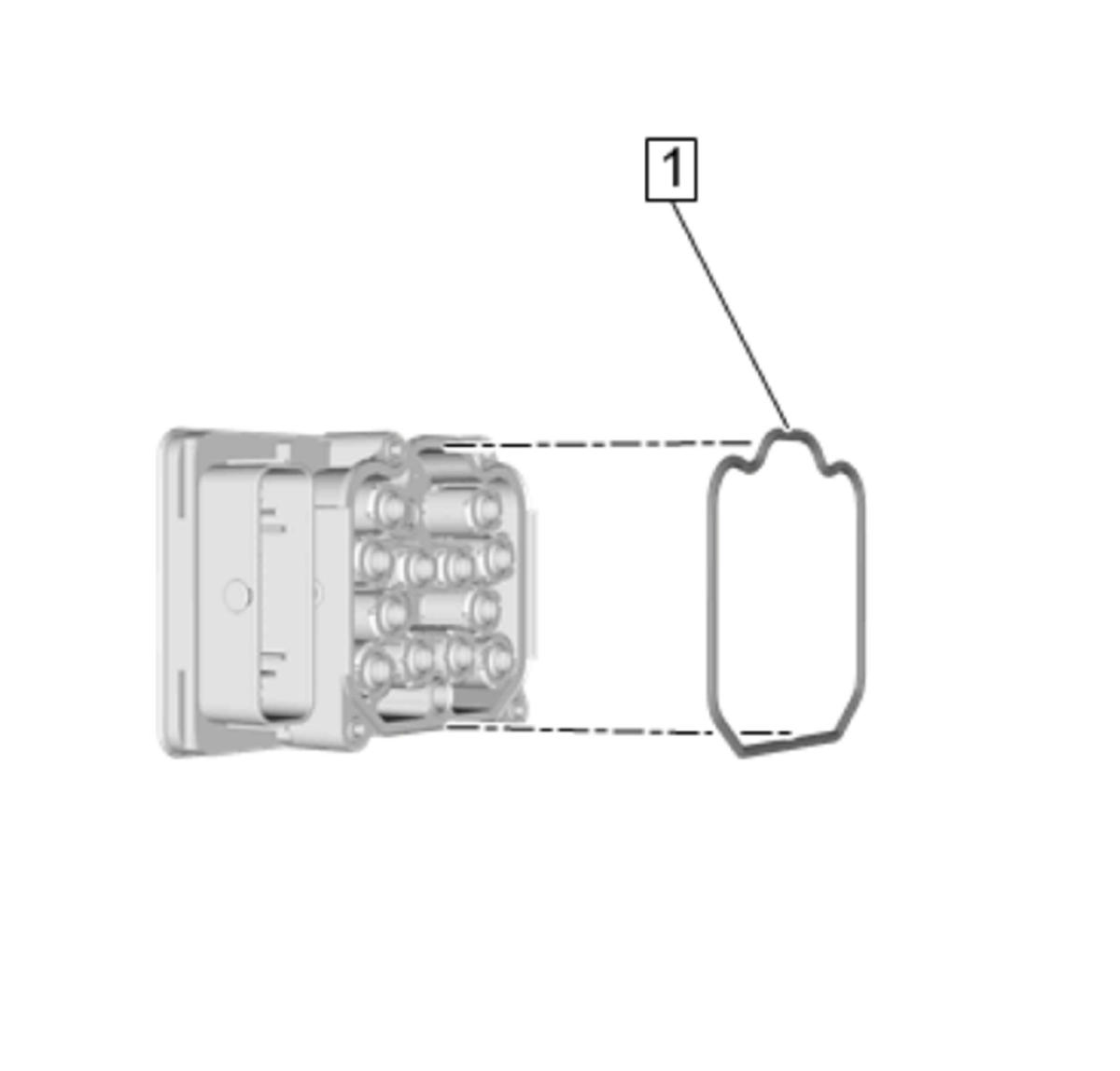

Seal (1) @ Electronic Brake Control Module - Remove
