Installation Procedure

  1. Plug the wheel speed sensor bore to prevent debris from entering the wheel hub and bearing.
  2. Clean the mounting surface on the wheel hub to remove any corrosion and debris.
  3. Apply a light coat of wheel speed anti-corrosion grease to the wheel speed sensor and mounting pad on the wheel hub and bearing assembly. Adhesives, Fluids, Lubricants, and Sealers
  4. Remove the plug from the wheel speed sensor bore.

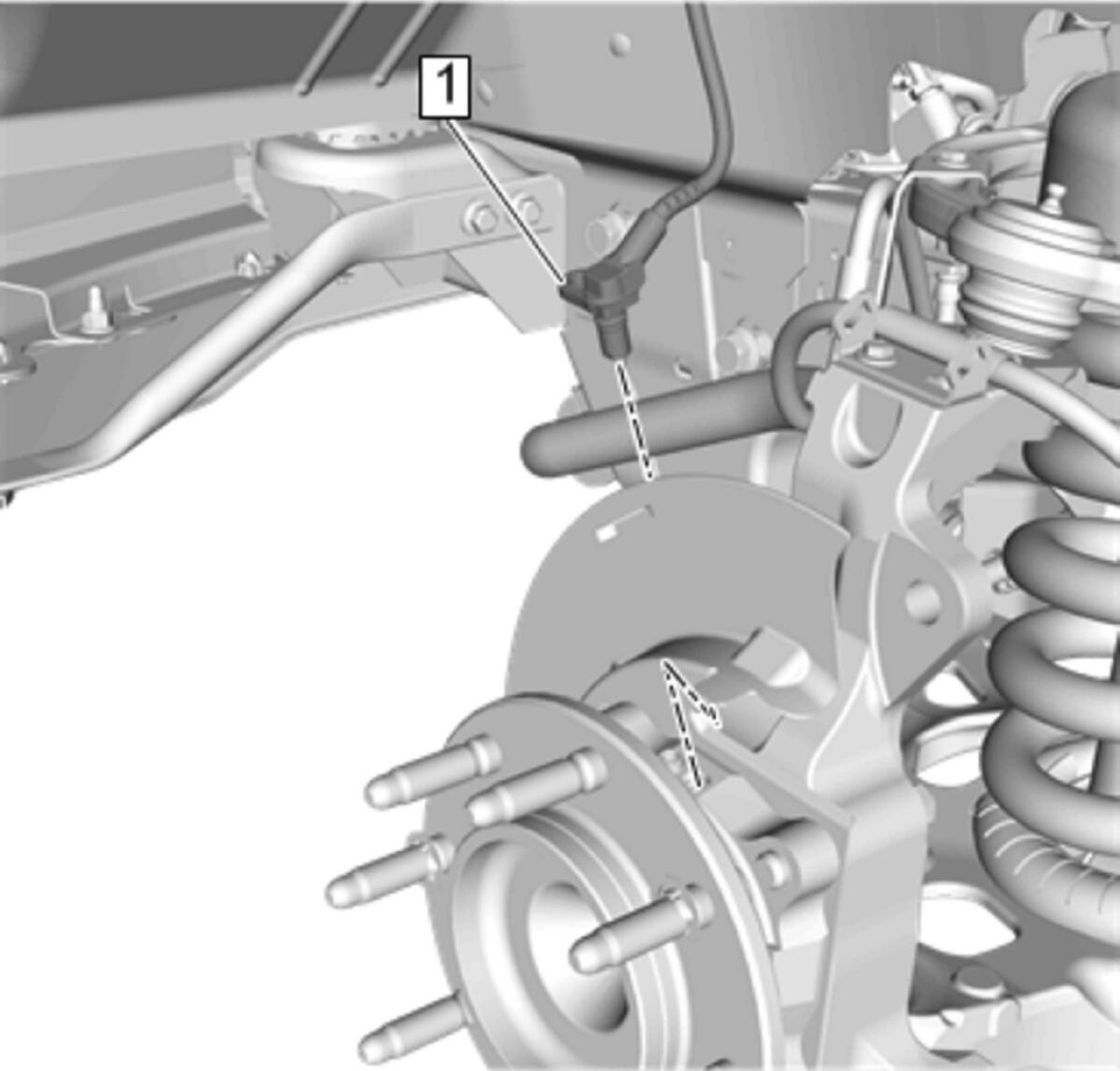

  5. GM4828452Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor (1) - Install

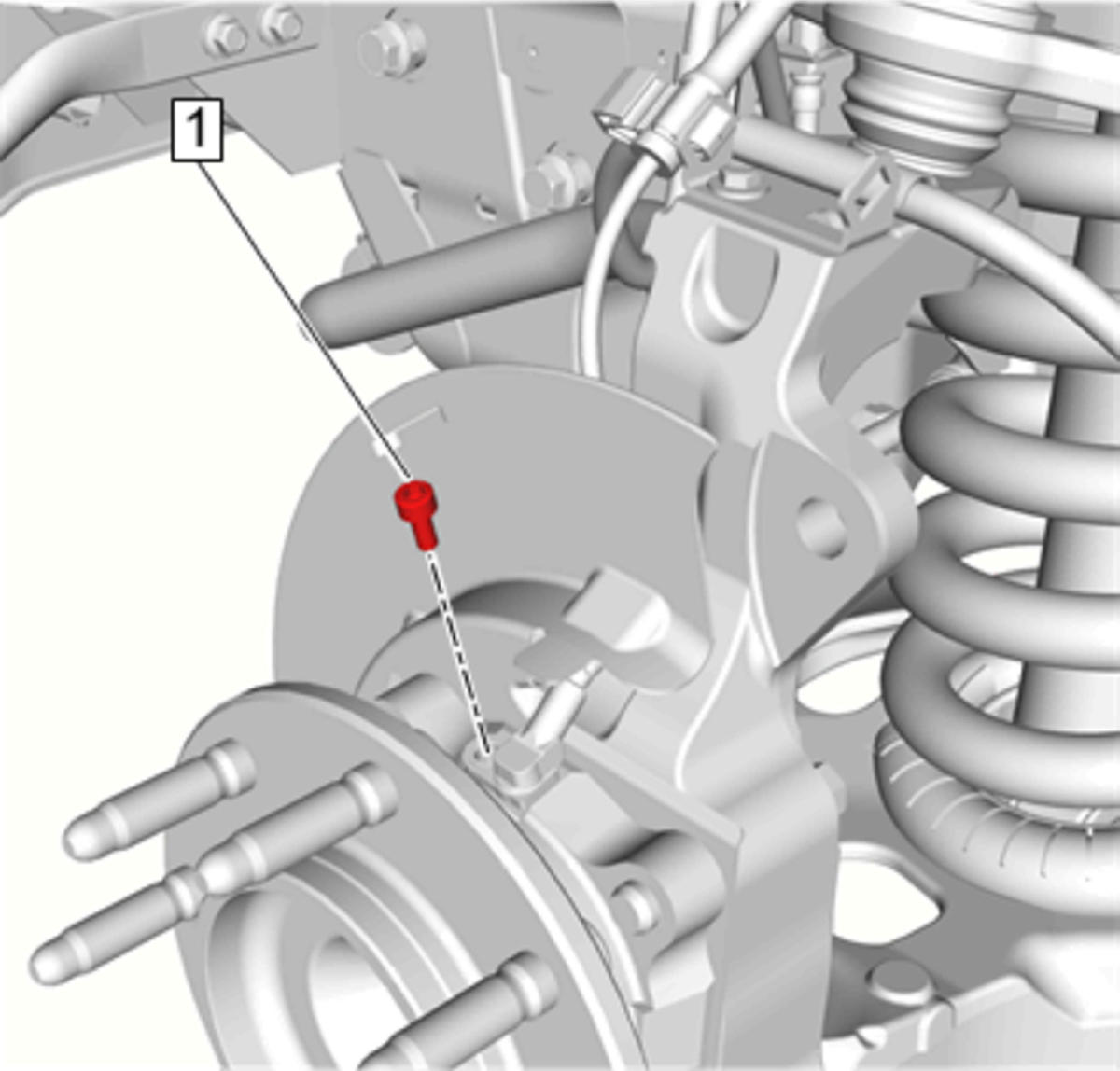

  6. GM4828451Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Wheel Speed Sensor Bolt (1) - Install and tighten 18 N.m (13 lb ft)

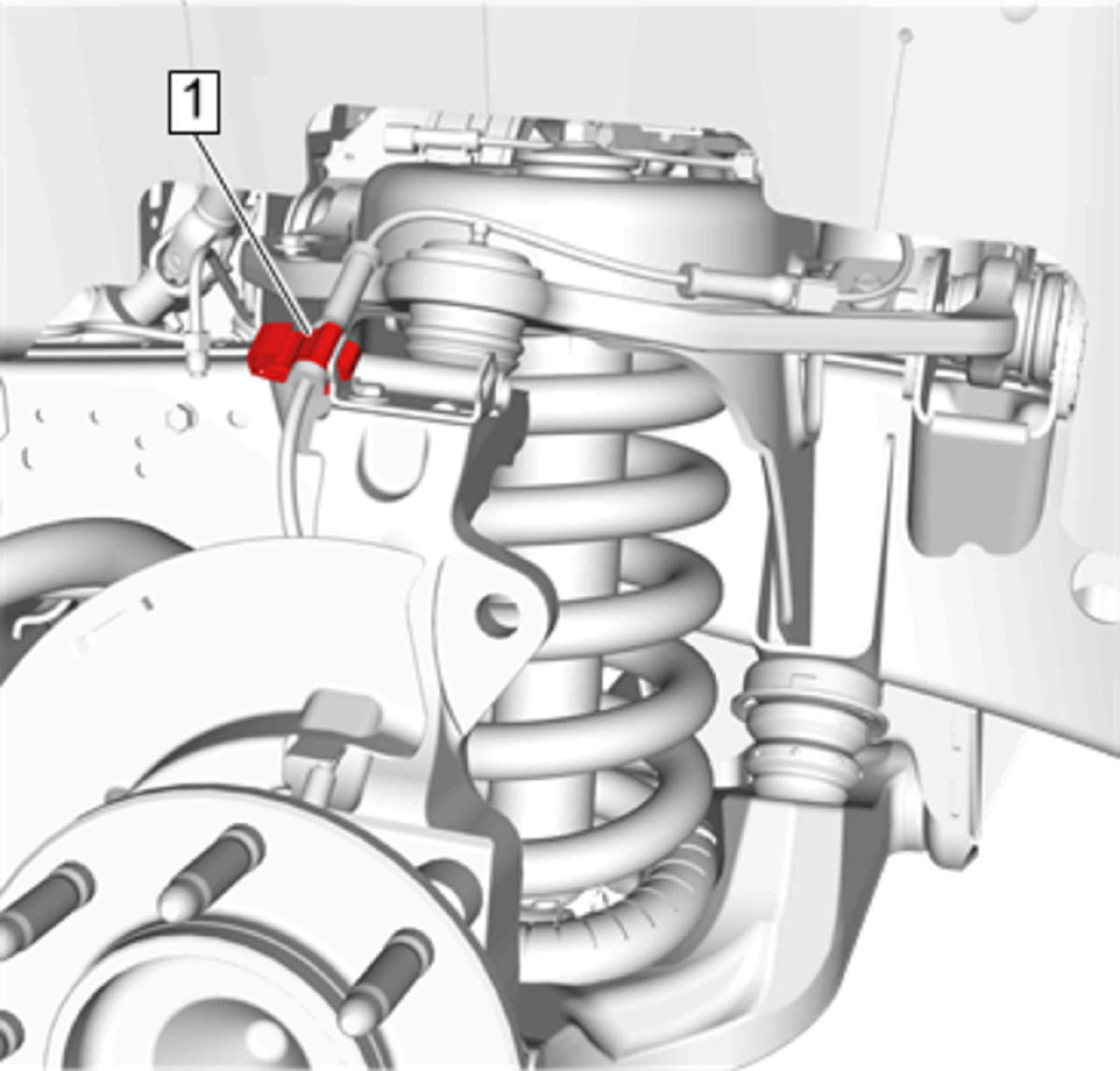

  7. GM4828449Courtesy of GENERAL MOTORS COMPANY

    Clip (1) - Secure

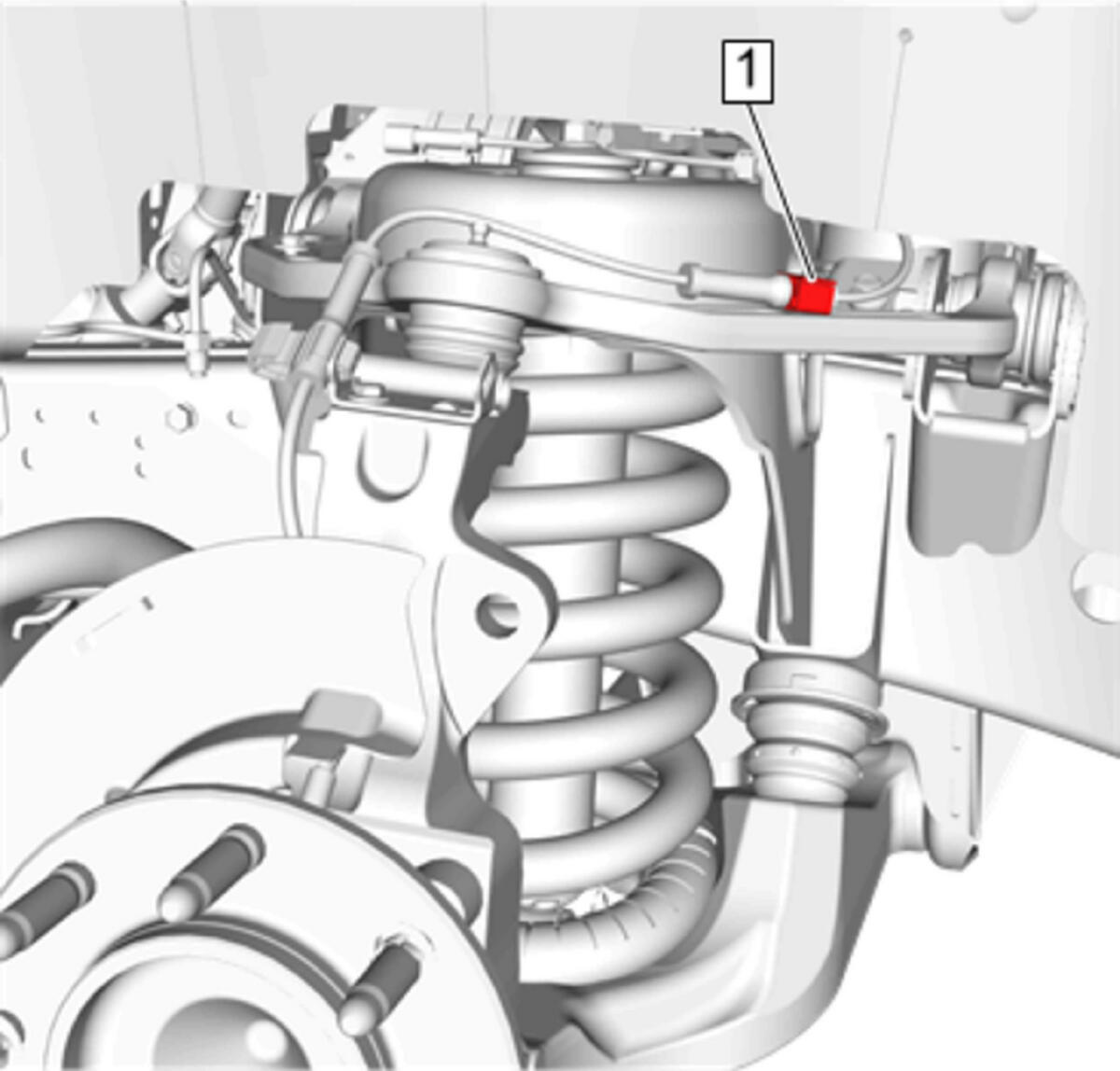

  8. GM4828448Courtesy of GENERAL MOTORS COMPANY

    Clip (1) - Secure

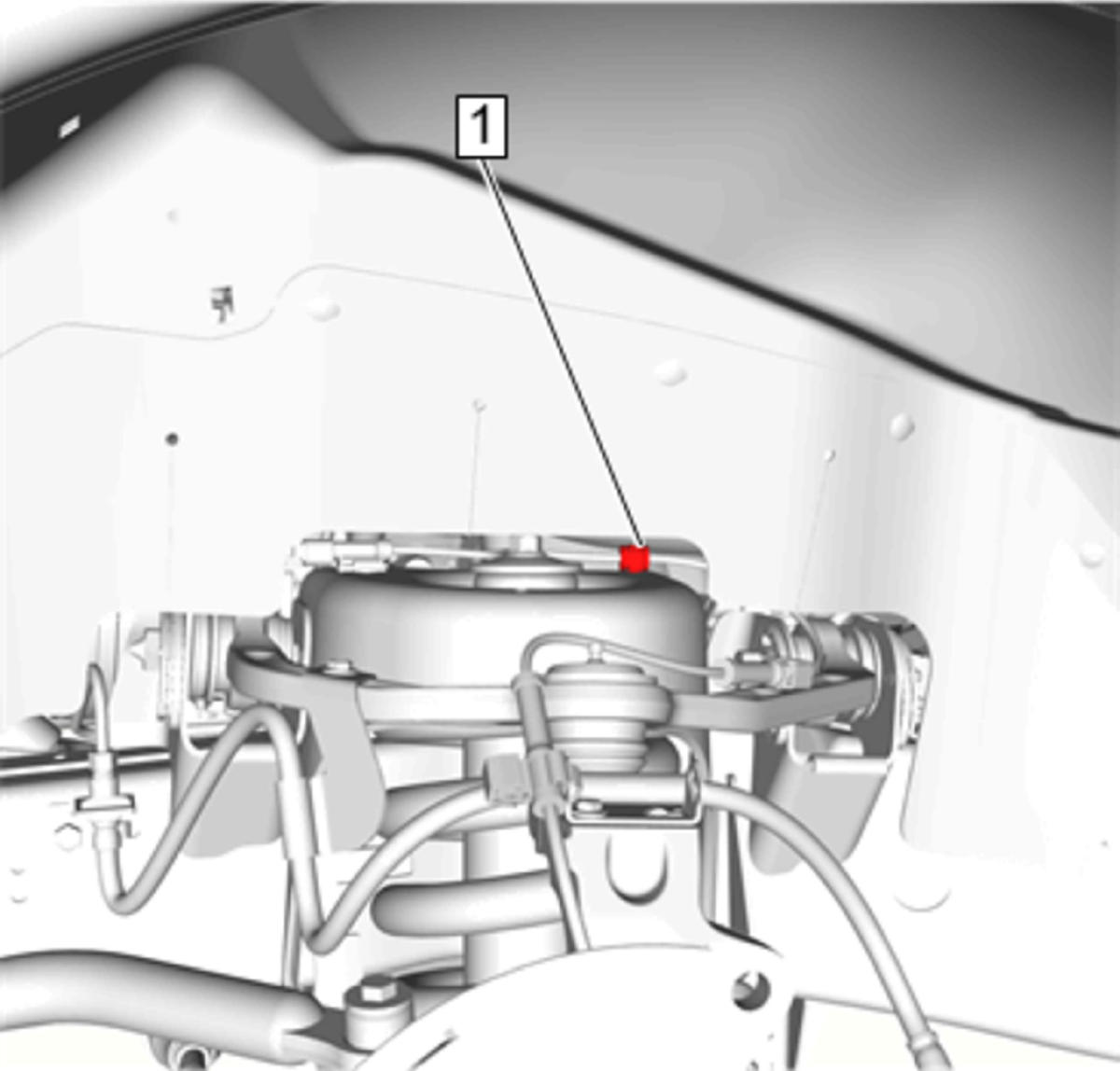

  9. GM4828447Courtesy of GENERAL MOTORS COMPANY

    Clip (1) - Secure

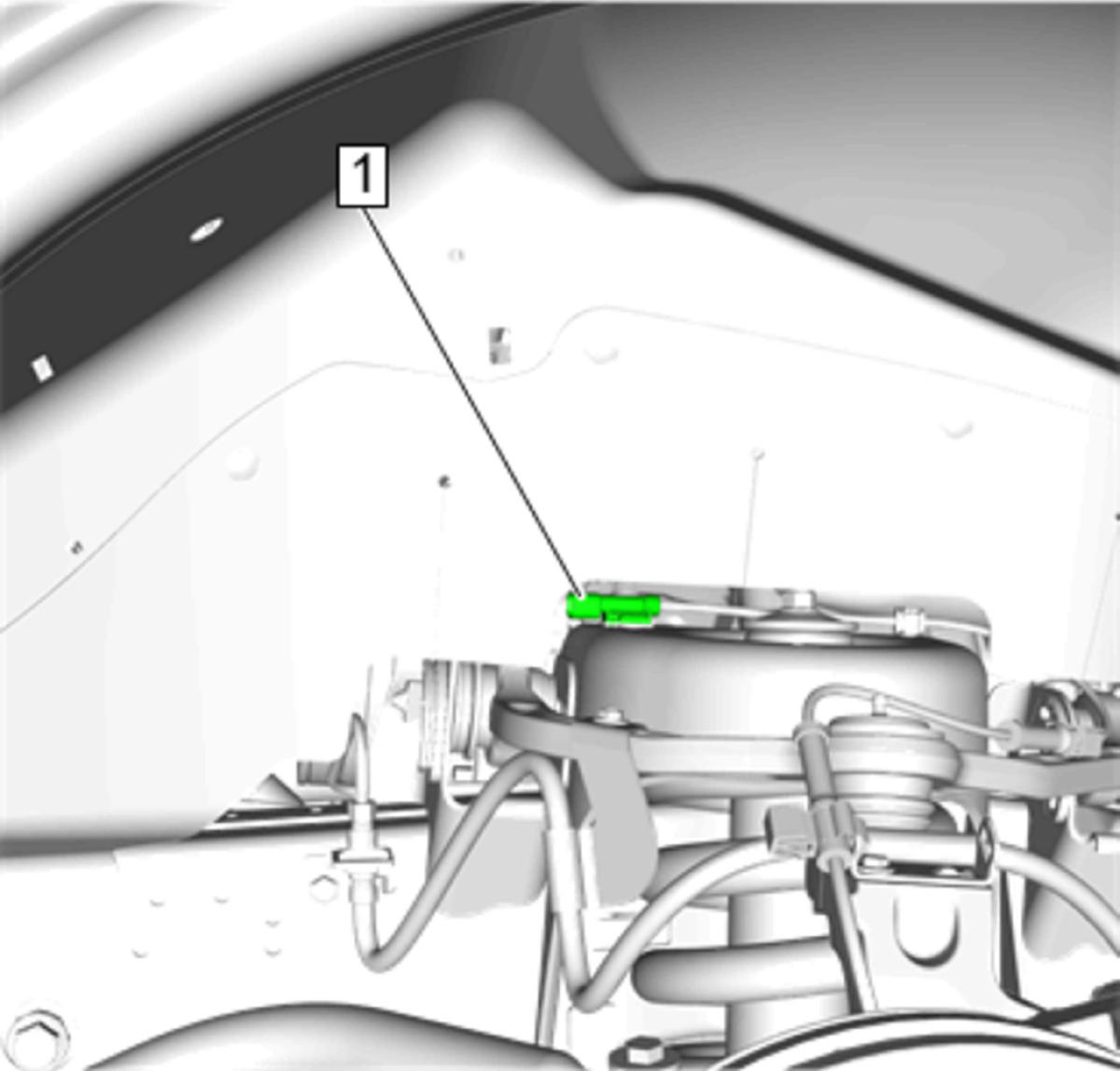

  10. GM4828444Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

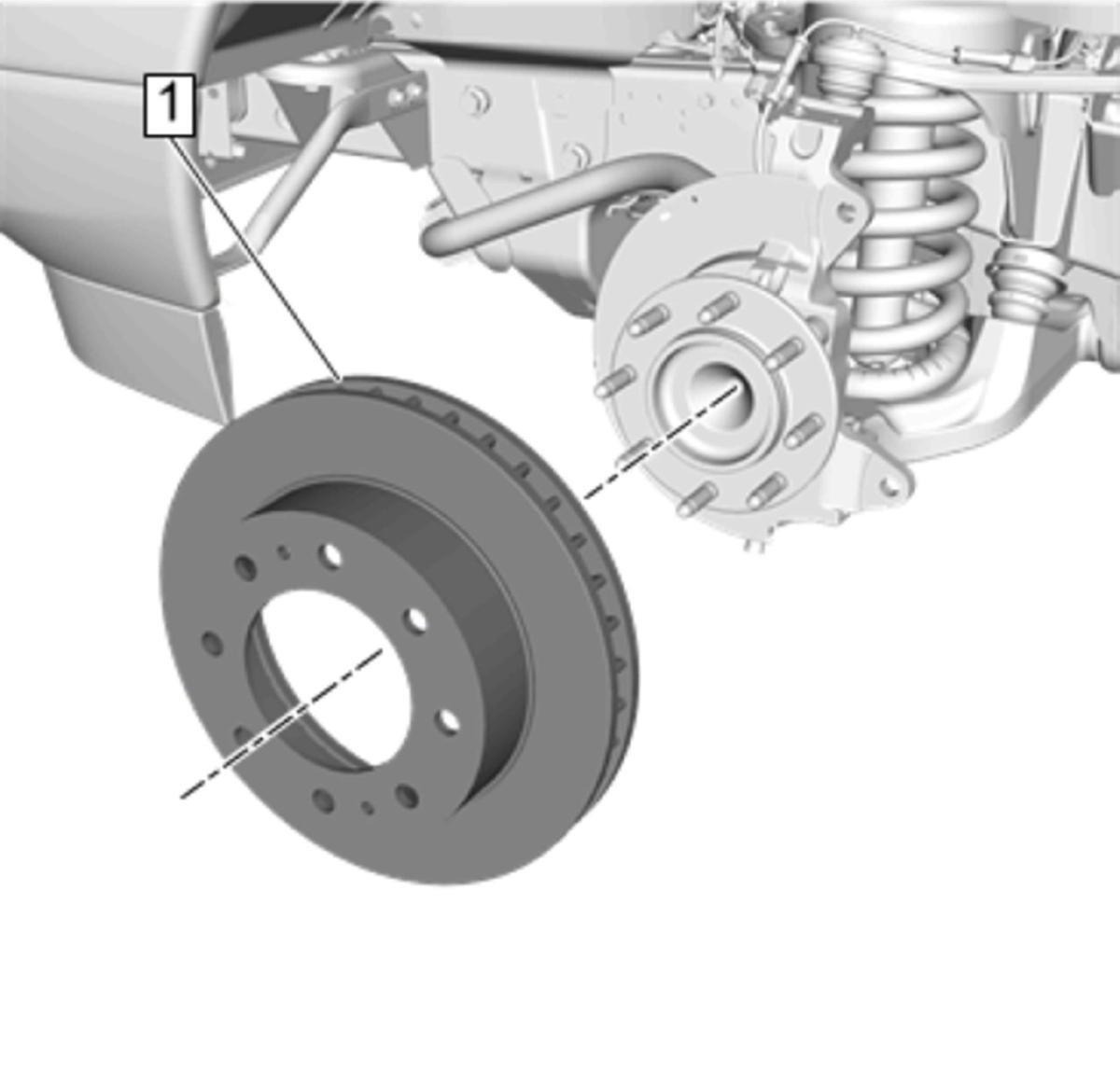

  11. GM4829375Courtesy of GENERAL MOTORS COMPANY

    Front Brake Rotor (1) - Install - Front Brake Rotor Replacement (JH6) , or Front Brake Rotor Replacement (JH9)

  12. Install the tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
  13. Perform the diagnostic system check. Diagnostic System Check - Vehicle
