Installation Procedure

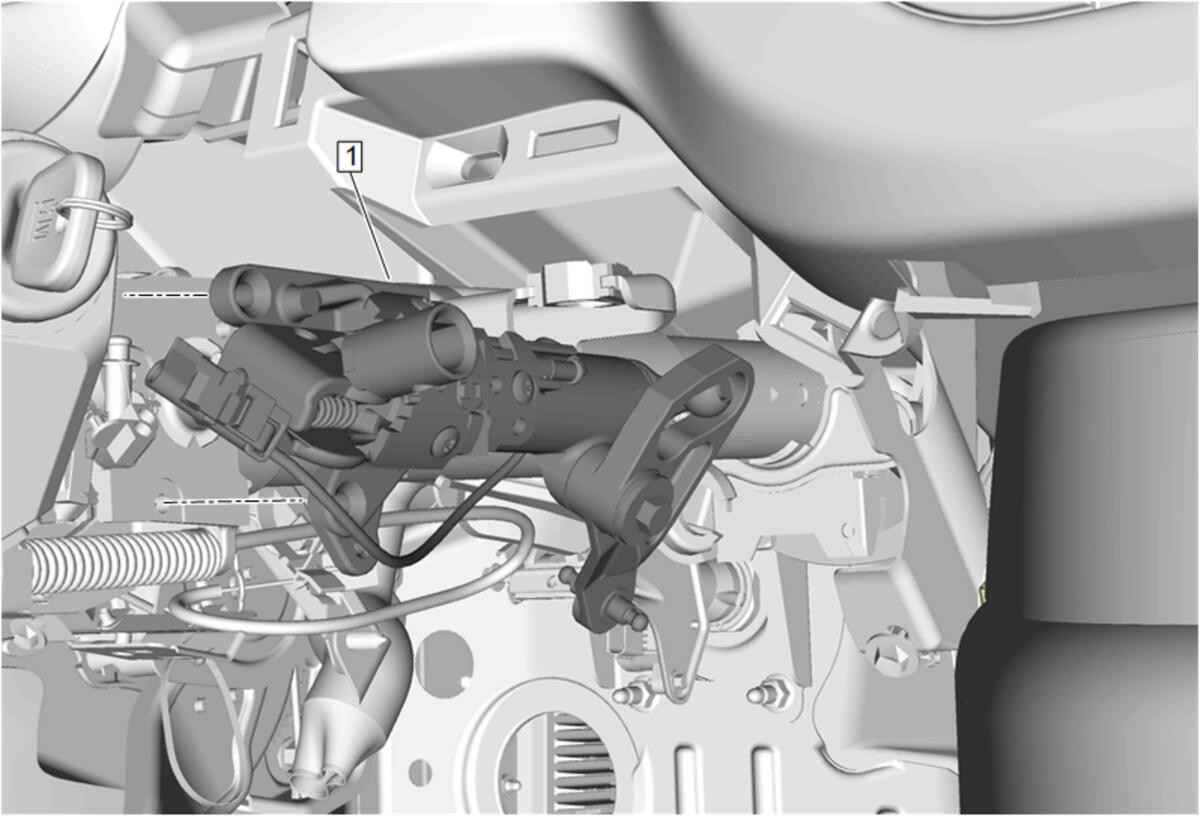

  1. GM5129497Courtesy of GENERAL MOTORS COMPANY

    Transmission Control (1) - Install

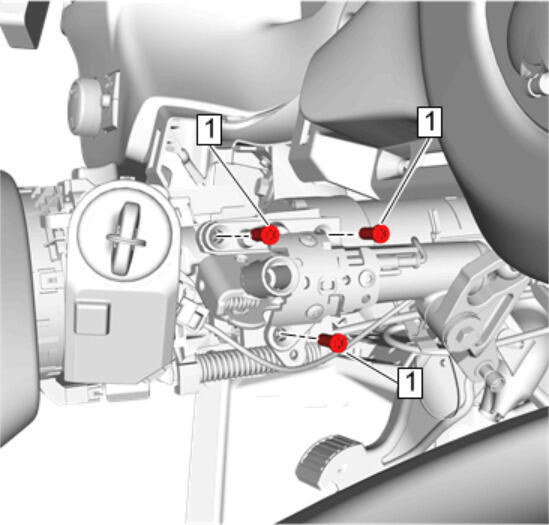

  2. GM4903198Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution .

    Transmission Control Bolt (1) - Install and tighten [3x] 13 N.m (115 lb in)

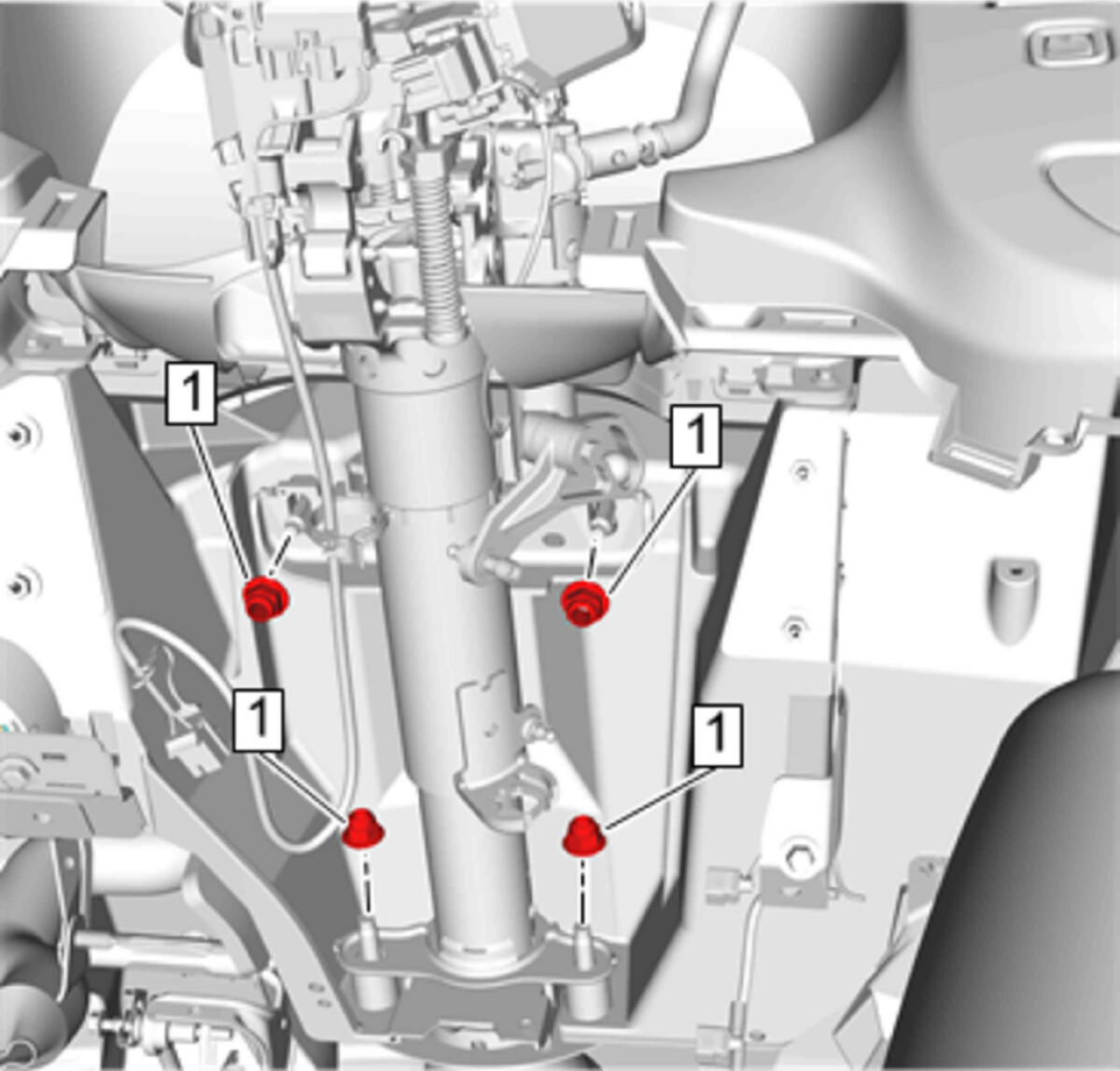

  3. GM4903197Courtesy of GENERAL MOTORS COMPANY

    Install the steering column.

  4. Steering Column Nut (1) - Install [4x] - Steering Column Replacement
  5. Automatic Transmission Shift Lock Control Actuator @ Transmission Control - Connect - Automatic Transmission Shift Lock Control Actuator Replacement
  6. Range Selector Lever Cable @ Transmission Control - Connect - Range Selector Lever Cable Replacement

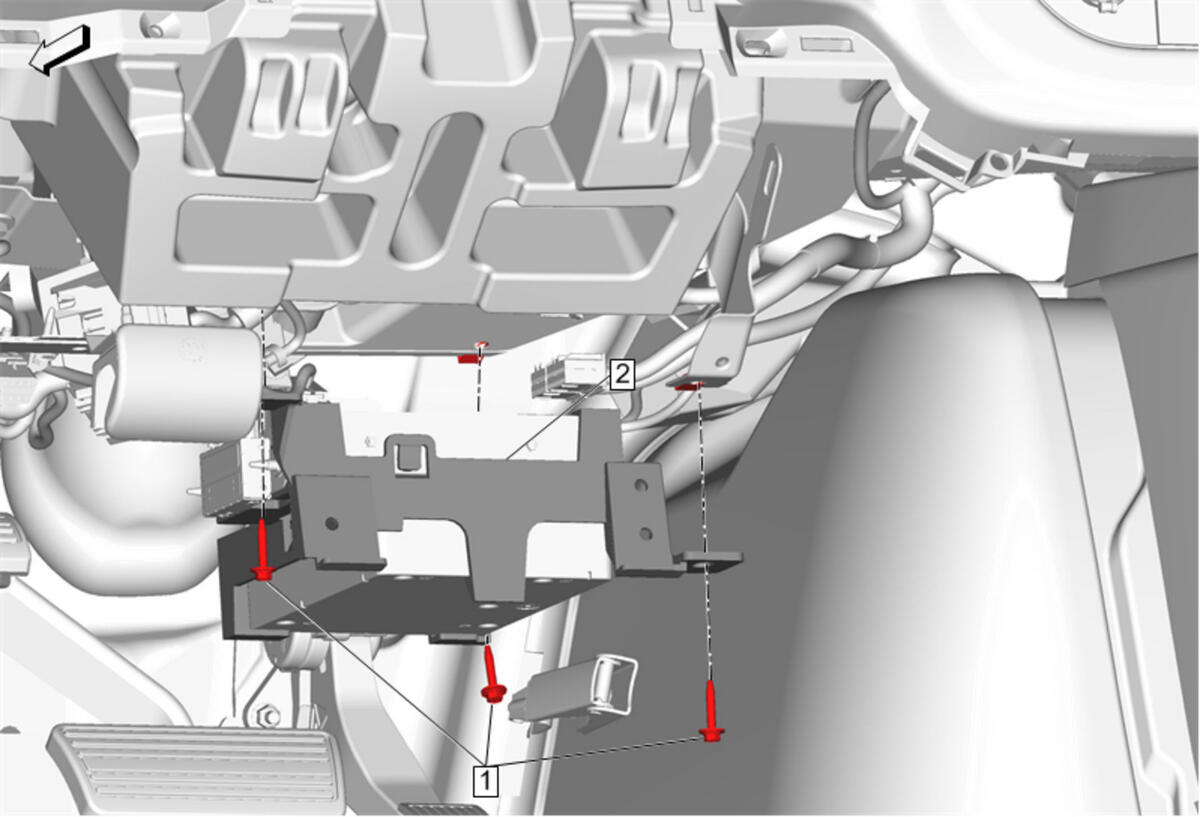

  7. GM4840170Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Bracket (2) - Install - Communication Interface Module Bracket Replacement

  8. Shift Lever - Install - Shift Lever Replacement
  9. Place the transmission control in the Park position.

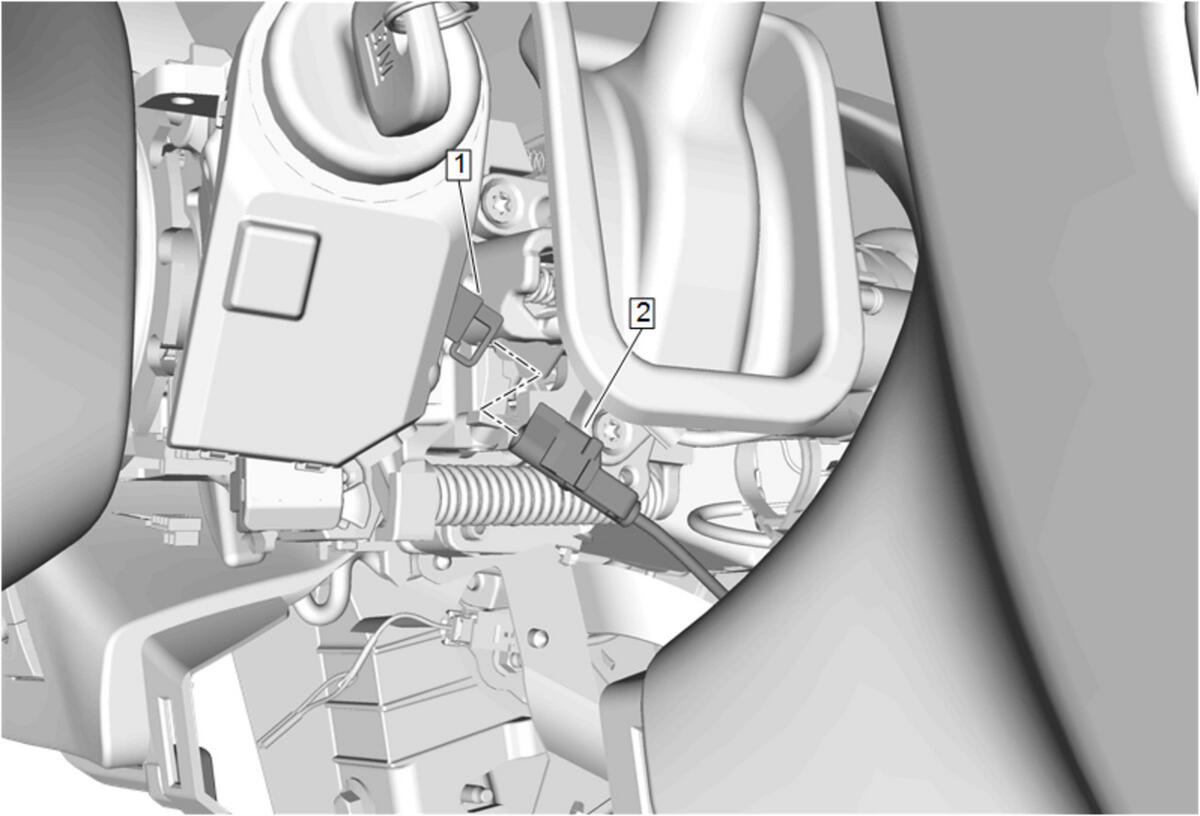

  10. GM5129471Courtesy of GENERAL MOTORS COMPANY

    Connect the park lock cable (2) to the ignition switch housing (1).

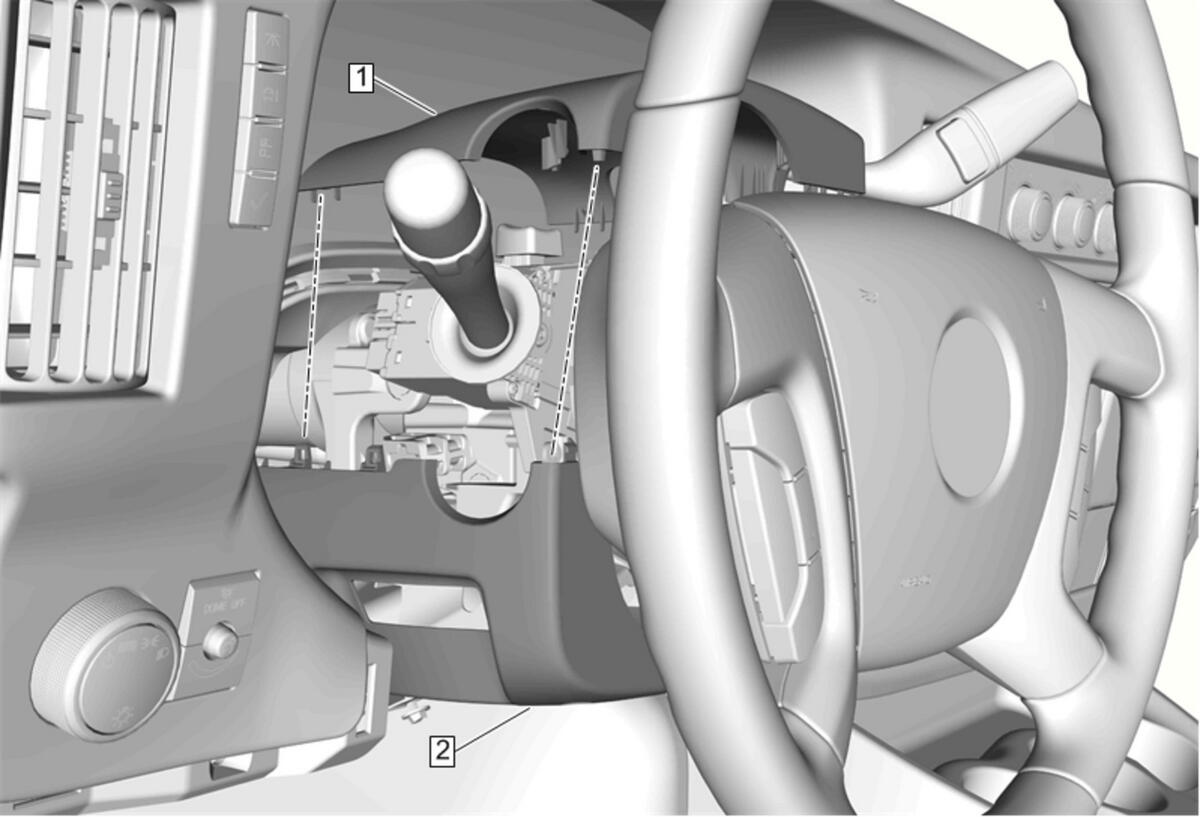

  11. GM4898437Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover (2) - Install - Steering Column Trim Cover Replacement

  12. Release the parking brake.
